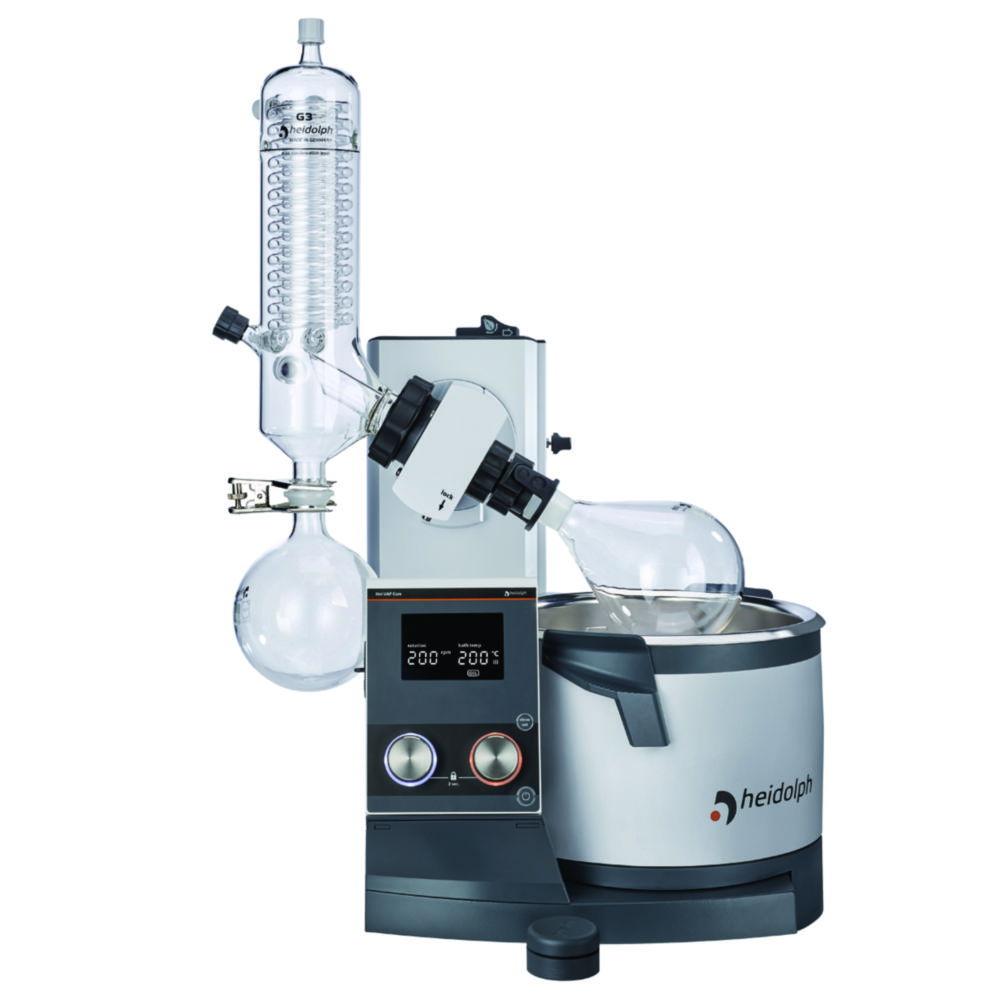

Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL-CH Hand Lift (CH-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL-CH Hand Lift (CH-Plug) is designed for efficient and precise solvent evaporation in laboratory environments. Featuring a robust hand lift mechanism and Swiss-compatible CH-Plug, this system ensures seamless operation across a wide range of applications, including distillation and concentration. Its high-volume G3 XL vertical glassware setup makes it ideal for demanding laboratory workflows that require consistent and reproducible results.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G3 XL-CH with hand lift (CH-Plug)
• Lift Mechanism: Manual hand lift for precise height adjustment
• Glassware Configuration: G3 XL vertical condenser for high-volume distillation tasks
• Display: Clear digital display for real-time monitoring with a separate button to view set values
• Controls: Two independent knobs for rotation speed and heating temperature, featuring LED ring light activity indicators
• Safety: Activated lock feature prevents unintentional adjustments; residual heat warning above 50 °C
• Design: Ergonomically designed heating bath handles for secure grip
• Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
• Sealing: Grease-free operation with innovative sealing technology
• Ventilation: PTFE inlet ventilation cap without ground joints; optionally available with replenishment valve
• Optional Features: Control panel can be detached and extended for use outside fume hoods via optional cable extension

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

This Heidolph Rotary Evaporator is a reliable and efficient solution for Swiss laboratories requiring precise, high-capacity solvent evaporation. With advanced safety, ergonomic design, and robust performance, it ensures accurate and repeatable results every time.
