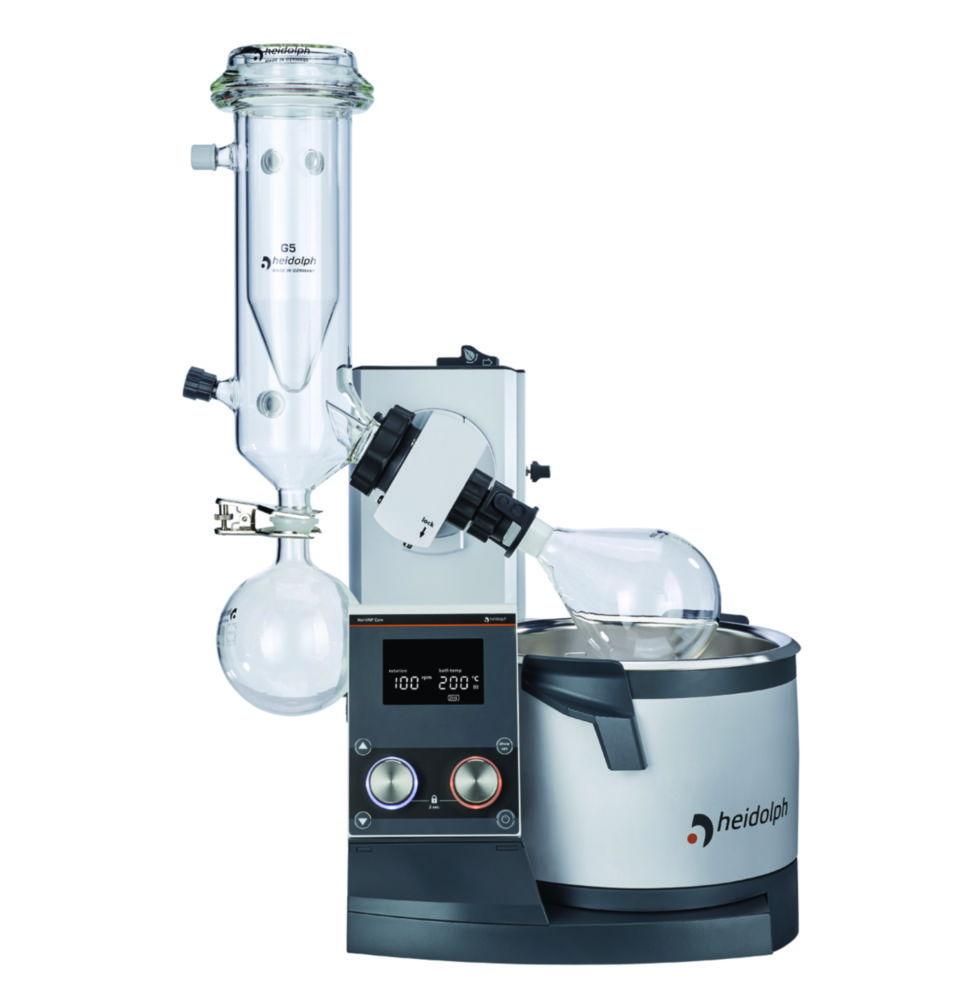

Heidolph Rotary Evaporator Hei-VAP Core ML G5-CH Motor Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
CH

NZ $14020.98

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G5-CH Motor Lift (CH-Plug) is engineered for precise, safe, and efficient solvent evaporation in laboratories. With an integrated motor lift and CH-Plug configuration, this model offers convenient operation and superior reproducibility for evaporation, distillation, and concentration applications. Trusted for reliability and durability, it is ideal for daily use in demanding lab environments.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G5-CH with motor lift (CH-Plug)
  • Application: Perfect for solvent evaporation, distillation, and concentration
  • Lift Mechanism: Motor lift for effortless and accurate adjustment
  • Compatibility: CH-Plug for Swiss-compliant electrical systems
  • Display: Clear digital display for monitoring current values, with separate button to view set values
  • Controls: Two separate knobs for adjusting rotation speed and heating temperature, with LED ring light system indicating activity
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when temperature exceeds 50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath on motor lift models
  • Ergonomics: Heating bath handles are ergonomically optimized for a secure grip
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation enabled by innovative sealing technology
  • Ventilation Cap: PTFE inlet and free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Detachable operating panel for use outside closed fume hoods; optional cable extension

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator provides high-quality, automated evaporation functionality to support reliable results in scientific and industrial laboratories.
