What Is a Laboratory Mortar and Pestle Used For? Materials and Applications

A laboratory mortar and pestle is a simple but highly useful tool for crushing, grinding, blending and homogenising small samples. The mortar holds the material, while the pestle applies pressure and friction to break it into smaller particles or combine it into a more uniform mixture.

Mortars and pestles are used throughout New Zealand laboratories, universities, schools, pharmacies, food facilities and industrial testing environments. Available materials include porcelain, agate, glass, stainless steel and alumina, with each offering different benefits for grinding performance, chemical resistance and contamination control.

The correct choice depends on more than capacity. Sample hardness, the elements being analysed, the required cleanliness and the intended grinding method can all affect results. This guide explains the main uses of laboratory mortars and pestles, compares common materials and outlines how to select, use and care for the right set.

What Is a Laboratory Mortar and Pestle?

A laboratory mortar and pestle has two matching components:

Mortar: a bowl-shaped vessel that contains the sample during processing.
Pestle: a rounded handheld implement used to press and move the sample against the mortar's inner surface.

Particle reduction occurs through compression, friction and, in some applications, light impact. Rough grinding surfaces create more friction and are effective for dry, brittle materials. Smooth or polished surfaces retain less material and can be easier to clean, making them useful for pastes, liquids and purity-sensitive work.

Manual grinding is particularly suited to small sample quantities because it gives the operator direct control over pressure, speed and texture. Larger batches, very hard samples or methods requiring a repeatable particle-size distribution are generally better handled with a laboratory mill.

What Is a Laboratory Mortar and Pestle Used For?

The main purpose of a mortar and pestle is to reduce or combine a sample before analysis, dissolution, mixing or another preparation step.

Typical laboratory uses include:

Crushing tablets, crystals, granules and other brittle solids
Reducing chemicals and dried samples to a fine powder
Mixing powdered ingredients until evenly distributed
Breaking apart clumps and compacted powders
Preparing representative samples for testing
Making pastes, creams, suspensions and slurries
Wet grinding with a compatible liquid
Homogenising soft plant tissue or biological material
Preparing small mineral, soil, food and feed samples

Because the process is manual, pressure can be adjusted as the sample changes. Manual grinding also tends to generate less heat than high-speed equipment, which can be helpful for some temperature-sensitive materials.

A mortar and pestle cannot guarantee a precise final particle size. When a method specifies a size range, verify the prepared material with a laboratory test sieve or a suitable particle-size analyser.

Laboratory Mortar and Pestle Materials Compared

Material selection affects grinding efficiency, wear, chemical compatibility, cleaning and the risk that the grinding surface will contaminate the sample.

Material	Common Applications	Key Benefits	Points to Consider
Porcelain	Routine grinding, chemicals, tablets and teaching laboratories	Cost-effective, durable and efficient for brittle samples	Can chip and may contribute ceramic elements to sensitive samples
Agate	High-purity preparation, minerals and analytical samples	Hard, wear-resistant, polished and low in metallic contamination	Higher cost, vulnerable to heavy impact and a possible source of silica
Glass	Soft substances, liquids, pastes and pharmaceutical preparations	Smooth, non-porous, transparent and straightforward to clean	Unsuitable for forceful grinding or hard materials
Stainless steel	Tough, fibrous or dense samples	Strong, long-lasting and resistant to breakage	Can introduce iron, chromium or nickel
Alumina	Hard minerals, ceramics and abrasive powders	High hardness and good resistance to wear	May introduce aluminium and usually costs more than porcelain
Disposable plastic	Cells, tissue and micro-volume biological samples	Convenient, lightweight and available in sterile formats	Not designed for hard or abrasive solids

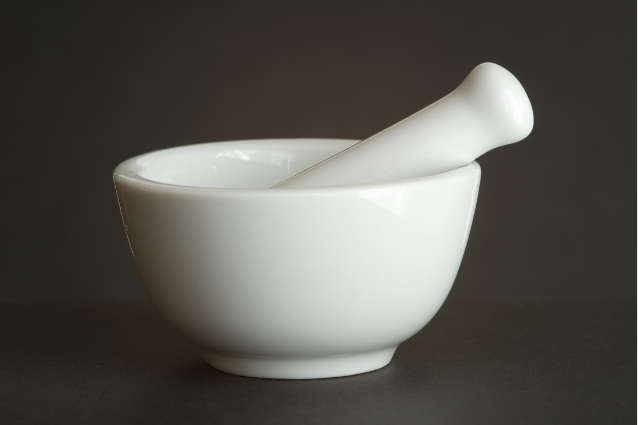

Porcelain Mortars and Pestles

Porcelain is widely used for everyday laboratory grinding. Many porcelain mortars have a glazed exterior and an unglazed inner surface. The textured interior increases friction, allowing tablets, crystals and other brittle substances to be ground efficiently.

Porcelain is a practical choice for general chemistry, pharmaceutical compounding, education, powder blending and routine sample preparation. It is economical and available in many capacities, but it remains brittle. Heavy blows can cause chips or cracks, and normal surface wear may introduce trace ceramic material into a sample.

For this reason, porcelain may not be the best choice for sensitive elemental analysis. LabFriend New Zealand offers options such as the ISOLAB porcelain mortar with an unglazed grinding chamber. Related laboratory products are available in the ISOLAB range.

Agate Mortars and Pestles

Agate is a hard silica-based material valued for its low wear rate and lack of metallic contamination. Agate sets normally have polished surfaces and are used for small analytical samples where purity is more important than high-impact crushing.

Common applications include preparing minerals, pigments and ceramic powders for X-ray diffraction, spectroscopy or chemical analysis. Agate can be suitable when contamination from iron, chromium or nickel must be avoided. However, it may contribute silica, so the analytical method and target elements must still be considered.

Use firm, controlled pressure rather than striking an agate pestle heavily into the bowl. Excessive impact can chip or fracture the material. The C.Giese agate mortar and pestle range includes polished sets for different laboratory sample sizes.

Glass Mortars and Pestles

Glass has a smooth, non-porous surface that is well suited to blending, levigation and preparing creams, pastes or suspensions. Transparency allows the operator to observe the mixture, while the smooth finish helps with sample transfer and inspection after cleaning.

Glass is best reserved for relatively soft materials and liquid-assisted preparation. It should not be used to crush hard minerals or dense solids, and it must not be subjected to heavy impact.

Stainless Steel Mortars and Pestles

Stainless steel offers much greater resistance to impact and breakage than glass, porcelain or agate. It can be useful for dense, tough or fibrous samples and for field or industrial work where robustness is important.

The key limitation is metallic contamination. Wear may introduce iron, chromium, nickel or other alloying elements. Stainless steel should therefore be avoided when these metals are being measured at low concentrations. Compatibility must also be checked before grinding corrosive chemicals.

Alumina Mortars and Pestles

Alumina ceramic combines high hardness with strong wear resistance. It is commonly considered for abrasive mineral, ceramic and powder samples that may wear standard porcelain too quickly.

Although alumina performs well with hard materials, it can introduce aluminium into the sample. It is unsuitable when aluminium is a critical analyte or when the method cannot tolerate ceramic contamination.

Disposable Pestles for Microtubes

Disposable microtube pestles are designed for small biological samples rather than conventional dry grinding. They can be used to homogenise soft tissue, disrupt cell pellets, resuspend material or prepare samples for DNA and RNA extraction.

Depending on the application, look for sterile, RNase-free or DNase-free specifications. A dedicated laboratory homogeniser may be more suitable when sample numbers or required consistency exceed what manual processing can provide.

Common Laboratory Applications

Chemistry and Analytical Testing

Grinding increases surface area and can help solids dissolve, digest or react more uniformly. Laboratories may use a mortar and pestle before weighing, chemical digestion or instrumental analysis.

For trace analysis, select the grinding material according to the analytes of interest. Stainless steel can affect iron, chromium and nickel results, while agate, porcelain and alumina require consideration when silicon or aluminium is being measured.

Pharmaceutical and Formulation Work

Mortars and pestles are used to crush tablets, blend powdered ingredients and prepare creams, ointments and suspensions. Rough porcelain is effective for dry powder trituration, while smooth glass can be easier to use for liquids and semi-solid formulations.

Equipment used for pharmaceutical preparation should be cleaned, maintained and, where required, dedicated according to the laboratory's documented procedures.

Geology, Minerals and Materials

Small mineral, rock, soil, pigment and ceramic samples may be ground before diffraction, spectroscopy or digestion. Agate and alumina are often selected because of their hardness and wear resistance.

If the original material is too large, hard or tough for safe manual preparation, it may first require a jaw crusher, disc mill or planetary ball mill. Brands such as FRITSCH offer laboratory milling and particle-sizing equipment for these applications.

Food, Feed and Agricultural Testing

Mortars and pestles can prepare small samples of spices, grains, supplements, dried plant material and animal feed for moisture, composition or chemical testing. Oils, colourants and fine particles can remain on a grinding surface, so cleaning between samples is essential to control cross-contamination.

Biological Sample Preparation

Soft tissue, plant material and cell pellets may be manually homogenised with an appropriate pestle. Disposable pestles used directly in microcentrifuge tubes can help minimise transfer losses when sample volume is limited.

Some temperature-sensitive samples are ground with liquid nitrogen. Cryogenic grinding should only be performed with suitable equipment, ventilation, protective clothing and an approved laboratory procedure.

Schools, Universities and Training Laboratories

Porcelain sets are frequently used in New Zealand teaching laboratories because they are affordable, easy to understand and useful for demonstrating fundamental sample-preparation techniques. Users should apply steady downward pressure and a circular motion rather than heavy pounding, which can damage the equipment and eject material.

How to Choose the Right Laboratory Mortar and Pestle

1. Match the Material to the Sample Hardness

Soft powders, tablets and crystals can often be processed in porcelain or glass. Hard minerals and abrasive materials may require agate, alumina or stainless steel. The grinding tool should be harder than the sample to limit wear and achieve effective size reduction.

2. Assess the Risk of Contamination

Consider which elements or compounds will be measured after grinding:

Avoid stainless steel when analysing iron, chromium or nickel.
Consider whether silica from agate could interfere with the method.
Account for possible aluminium or silicon from porcelain and alumina.
Use dedicated sets when carryover between samples is unacceptable.

Method blanks can help show whether the grinding tool or cleaning procedure is contributing measurable contamination.

3. Confirm Chemical Compatibility

Check that the mortar and pestle are compatible with both the sample and any liquid used during wet grinding. Strong acids, alkalis, oxidising agents and solvents may affect certain materials. Consult the manufacturer's chemical-resistance information before use.

4. Choose a Practical Capacity

Nominal capacity is not the same as working capacity. The mortar needs enough free space for the pestle to move and for the material to remain contained. If a sample is too large, divide it into smaller portions or use a suitable mill.

5. Select the Right Surface Finish

A rough surface provides higher friction and generally speeds up dry grinding. A polished surface may retain less sample and be easier to clean. Unglazed porcelain is often suitable for routine dry powders, while polished agate can be preferable for high-purity analytical work.

6. Review Cleaning and Sterilisation Needs

Confirm that the selected product can tolerate your detergents, solvents, sterilisation method and drying temperature. Do not assume a specific mortar is autoclavable based on its general material alone. Follow the manufacturer's instructions for the exact product.

7. Consider Throughput and Repeatability

Manual grinding works well for occasional, small samples. When many samples must be prepared each day, it can become physically demanding and introduce variation between operators. A mechanical mill may provide better throughput, enclosure and repeatability.

How to Use a Laboratory Mortar and Pestle

Inspect the set. Look for cracks, chips, wear and residues before adding the sample.
Clean and dry the components. Moisture or previous material may affect the result.
Reduce pieces that are too large. Use suitable primary size-reduction equipment when needed.
Add a manageable quantity. Do not fill the mortar close to its stated capacity.
Apply steady pressure. Move the pestle in a controlled circular motion against the base and sides.
Return loose material to the grinding zone. Use a clean, compatible laboratory spatula if required.
Check the result. Continue until the intended consistency is reached and verify particle size when the method requires it.
Transfer the prepared sample. A mortar with a pouring lip can simplify the transfer of powder or slurry.

Use eye protection, gloves and any respiratory protection required by the sample's safety data sheet and your laboratory procedure. Dusty or hazardous materials may require a fume cupboard or suitable powder-containment enclosure. LabFriend offers a range of laboratory personal protective equipment for New Zealand workplaces.

Do not manually grind reactive, explosive or unidentified mixtures unless the process has been formally assessed and approved.

Common Mortar and Pestle Mistakes

One of the most important mistakes to avoid is choosing a mortar solely by price or capacity. Every grinding surface wears to some degree, so its composition may influence sensitive analytical results.

Cleaning and Storing a Laboratory Mortar and Pestle

Clean the set promptly after use. Residue becomes more difficult to remove as it dries and may become lodged in microscopic surface irregularities.

Remove loose material with a compatible brush or disposable wipe.
Wash with a detergent or solvent suitable for both the sample and grinding material.
Use a soft brush where required, avoiding tools that could scratch a polished surface.
Rinse thoroughly so no cleaning-agent residue remains.
Allow both components to dry fully.
Store the set where its grinding surfaces are protected from impact and contamination.

Avoid sudden temperature changes with glass, porcelain and agate. For trace or regulated analysis, follow the laboratory's validated decontamination procedure and use an appropriate blank to confirm cleanliness.

Laboratory Mortar and Pestle vs Mechanical Mill

Selection Factor	Mortar and Pestle	Mechanical Laboratory Mill
Typical sample quantity	Small batches	Small to large batches
Throughput	Low	Medium to high
Process control	Direct operator control	Controlled by equipment settings
Repeatability	Depends strongly on technique	Generally more consistent
Heat generation	Usually low	Varies with mill type and operating conditions
Cleaning	Simple manual cleaning	May involve several removable components
Initial cost	Relatively low	Higher capital cost
Best suited to	Occasional preparation and hands-on control	Routine work, hard samples and repeatable size reduction

Select a mortar and pestle for small-scale work, gentle processing and direct control. Consider a mechanical laboratory mill when sample volume, throughput, containment, repeatability or a defined particle size is more important.

Useful Sample Preparation Accessories

Laboratory spatulas and microspatulas
Powder funnels
Weighing boats and weighing paper
Laboratory test sieves
Sample containers and storage vials
Laboratory cleaning brushes
Anti-slip bench mats
Personal protective equipment
Dust extraction or powder-containment equipment
Approved liquid nitrogen handling equipment for cryogenic applications

Frequently Asked Questions

What is a laboratory mortar and pestle used for?

It is used to crush, grind, blend and homogenise small quantities of solid or semi-solid material. Common tasks include preparing powders for analysis, crushing tablets, blending formulations and processing small mineral, food or biological samples.

Why are porcelain mortars common in laboratories?

Porcelain is economical, durable and usually has a rough, unglazed interior that provides effective friction for tablets, crystals and brittle solids. It can chip and contribute ceramic contamination, so it is not suitable for every analytical method.

Is agate better than porcelain?

Agate is harder, highly wear-resistant and avoids the metallic contamination associated with steel. It is often selected for high-purity analytical and mineral applications. Porcelain is more affordable and is usually adequate for routine grinding. The better option depends on the sample and the substances being measured.

Can a mortar and pestle grind hard materials?

Small quantities of hard, brittle material can be ground when the mortar is harder than the sample. Agate, alumina or stainless steel may be suitable, depending on contamination and chemical-compatibility requirements. Large, very hard or tough samples may need a crusher or mechanical mill.

Can liquid be added during grinding?

Yes. A compatible liquid may be used for wet grinding, levigation or preparing a paste, slurry or suspension. Check that the liquid will not attack the mortar, react with the sample or interfere with subsequent analysis.

How fine can a mortar and pestle grind?

The result depends on the sample, initial particle size, grinding surface, technique and processing time. A fine powder may be achievable, but the particle-size distribution will not be as precisely controlled as it can be with suitable milling and classification equipment.

How can contamination be reduced?

Select a material that does not contain the critical elements being analysed, clean the set thoroughly, inspect it for wear and dedicate equipment to particular samples when necessary. For trace work, use a method blank to check whether the tool or cleaning process is contributing contamination.

Can a kitchen mortar and pestle be used for laboratory testing?

A kitchen set is not recommended for analytical work because its composition, chemical resistance, surface finish and cleanliness may be unknown. Laboratory-grade mortars and pestles have defined materials and specifications suited to sample preparation.

Where can I buy a laboratory mortar and pestle in New Zealand?

LabFriend New Zealand supplies laboratory mortars and pestles in materials including porcelain and polished agate, with sizes for routine preparation and specialist analytical work. Browse the laboratory mortar and pestle range or contact the LabFriend team for help matching the material and capacity to your application.

Need Help Choosing a Laboratory Mortar and Pestle?

The most suitable set depends on sample hardness, batch size, chemical compatibility, cleaning requirements and the risk of analytical contamination.

Whether you need an economical porcelain mortar for routine preparation or a polished agate set for sensitive analytical work, LabFriend New Zealand can help you compare appropriate options.

Explore the LabFriend New Zealand mortar and pestle range, or contact our team with details of your sample, required capacity and analysis method.
