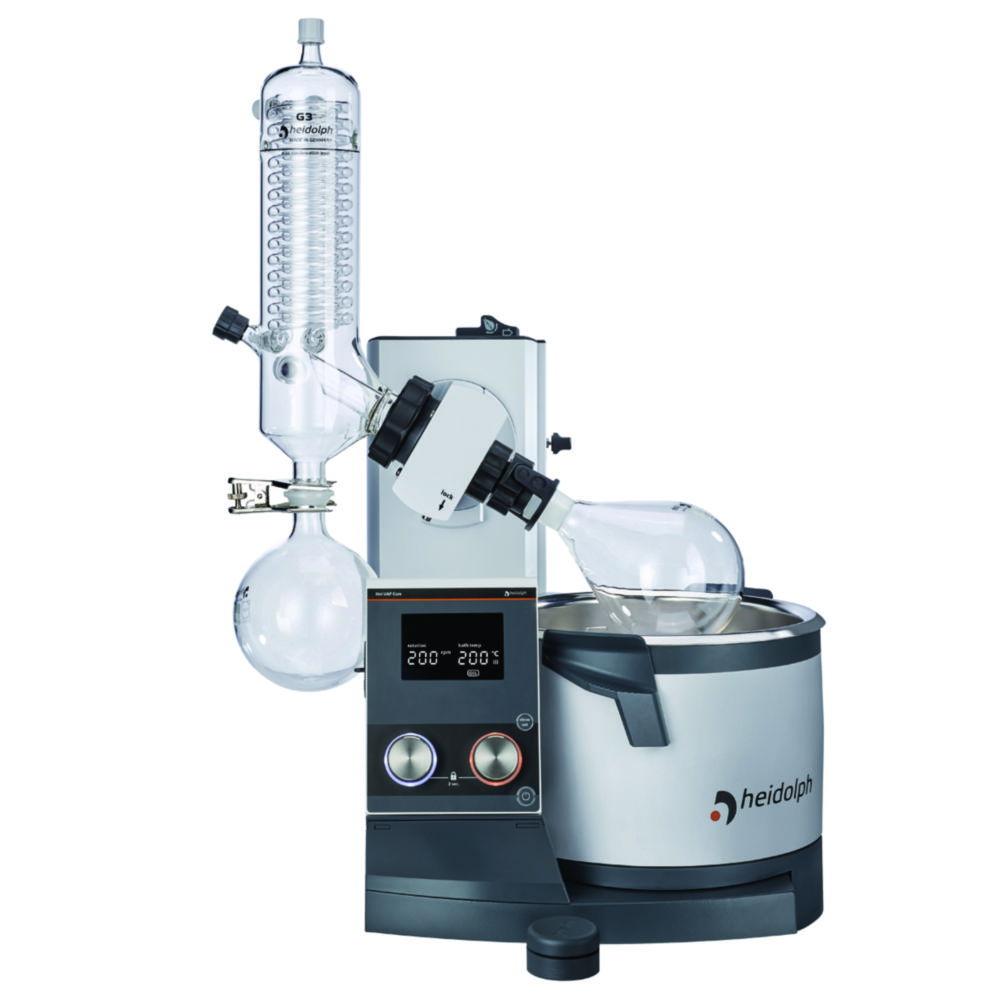

Heidolph Rotary Evaporator Hei-VAP Core HL G3-CH Hand Lift (CH-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G3-CH Hand Lift (CH-Plug) is engineered for precise and efficient solvent evaporation in laboratory settings. Featuring intuitive manual operation and robust Heidolph construction, this model is well-suited for distillation, concentration, and solvent recovery. The unit includes a CH-compliant plug and offers superior adjustability and control for routine lab workflows.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G3-CH with hand lift (CH-Plug)
• Lift Mechanism: Manual hand lift for precise flask positioning
• Display: Clear digital display for monitoring current and set values
• Controls: Two separate knobs for rotation speed and heating temperature with LED ring indicators
• Safety: Activated lock feature to prevent inadvertent changes; residual heat warning above 50 °C
• Design: Ergonomic heating bath handles; grease-free sealing technology for low-maintenance operation
• Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
• Optional Features: Ventilation cap with PTFE inlet and no ground joints; optional replenishment valve and detachable control panel with cable extension
• Plug Type: CH plug for Swiss electrical standards

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-litre receiving flask
• 1-litre evaporating flask
• Supplied condenser as indicated

The Hei-VAP Core HL G3-CH combines performance, safety, and ergonomic design—making it an essential tool for Swiss laboratories performing solvent evaporation and distillation with precision and reliability.
