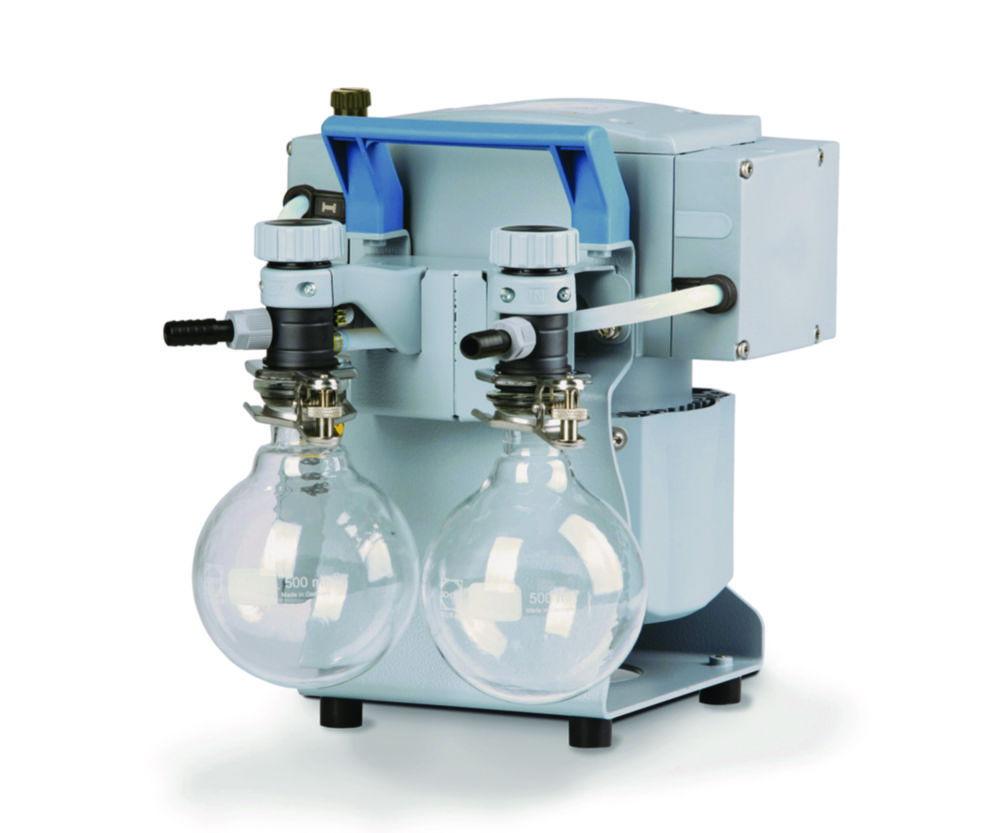

Vacuubrand Chemistry Vacuum System MZ 2C NT + 2 AK, 230 V/50–60 Hz

The Vacuubrand Chemistry Vacuum System MZ 2C NT + 2 AK is a high-performance two-stage diaphragm pump designed for demanding laboratory applications. Operating at 230 V/50–60 Hz, this system offers a maximum pumping speed of 2 m³/h at 50 Hz and 1.4 cfm at 60 Hz. It achieves an ultimate vacuum of 7 mbar (5 torr) and 12 mbar (9 torr) with gas ballast, ensuring efficient removal of condensable vapors.

Key Features:

• Brand: Vacuubrand
• Model: MZ 2C NT + 2 AK
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 2 m³/h (50 Hz), 1.4 cfm (60 Hz)
• Ultimate Vacuum: 7 mbar (5 torr), 12 mbar (9 torr) with gas ballast
• Number of Stages: 2
• Number of Heads: 2
• Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Weight: 13.6 kg
• Noise Level: 45 dBA
• Protection Class: IP 40 (IEC 60529)

This vacuum system is ideal for applications such as rotary evaporation, vacuum concentrators, and filtration in chemical, biological, and pharmaceutical laboratories. The included glass separator (AK) effectively retains particles and liquid droplets, ensuring clean and efficient operation.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Vacuum System MZ 2C NT + 2 AK, 230 V/50–60 Hz used for?

It is a high-performance two-stage diaphragm pump designed for demanding laboratory applications. Operating at 230 V/50–60 Hz, this system offers a maximum pumping speed of 2 m³/h at 50 Hz and 1.4 cfm at 60 Hz. It achieves an ultimate vacuum of 7 mbar (5 torr) and 12 mbar (9 torr) with gas ballast, ensuring efficient removal of condensable vapors.

2. Is this product suitable for demanding laboratory applications?

Yes. It is designed for demanding laboratory applications, and offers a voltage/frequency of 230 V / 50–60 Hz and a maximum pumping speed of 2 m³/h (50 Hz), 1.4 cfm (60 Hz) to support this kind of work.

3. What voltage/frequency and maximum pumping speed does this product have?

It has a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 2 m³/h (50 Hz), 1.4 cfm (60 Hz) and an ultimate vacuum of 7 mbar (5 torr), 12 mbar (9 torr) with gas ballast.

4. What inlet/outlet connections and ambient temperature range (storage) does this product offer?

It offers hose nozzle DN 8–10 mm, -10°C to 60°C, IP 40 (IEC 60529) and good chemical resistance and vapor tolerance.
