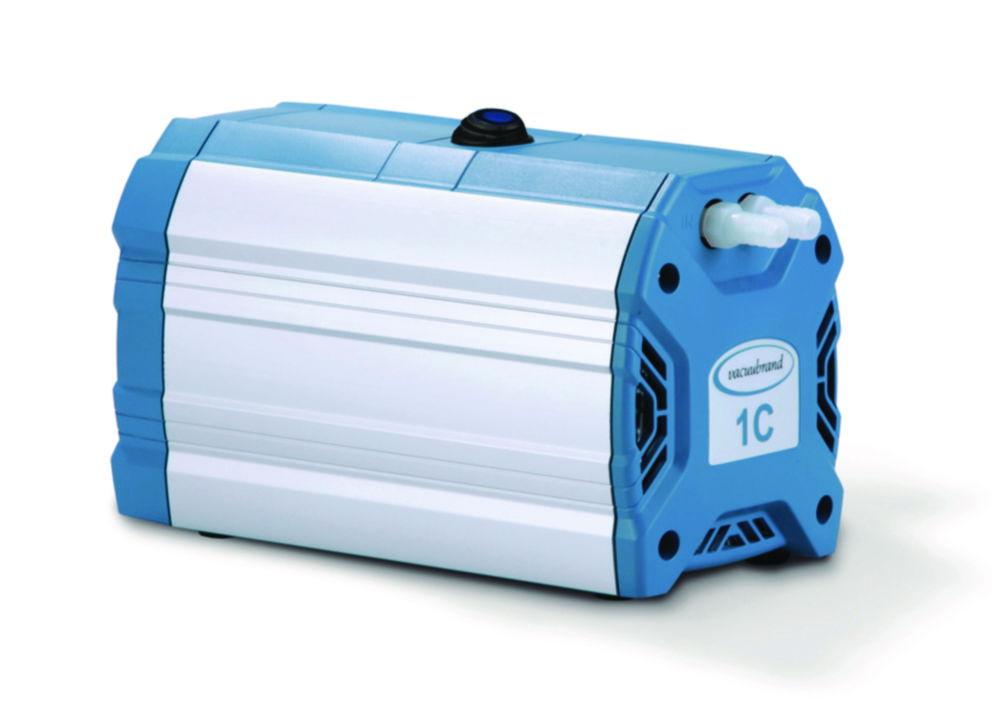

Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable

Plug type

Specifications

Compare models
Connection pressure side
DN 8-10 mm
Connection suction side
DN 8-10 mm
Depth
270 mm
Dimensions (WxDxH)
121 x 270 x 154 mm
Flow rate
0.7 m³/h
Power supply frequency
50/60 Hz
Height
154 mm
IP code
IP 40
Max. voltage
230 V
Min. voltage
220 V

NZ $3539.25

Inc. GST

Available soon

Product description

The Vacuubrand ME 1C is a compact, oil-free diaphragm pump designed for chemical applications requiring reliable vacuum performance. Operating at 230 V with a UK mains cable, this pump offers a maximum pumping speed of 0.7 m³/h at 50 Hz and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant construction ensures durability and longevity in laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Model: ME 1C
  • Voltage/Frequency: 230 V / 50–60 Hz
  • Maximum Pumping Speed: 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz)
  • Ultimate Vacuum: 100 mbar (75 torr)
  • Number of Stages: 1
  • Number of Heads: 1
  • Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
  • Rated Motor Power: 0.04 kW
  • Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
  • Protection Class: IP 40 (IEC 60529)
  • Dimensions (L x W x H): 270 x 121 x 154 mm
  • Weight: 5.4 kg
  • Noise Level: 49 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Max. Back Pressure (abs.): 1.1 bar
  • Certifications: NRTL certified

Ideal for applications such as vacuum filtration and sample preparation in chemical laboratories, the ME 1C offers maintenance-free operation with high chemical resistance.

Downloads

Accessories

Pumps, vacuum / pressure, diaphragm, Vacuubrand, accessories

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Safety valve, DN 16 (Stainless steel, PTFE)40151502206396839.880 971NZ $700.14
Fork root40151502206386436.263 959NZ $35.60
KF connection40151502206968209.880 843NZ $326.33
Round bottom flask 500 ml with spherical joint, coated40151502206384977.089 128NZ $373.80

Regulator valves for membrane pumps

ProductDescriptionForMfr#Part#AvailabilityPrice
vacuumME 1C206968439.880 939NZ $1097.67
vacuumME 1206968429.880 938NZ $519.17
pressureME 2, MZ 2206968419.880 846NZ $878.14
vacuumME 4 NT, MZ 4 NT, MD 4 NT206968409.880 845NZ $667.50

Compare similar models

Chemical membrane pump ME 1C 230 V / 50-60 Hz, UK-mains cable

Manufacturer P/N

20721102

Part Number

9.880 936

Manufacturer

VACUUBRAND​

Plug type

UK

Chemical membrane pump ME 1C 230 V / 50-60 Hz, CEE-mains cable

Manufacturer P/N

20721100

Part Number

9.880 934

Manufacturer

VACUUBRAND​

Plug type

EU

Chemical membrane pump ME 1C 230 V / 50-60 Hz, CH-mains cable

Manufacturer P/N

20721101

Part Number

9.880 935

Manufacturer

VACUUBRAND​

Plug type

CH

Chemical membrane pump ME 1C 100-120 V / 50-60 Hz, US-main cable

Manufacturer P/N

20721103

Part Number

9.880 937

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps chemistry design, MZ 1C

ProductPlug typeTypeMfr#Part#AvailabilityPrice
UKMZ 1C207241029.880 947NZ $6476.26
EUMZ 1C207241006.254 394NZ $6476.26
USMZ 1C207241039.880 978NZ $6476.26
