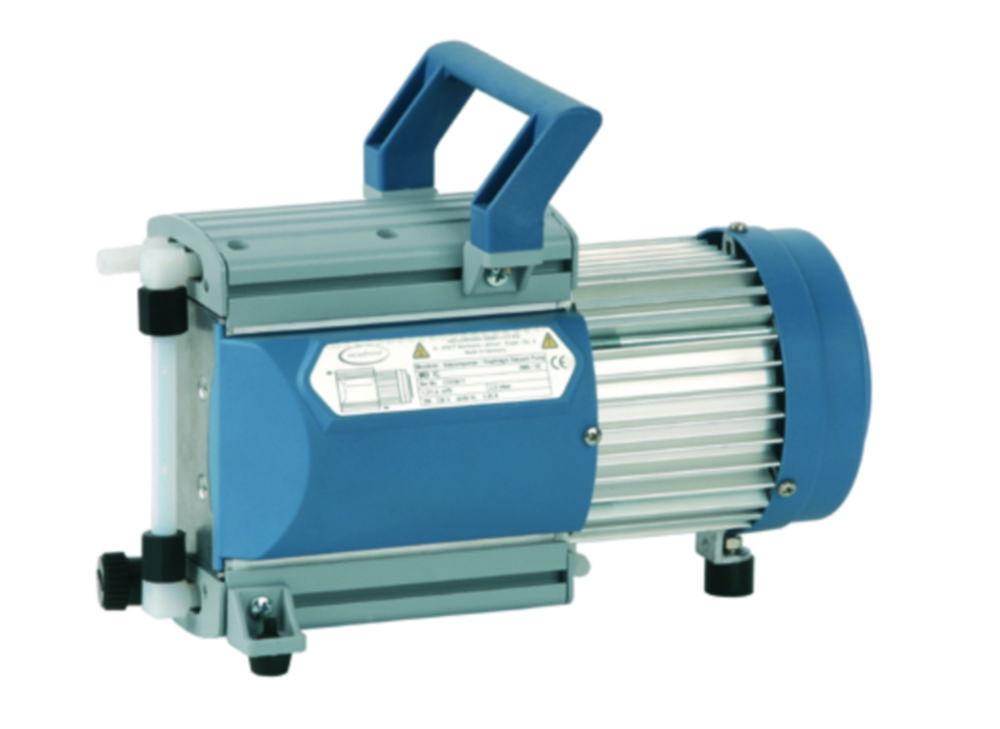

Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power

The Vacuubrand MD 1C Chemistry Diaphragm Pump is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.

Key Features:

• Brand: VACUUBRAND
• Model: MD 1C
• Type: Chemistry diaphragm pump
• Number of Stages: 3
• Ultimate Vacuum: 2 mbar (1.5 torr); 4 mbar (3 torr) with gas ballast
• Maximum Pumping Speed: 1.3 m³/h (50 Hz); 0.88 cfm (60 Hz)
• Power Supply: 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz
• Plug Type: CH (Swiss) / CN (China)
• Dimensions: 142 mm (W) x 338 mm (D) x 223 mm (H)
• Weight: 6.9 kg
• Materials in Contact with Media: Chemically resistant fluoroplastics
• Protection Class: IP 40
• Applications: Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications

The MD 1C features chemically resistant materials for all internal parts in contact with pumped media, ensuring durability and longevity. Its compact design, low noise level, and maintenance-free operation make it an excellent choice for various laboratory applications.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified, 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power used for?

It is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.

2. Is this product suitable for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications?

Yes. It is designed for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications, and offers number of stages of 3 and an ultimate vacuum of 2 mbar (1.5 torr); 4 mbar (3 torr) with gas ballast to support this kind of work.

3. What number of stages and ultimate vacuum does this product have?

It has number of stages of 3, an ultimate vacuum of 2 mbar (1.5 torr); 4 mbar (3 torr) with gas ballast and a maximum pumping speed of 1.3 m³/h (50 Hz); 0.88 cfm (60 Hz).

4. What type and plug type does this product offer?

It offers chemistry diaphragm pump, CH (Swiss) / CN (China), chemically resistant fluoroplastics and IP 40.
