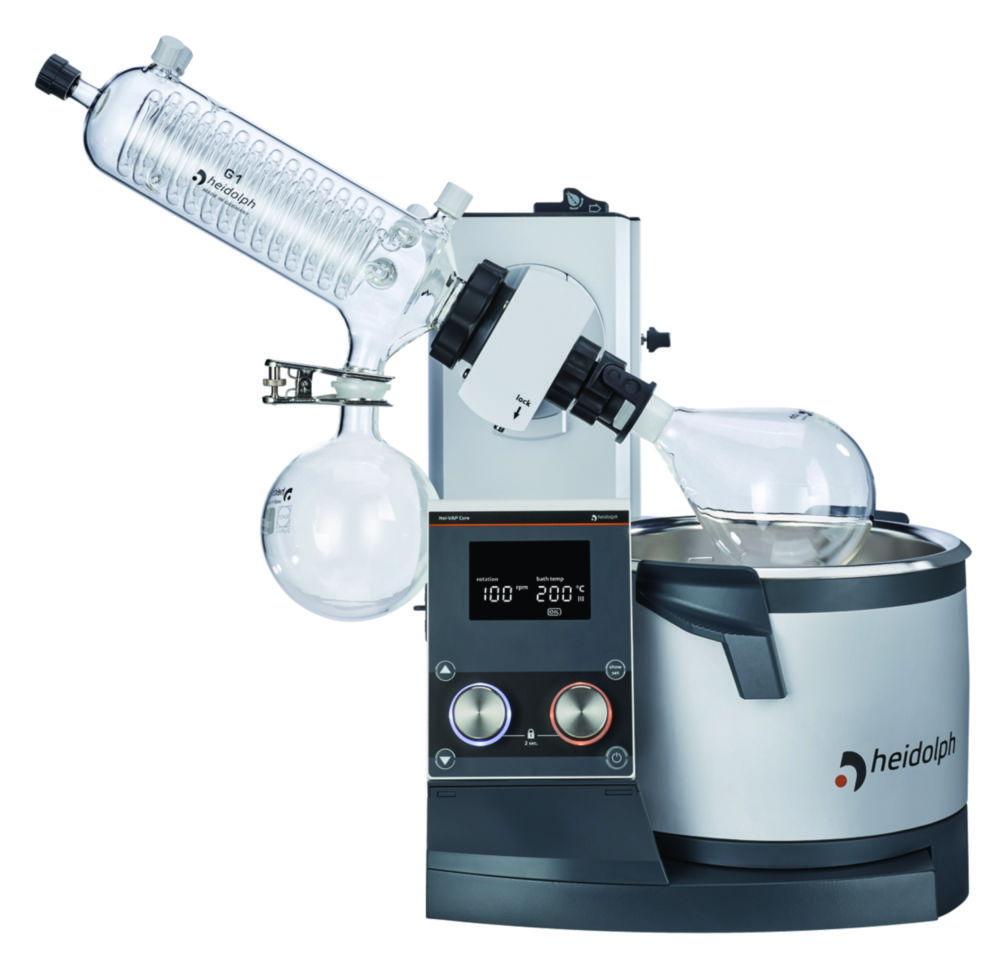

Heidolph Rotary Evaporator Hei-VAP Core ML G1 Hand Lift (EU-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core ML G1 Hand Lift (EU-Plug) is a dependable and user-friendly solution for solvent evaporation in laboratory environments. Featuring a G1 diagonal condenser, manual hand lift, and EU plug compatibility, this model is ideal for applications such as distillation, concentration, and solvent recovery. Its ergonomic and intuitive design enables precise operation and consistent performance in daily lab routines.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core ML G1 with hand lift (EU-Plug)
• Display: Clear digital display showing current values, with a separate button to toggle set values
• Controls: Two independent knobs for adjusting rotation speed and heating temperature, with LED ring light activity indicators
• Lift Mechanism: Manual hand lift for precise and controlled vertical movement of the evaporating flask
• Adjustability: Immersion depth up to 155 mm and tilt angle adjustable from 20° to 80°
• Safety Features: Lock feature to prevent unintentional setting changes; residual heat warning above 50 °C
• Design & Handling: Ergonomically optimized handles on the heating bath ensure safe and comfortable use
• Sealing System: Grease-free operation with advanced sealing technology for reduced maintenance
• Ventilation Cap: Made of PTFE and free of ground joints; optionally available with replenishment valve
• Optional: Control panel can be extended with a cable for operation outside fume hoods
• Electrical Compatibility: EU-Plug for use in European-standard power systems

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-litre receiving flask
• 1-litre evaporating flask
• Supplied condenser as indicated

This Heidolph Rotary Evaporator is an excellent manual solution for laboratories that demand accuracy, durability, and operational safety in their solvent evaporation workflows.
