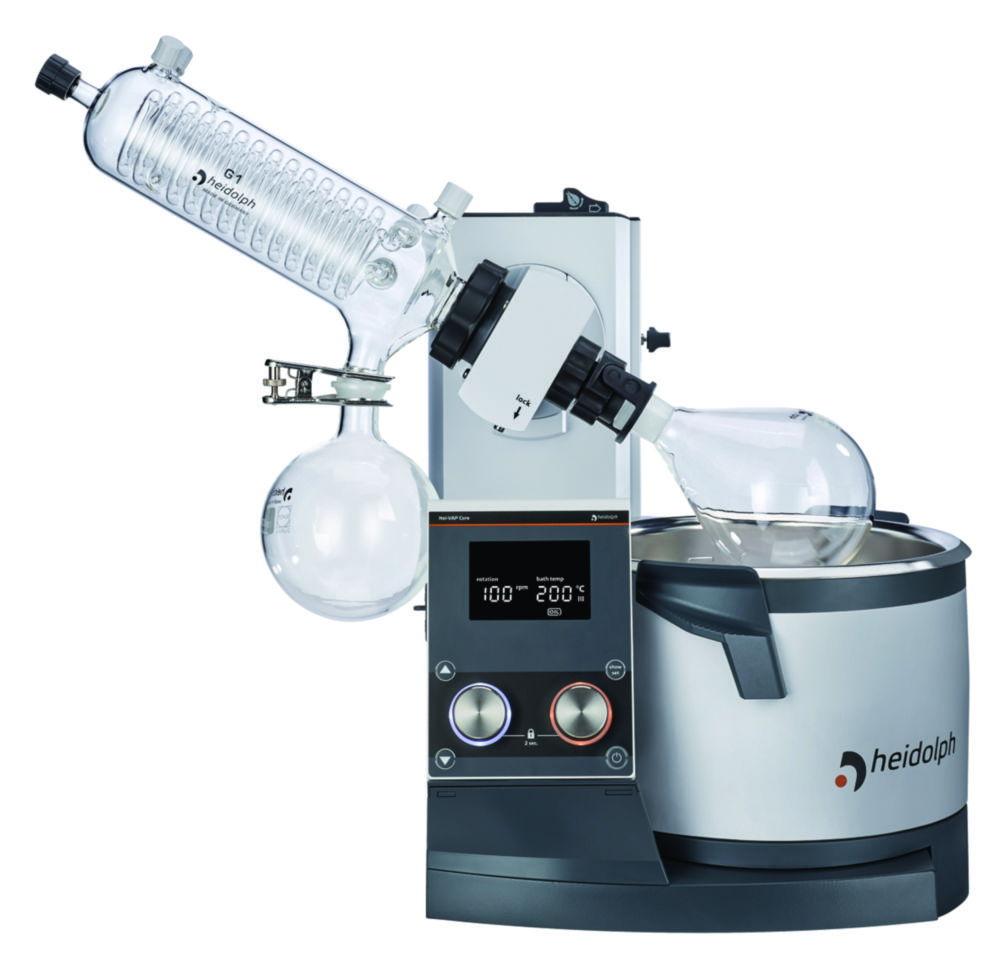

Heidolph Rotary Evaporator Hei-VAP Core ML G1-CH Motor Lift (CH-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core ML G1-CH Motor Lift (CH-Plug) delivers precise, safe, and user-friendly solvent evaporation for laboratories. Featuring a diagonal G1 glassware configuration and motorized lift, this model ensures effortless height adjustment and reproducible performance. With CH-Plug compatibility for Swiss electrical systems, it’s ideal for distillation, concentration, and solvent recovery tasks that demand control, consistency, and operator safety.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core ML G1-CH with motor lift (CH-Plug)
• Lift Mechanism: Motorized lift with standby function to automatically lift flask out of the bath
• Glassware Configuration: G1 diagonal condenser for efficient condensation
• Display: Clear digital display showing current values; separate button for viewing set values
• Controls: Independent knobs for rotation speed and heating temperature, with intuitive LED ring activity indicators
• Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
• Safety Features: Lock function to prevent accidental changes; residual heat warning above 50 °C; automatic shut-off in error conditions
• Design & Handling: Ergonomic heating bath handles and grease-free sealing technology ensure user safety and long-term reliability
• Connectivity: Ventilation cap with PTFE inlet and ground-joint-free design; optional replenishment valve and cable extension for remote control
• Electrical Compatibility: CH-Plug for use in Swiss-standard power outlets

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-litre receiving flask
• 1-litre evaporating flask
• Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G1-CH Motor Lift is a versatile and efficient rotary evaporator designed for laboratories requiring automated lift functionality and exceptional safety in solvent evaporation processes.
