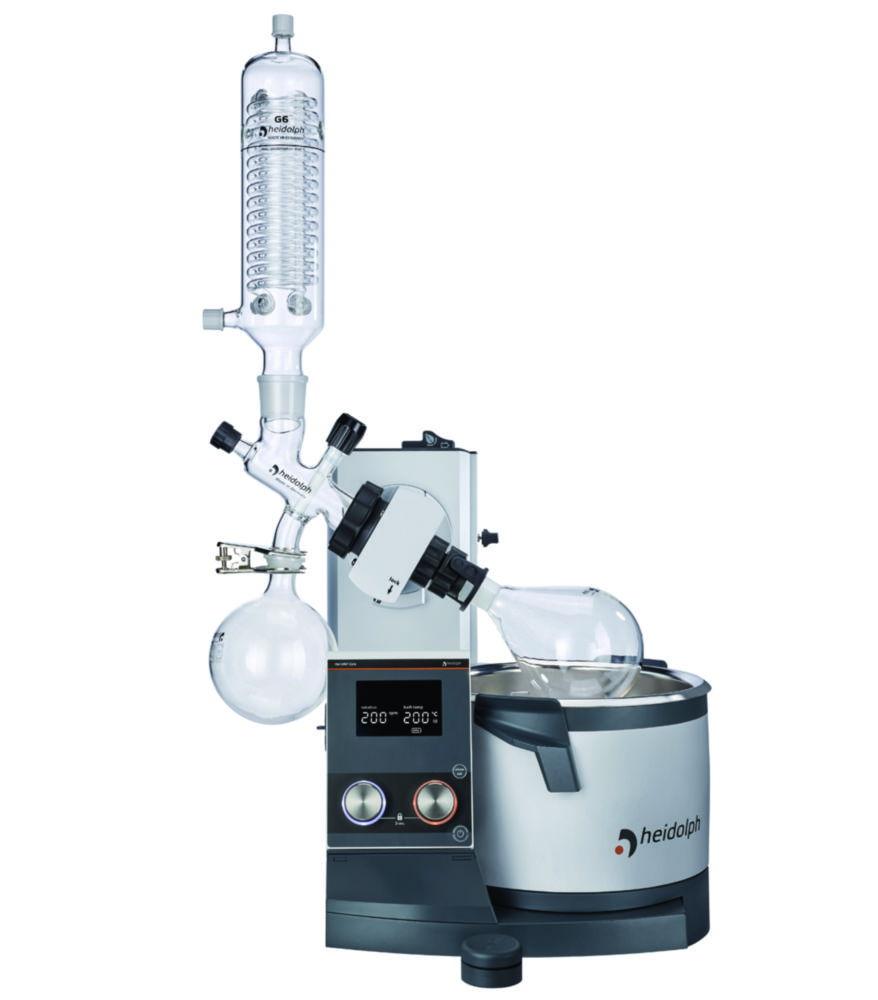

Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

NZ $15479.21

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift (CH-Plug) is engineered for precise and efficient solvent evaporation in laboratory settings. With a manual hand lift mechanism and CH-Plug compatibility, it offers reliable performance for applications such as distillation, concentration, and solvent recovery. Designed for user-friendly operation and long-lasting durability, it supports laboratories in delivering consistent, high-quality results.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G6B-CH with hand lift (CH-Plug)
  • Application: Suitable for solvent evaporation, distillation, and concentration in research labs
  • Lift Mechanism: Manual hand lift for precise and controlled height adjustment
  • Compatibility: CH-Plug configuration for Swiss-compliant power systems
  • Display: Clear digital display with separate button for viewing set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring activity indicators
  • Safety: Activated lock function to prevent unintended changes; residual heat warning for temperatures above 50 °C
  • Adjustability: Adjustable immersion depth up to 155 mm; tilt angle from 20° to 80° for flexible operation
  • Design: Ergonomic handles on the heating bath for safe and comfortable handling
  • Sealing: Grease-free sealing technology for clean and maintenance-friendly operation
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Detachable control panel with cable extension for fume hood integration

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator provides laboratories with a robust, user-friendly, and precise manual evaporation solution that meets high-performance standards for solvent recovery and distillation tasks.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675NZ $3806.48
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665NZ $3119.58

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221NZ $257.87
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222NZ $282.98
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220NZ $214.51
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660NZ $378.82
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172NZ $337.74
