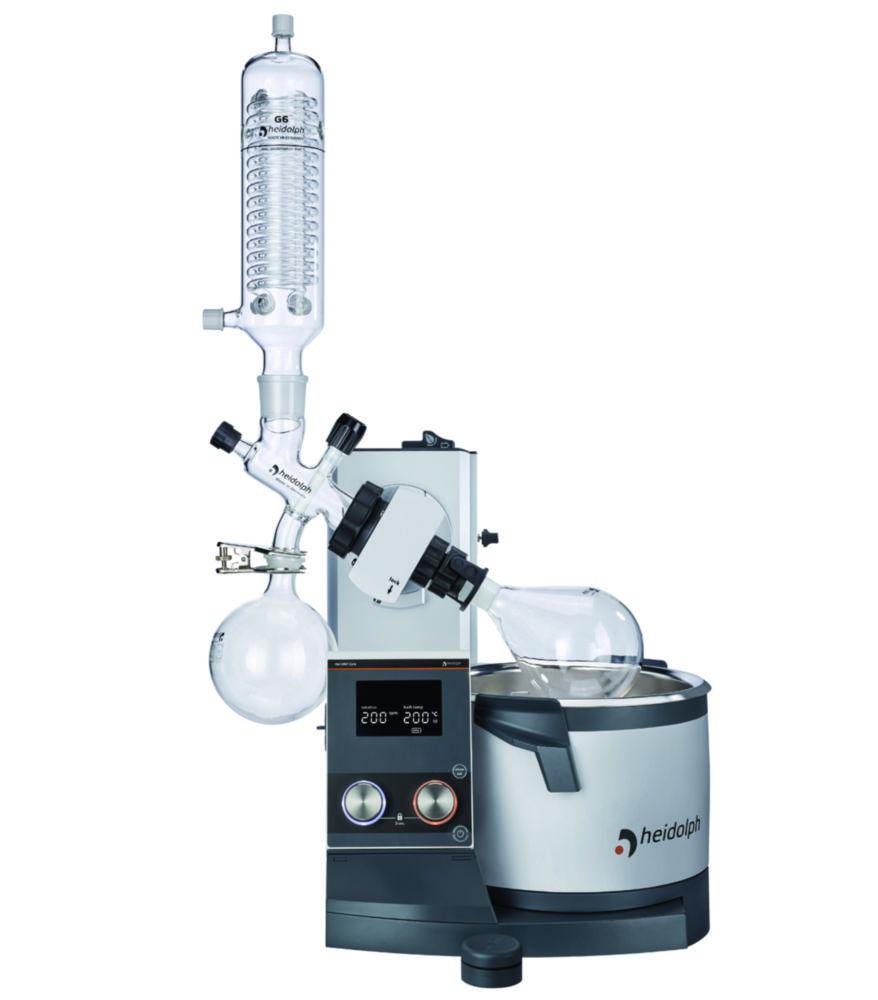

Heidolph Rotary Evaporator Hei-VAP Core HL G6-UK Hand Lift (UK-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

NZ $14609.75

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G6-UK Hand Lift (UK-Plug) provides precision and efficiency for solvent evaporation in laboratory environments. Featuring a manual hand lift and UK-Plug compatibility, this model is designed for distillation, concentration, and solvent recovery. Its user-friendly operation and robust construction make it ideal for laboratories requiring reliable and consistent performance in routine evaporation tasks.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G6-UK with hand lift (UK-Plug)
  • Application: Suitable for solvent evaporation, distillation, and concentration
  • Lift Mechanism: Manual hand lift for precise height control
  • Compatibility: UK-Plug for compliance with UK electrical systems
  • Display: Clear digital display for real-time monitoring and a separate button to display set values
  • Controls: Two independent knobs for adjusting rotation speed and heating temperature with LED ring lights for clear visual indication
  • Safety: Activated lock function to prevent accidental adjustments; residual heat warning when temperature exceeds 50 °C
  • Standby Mode: (Motor lift only) Automatically stops operation and lifts flask out of the bath
  • Design: Ergonomically optimized heating bath handles ensure a secure and comfortable grip
  • Adjustability: Immersion depth adjustable up to 155 mm; evaporating flask tilt adjustable from 20° to 80°
  • Sealing System: Grease-free operation with advanced sealing technology
  • Ventilation Cap: PTFE inlet, ground joint-free; optionally available with replenishment valve
  • Optional Accessories: Cable extension and detachable control panel for fume hood use

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is a dependable and efficient solution for laboratory environments needing high-quality manual evaporation equipment with precision, durability, and safety built in.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675NZ $3806.48
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665NZ $3119.58

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221NZ $257.87
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222NZ $282.98
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220NZ $214.51
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660NZ $378.82
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172NZ $337.74

Compare similar models

Rotary Evaporator Hei-VAP Core HL G6-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6-UK Hand Lift (UK-Plug)

NZ $14609.75

Inc. GST

Manufacturer P/N

571-01600-03

Part Number

4.666 111

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6 hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6, Hand Lift (EU-Plug)

NZ $14609.75

Inc. GST

Manufacturer P/N

571-01600-00

Part Number

4.666 089

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6B-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B-UK Hand Lift (UK-Plug)

NZ $15479.21

Inc. GST

Manufacturer P/N

571-01610-03

Part Number

4.666 116

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6B-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift (CH-Plug)

NZ $15479.21

Inc. GST

Manufacturer P/N

571-01610-04

Part Number

4.666 136

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6-CH Hand Lift (CH-Plug)

NZ $14609.75

Inc. GST

Manufacturer P/N

571-01600-04

Part Number

4.666 131

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6B hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B Hand Lift (EU-Plug)

NZ $15479.21

Inc. GST

Manufacturer P/N

571-01610-00

Part Number

4.666 094

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It provides precision and efficiency for solvent evaporation in laboratory environments. Featuring a manual hand lift and UK-Plug compatibility, this model is designed for distillation, concentration, and solvent recovery. Its user-friendly operation and robust construction make it ideal for laboratories requiring reliable and consistent performance in routine evaporation tasks.
