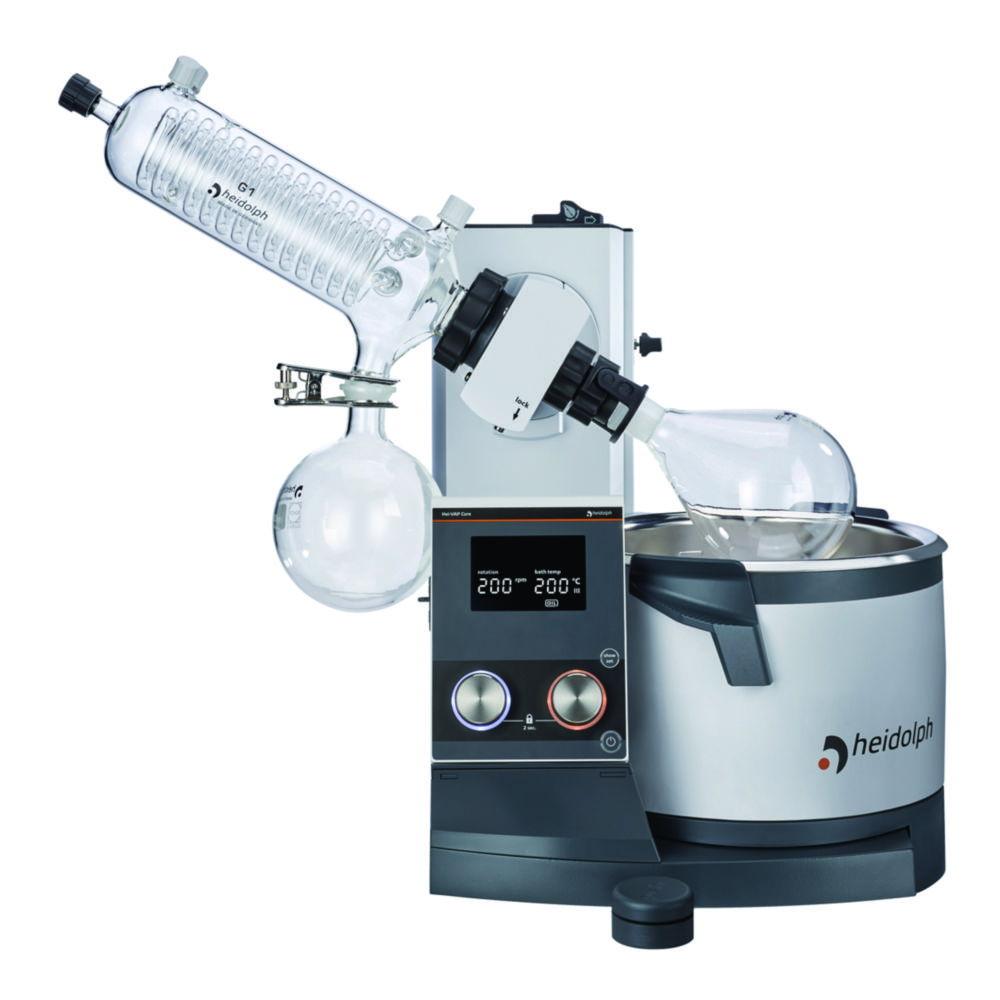

Heidolph Rotary Evaporator Hei-VAP Core HL G1B-UK Hand Lift (UK-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G1B-UK Hand Lift (UK-Plug) is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The hand lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G1B-UK with hand lift (UK-Plug)
• Display: Clear digital display for monitoring current values with a separate button to show set values
• Controls: Two separate knobs for rotation speed and heating temperature with LED ring light indicators
• Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when temperature exceeds 50 °C
• Design: Ergonomically optimized heating bath handles; grease-free operation using innovative sealing technology
• Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
• Ventilation: Ventilation cap with PTFE inlet, free of ground joints; replenishment valve optionally available
• Optional Features: Optional cable extension and detachable control panel for use outside closed fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

This rotary evaporator is an indispensable tool for laboratories requiring precise and efficient solvent evaporation solutions.

Frequently Asked Questions

1. What is the Heidolph Rotary Evaporator Hei-VAP Core HL G1B-UK Hand Lift used for?

It is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The hand lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

2. Is this product suitable for the laboratory application described by the manufacturer?

Yes. It is designed for the laboratory application described by the manufacturer, and offers 1-l receiving flask and 1-l evaporating flask to support this kind of work.

3. What specifications does this product have?

It has 1-l receiving flask and 1-l evaporating flask.

4. What display and controls does this product offer?

It offers clear digital display for monitoring current values with a separate button to show set values, two separate knobs for rotation speed and heating temperature with LED ring light indicators, activated lock feature to prevent inadvertent adjustments; residual heat indicator when temperature exceeds 50 °C and ergonomically optimized heating bath handles; grease-free operation using innovative sealing technology.
