Heidolph Rotary Evaporator Hei-VAP Core HL G1B, Hand Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

NZ $11599.71

Inc. GST

Available soon

Product description

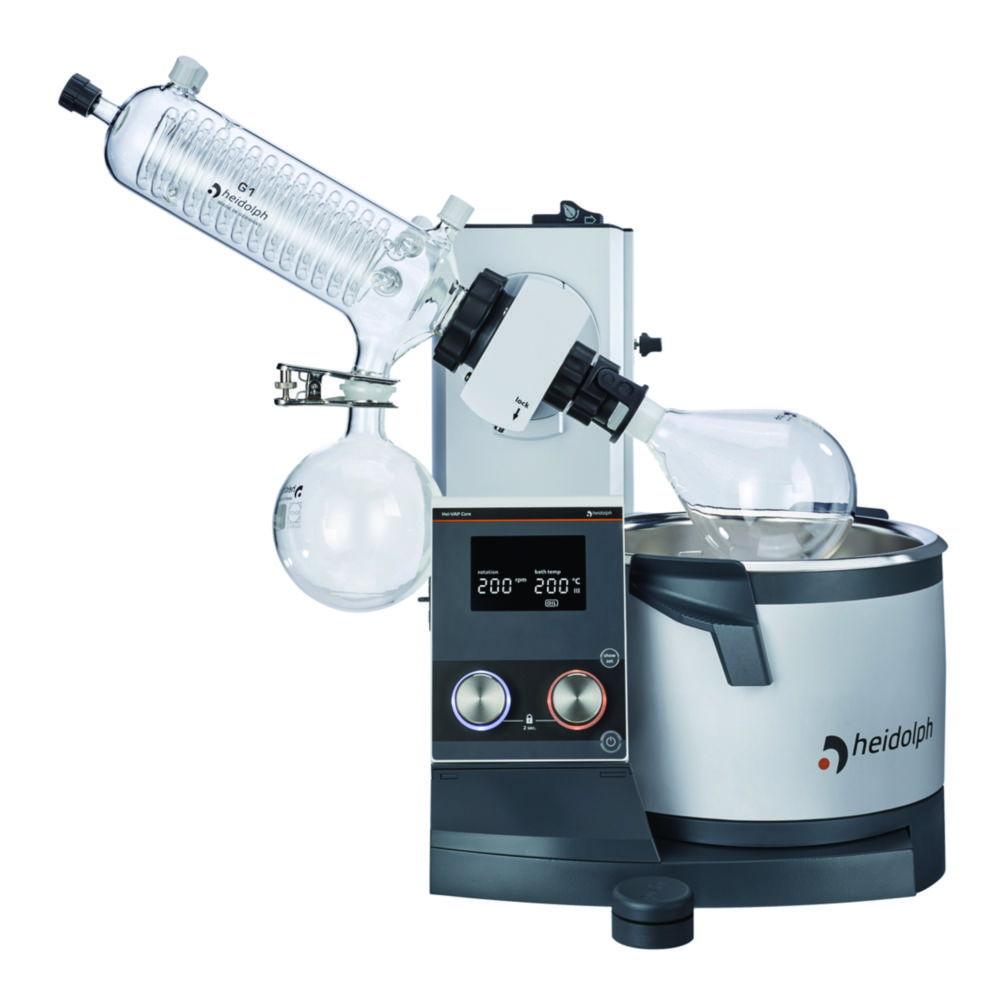

The Heidolph Rotary Evaporator Hei-VAP Core HL G1B with hand lift is a reliable and efficient system for laboratory solvent evaporation. This rotary evaporator is equipped with a hand lift for easy manual adjustment of the flask position. The EU-plug version ensures compatibility with European electrical systems. It is ideal for laboratories looking for a high-performance, user-friendly solution for solvent distillation and evaporation tasks.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G1B
  • Lift Mechanism: Hand lift for precise flask adjustment and operation
  • Plug Type: EU plug for European electrical compatibility
  • Display: Clear digital display for monitoring current values and separate button to show set values
  • Controls: Two dedicated knobs for adjusting rotation speed and heating temperature, with LED ring light indicators
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat warning when temperature exceeds 50 °C
  • Ergonomics: Optimized heating bath handles for safe and comfortable handling
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing: Grease-free operation using innovative sealing technology
  • Ventilation: Ventilation cap with PTFE inlet, free of ground joints; replenishment valve optionally available
  • Extras: Optional cable extension and detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

Heidolph’s Hei-VAP Core HL G1B rotary evaporator is designed for optimal performance in solvent distillation and is perfect for high-demand laboratory environments.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675NZ $3806.48
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221NZ $257.87
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222NZ $282.98
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220NZ $214.51
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660NZ $378.82
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172NZ $337.74
