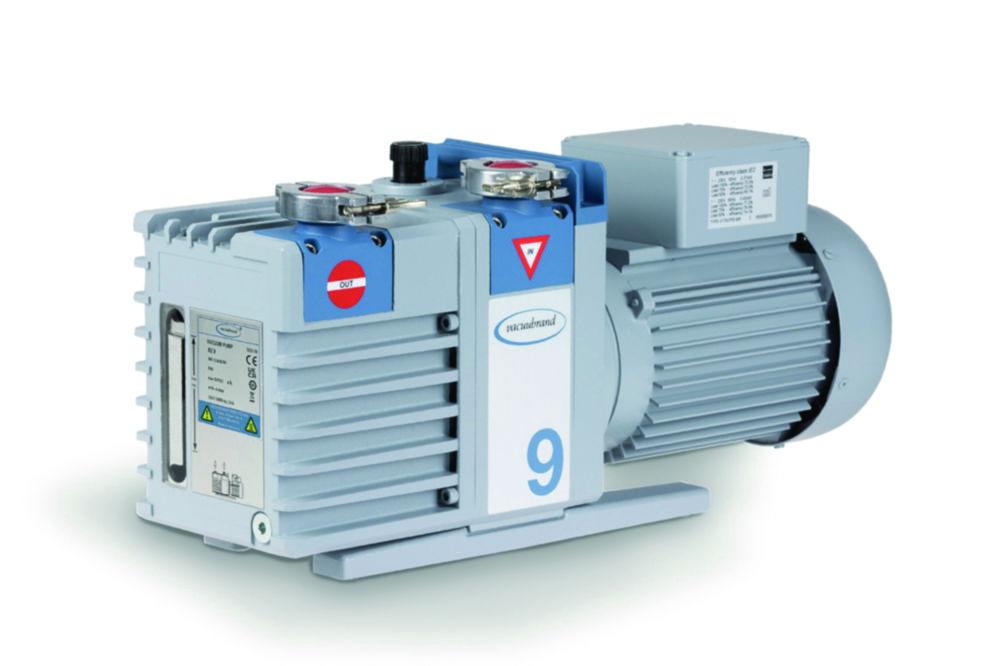

Vacuubrand Rotary Vane Pump RZ 9, Two-Stage, 230 V/50–60 Hz, CH/CN Mains Cable
Product overview
The Vacuubrand Rotary Vane Pump RZ 9 is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a CH/CN mains cable, ensuring compatibility with Swiss and Chinese electrical standards.
Key Features:
- Brand: Vacuubrand
- Model: RZ 9
- Type: Two-stage rotary vane pump
- Voltage: 230 V/50–60 Hz
- Power Connection: CH/CN mains cable
- Applications: Suitable for laboratory and industrial processes requiring reliable vacuum performance
Scope of Supply:
- Rotary vane pump
- Manual
This pump offers robust performance and is ideal for applications that demand consistent and efficient vacuum generation.
Frequently Asked Questions
1. What is the Vacuubrand Rotary Vane Pump RZ 9, Two-Stage, 230 V/50–60 Hz, CH/CN Mains Cable used for?
It is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a CH/CN mains cable, ensuring compatibility with Swiss and Chinese electrical standards.
2. Is this product suitable for laboratory and industrial processes requiring reliable vacuum performance?
Yes. It is designed for laboratory and industrial processes requiring reliable vacuum performance, and offers a voltage of 230 V/50–60 Hz to support this kind of work.
3. What voltage does this product have?
It has a voltage of 230 V/50–60 Hz.
4. What type and power connection does this product offer?
It offers two-stage rotary vane pump, CH/CN mains cable, rotary vane pump and manual.
Product Specifications
- HS Code #84141025
- Connection pressure sideKF DN 25
- Connection suction sideKF DN 25
- Depth503 mm
- Dimensions (WxDxH)156 x 503 x 240 mm
- Flow rate148.33 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level52 db(A)
- Plug typeCH
- Power supply230 V, 50/60 Hz
- Rated capacity300 W
- TypeRZ 9
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight24.8 kg
- Width156 mm
Downloads
- LabFriend 4.691 929 14033_technical_data_sheet.pdfDownload
