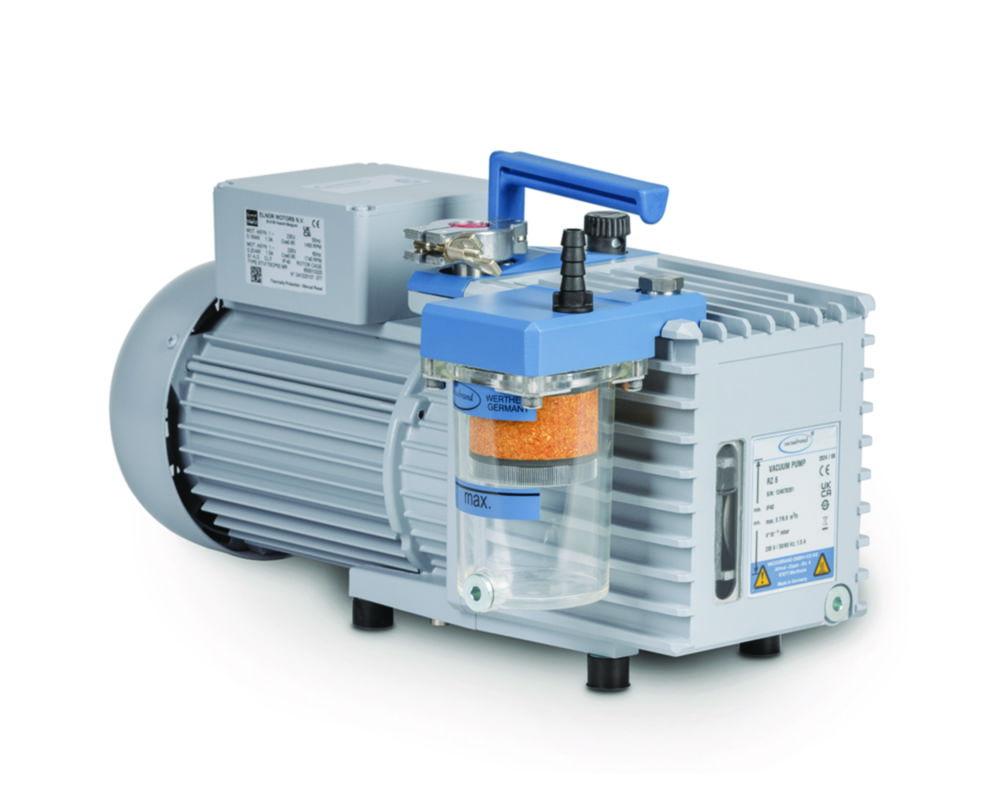

Vacuubrand Rotary Vane Pump RZ 6, Two-Stage, 230 V/50–60 Hz, with Oil Mist Filter FO, CEE Mains Cable
Product overview
The Vacuubrand Rotary Vane Pump RZ 6 is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a CEE mains cable and includes an oil mist filter FO, ensuring compatibility with European electrical standards and efficient operation.
Key Features:
- Brand: Vacuubrand
- Model: RZ 6
- Type: Two-stage rotary vane pump
- Voltage: 230 V/50–60 Hz
- Power Connection: CEE mains cable
- Included Components: Oil mist filter FO
- Pumping Speed: 5.7 m³/h at 50 Hz
- Ultimate Vacuum: 0.002 mbar
- Ultimate Vacuum with Gas Ballast: 0.01 mbar
- Water Vapor Tolerance: 40 mbar with gas ballast
- Noise Level: 50 dBA
- Weight: 17 kg
- Dimensions (W × D × H): 156 × 420 × 240 mm
- Applications: Suitable for lyophilization, fine vacuum distillation, and drying chambers
Scope of Supply:
- Rotary vane pump
- Oil mist filter FO
- manual
This pump offers robust performance and is ideal for applications that demand consistent and efficient vacuum generation.
Frequently Asked Questions
1. What is the Vacuubrand Rotary Vane Pump RZ 6, Two-Stage, 230 V/50–60 Hz, with Oil Mist Filter FO, CEE Mains Cable used for?
It is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a CEE mains cable and includes an oil mist filter FO, ensuring compatibility with European electrical standards and efficient operation.
2. Is this product suitable for lyophilization, fine vacuum distillation, and drying chambers?
Yes. It is designed for lyophilization, fine vacuum distillation, and drying chambers, and offers a voltage of 230 V/50–60 Hz and a pumping speed of 5.7 m³/h at 50 Hz to support this kind of work.
3. What voltage and pumping speed does this product have?
It has a voltage of 230 V/50–60 Hz, a pumping speed of 5.7 m³/h at 50 Hz and an ultimate vacuum of 0.002 mbar.
4. What type and power connection does this product offer?
It offers two-stage rotary vane pump, CEE mains cable, oil mist filter FO and rotary vane pump.
Product Specifications
- HS Code #84141025
- Connection pressure sideDN 8-10 mm
- Connection suction sideKF DN 16
- Depth420 mm
- Dimensions (WxDxH)156 x 420 x 240 mm
- Flow rate95 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level50 db(A)
- Plug typeEU
- Power supply230 V, 50/60 Hz
- Rated capacity180 W
- TypeRZ 6+FO
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight17 kg
- Width156 mm
