Representative Image

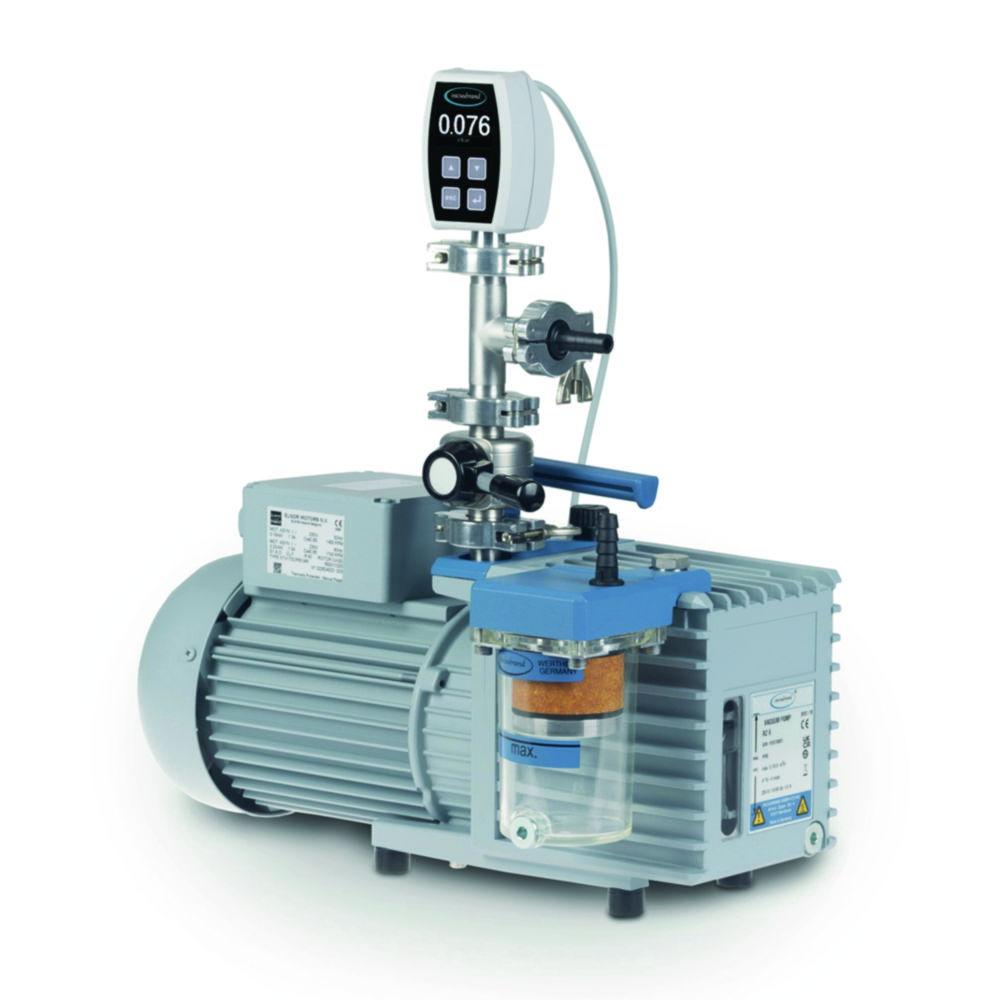

Vacuubrand Rotary Vane Pump Package RZ 6 with Oil Mist Filter, Butterfly Valve VS 16, and Vacuum Gauge VACUU·VIEW Extended, 230 V/50–60 Hz, CEE Mains

Plug type

Specifications

Compare models
Connection pressure side
DN 8-10 mm
Connection suction side
KF DN 16
Depth
420 mm
Dimensions (WxDxH)
230 x 420 x 240 mm
Flow rate
95 l/min
Power supply frequency
50/60 Hz
Height
240 mm
IP code
IP 40
Max. voltage
230 V
No. of stages
2

NZ $14376.52

Inc. GST

Available soon

Product description

The Vacuubrand Rotary Vane Pump Package RZ 6 is a comprehensive solution designed for efficient and reliable vacuum applications in laboratory settings. This package includes the robust two-stage RZ 6 rotary vane pump, an oil mist filter FO, butterfly valve VS 16, and the VACUU·VIEW extended vacuum gauge, all configured for 230 V/50–60 Hz with CEE mains compatibility.

Key Features:

  • Brand: Vacuubrand
  • Pumping Speed: 5.7 m³/h at 50 Hz
  • Ultimate Vacuum: 2 × 10−3 mbar
  • Noise Level: 50 dBA
  • Weight: 17.8 kg
  • Dimensions (L × W × H): 420 × 230 × 240 mm
  • Included Components: RZ 6 pump, oil mist filter FO, butterfly valve VS 16, VACUU·VIEW extended vacuum gauge
  • Applications: Ideal for laboratory and process applications requiring low ultimate vacuum at medium to increased gas flow rates

Scope of Supply:

  • Rotary vane pump
  • Oil mist filter FO
  • Butterfly valve VS 16
  • VACUU·VIEW extended vacuum gauge
  • Manual

This package offers a compact and lightweight design, making it an excellent choice for various laboratory vacuum applications.

Downloads

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081NZ $228.43
PVC34.9 mm206860634.714 084NZ $602.24
PVC38.1 mm206860654.714 085NZ $700.14
PVC15.9 mm206860614.714 082NZ $267.00
PVC22.3 mm206860624.714 083NZ $353.03

Compare similar models

Rotary vane pump package RZ 6, with oil mist filter, butterfly valve VS 16 and vacuum gauge VACUU·VIEW extended, 230 V/50-60 Hz, CEE mains

Manufacturer P/N

20798160

Part Number

4.691 560

Manufacturer

VACUUBRAND​

Plug type

EU

Rotary vane pump package RZ 6, with oil mist filter, butterfly valve VS 16 and vacuum gauge VACUU·VIEW extended, 230 V/50-60 Hz, CH mains

Manufacturer P/N

20798161

Part Number

4.691 561

Manufacturer

VACUUBRAND​

Plug type

CH

More items to explore

Rotary vane pump RE 6, one-stage

ProductPlug typeTypeMfr#Part#AvailabilityPrice
UKRE 6207971624.691 564NZ $9036.50
EURE 6207971604.691 562NZ $9036.50
CHRE 6207971614.691 563NZ $9036.50
USRE 6207971664.691 566NZ $9704.00

Rotary vane pump RZ 6, two-stage

ProductPlug typeTypeMfr#Part#AvailabilityPrice
CHRZ 6207981314.691 555NZ $10564.34
UKRZ 6207981324.691 556NZ $10564.34
EURZ 6207981304.691 554NZ $10564.34
USRZ 6207981364.691 565NZ $11249.64

Frequently asked questions

It is a comprehensive solution designed for efficient and reliable vacuum applications in laboratory settings. This package includes the robust two-stage RZ 6 rotary vane pump, an oil mist filter FO, butterfly valve VS 16, and the VACUU·VIEW extended vacuum gauge, all configured for 230 V/50–60 Hz with CEE mains compatibility.
