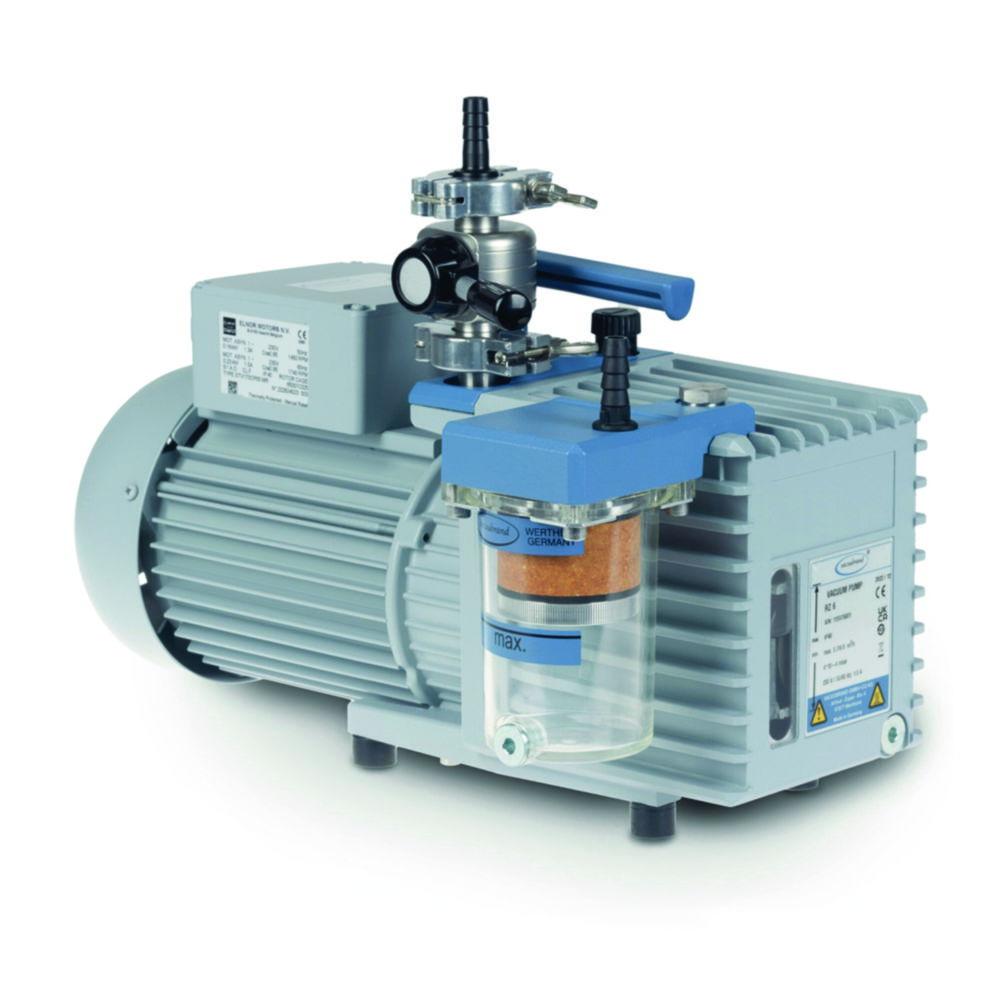

Vacuubrand Rotary Vane Pump Package RZ 6 with Oil Mist Filter and Butterfly Valve VS 16, 230 V / 50-60 Hz, CH Mains Cable
Product overview
The Vacuubrand Rotary Vane Pump Package RZ 6 is a high-performance vacuum solution that includes the RZ 6 rotary vane pump, an oil mist filter, and a butterfly valve VS 16. This package ensures optimal vacuum generation, filtration, and precise control. The 230 V / 50-60 Hz CH mains cable is compatible with Swiss electrical systems, making it ideal for laboratory and industrial applications that require efficient vacuum systems.
Key Features:
- Brand: Vacuubrand
- Model: Rotary Vane Pump RZ 6 Package
- Components: Includes oil mist filter and butterfly valve VS 16
- Voltage: 230 V / 50-60 Hz
- Power Cable: CH mains cable for Swiss power systems
- Application: Ideal for laboratory and industrial vacuum tasks with superior filtration and valve control
- Packaging: Complete package for easy installation and use
Scope of Supply:
- Rotary vane pump
- Oil mist filter FO
- Butterfly valve VS 16
- Manual
This Vacuubrand rotary vane pump package offers a reliable and efficient solution for laboratories and industrial setups requiring precise vacuum control, filtration, and long-lasting performance.
Frequently Asked Questions
1. What is the Vacuubrand Rotary Vane Pump Package RZ 6 with Oil Mist Filter and Butterfly Valve VS 16, 230 V / 50-60 Hz, CH Mains Cable used for?
It is a high-performance vacuum solution that includes the RZ 6 rotary vane pump, an oil mist filter, and a butterfly valve VS 16. This package ensures optimal vacuum generation, filtration, and precise control. The 230 V / 50-60 Hz CH mains cable is compatible with Swiss electrical systems, making it ideal for laboratory and industrial applications that require efficient vacuum systems.
2. Is this product suitable for laboratory and industrial vacuum tasks with superior filtration and valve control?
Yes. It is designed for laboratory and industrial vacuum tasks with superior filtration and valve control, and offers a voltage of 230 V / 50-60 Hz to support this kind of work.
3. What voltage does this product have?
It has a voltage of 230 V / 50-60 Hz.
4. What components and power cable does this product offer?
It offers oil mist filter and butterfly valve VS 16, CH mains cable for Swiss power systems, rotary vane pump and oil mist filter FO.
Product Specifications
- HS Code #84141025
- Connection pressure sideDN 8-10 mm
- Connection suction sideKF DN 16
- Depth420 mm
- Dimensions (WxDxH)230 x 420 x 240 mm
- Flow rate95 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level50 db(A)
- Plug typeCH
- Power supply230 V, 50/60 Hz
- Rated capacity180 W
- TypeRZ 6+FO+VS 16
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight17.8 kg
- Width230 mm
Downloads
- LabFriend 4.691 551 2AN_10000100023_000_03.pdfDownload
