Representative Image

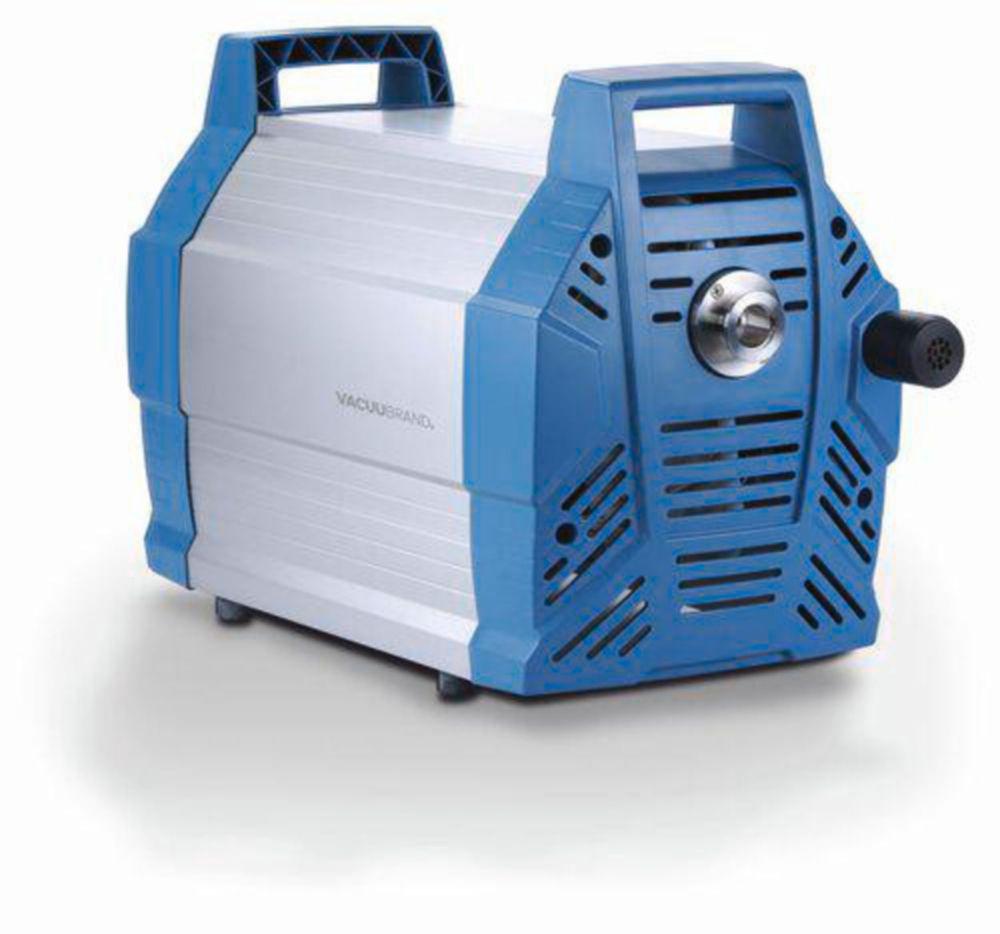

Vacuubrand Diaphragm Pump MV 10 NT, Four-Stage, 230 V, 50/60 Hz with CEE Mains Cable

Plug type

Specifications

Compare models
Connection pressure side
G1/2"
Connection suction side
KF DN 25
Depth
554 mm
Dimensions (WxDxH)
260 x 554 x 359 mm
Flow rate
10.4 m³/h
Height
359 mm
No. of stages
4
Plug type
EU
Type
MV 10 NT
Type of auxiliary energy
Mains connection

NZ $22534.89

Inc. GST

Available soon

Product description

The Vacuubrand MV 10 NT is a high-performance, four-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of non-corrosive gases. Operating at 230 V and 50/60 Hz, this pump delivers a maximum pumping speed of 10.4 m³/h and achieves an ultimate vacuum of 0.5 mbar. Equipped with a CEE mains cable, it is suitable for European power systems.

Key Features:

  • Brand: Vacuubrand
  • Type: Diaphragm pump
  • Design: Four-stage operation for efficient vacuum generation
  • Voltage: 230 V, 50/60 Hz
  • Cable Type: CEE mains cable for compatibility with European systems
  • Maximum Pumping Speed: 10.4 m³/h
  • Ultimate Vacuum: 0.5 mbar
  • Noise Level: Whisper-quiet operation
  • Applications: Vacuum ovens, filtration processes, backing pump for turbomolecular drag pumps, analytical instruments

The Vacuubrand MV 10 NT diaphragm pump offers reliable, quiet, and oil-free vacuum performance, making it an excellent choice for various laboratory applications.

Downloads

Accessories

Sealing kit NT for chemistry diaphragm pumps NT

ProductForUNSPSCMfr#Part#AvailabilityPrice
MZ 2C NT40151502206968696.241 476NZ $801.00
MD 4C NT40151502206968706.239 489NZ $1527.84
ME 4 NT, MZ 2 NT40151502206968609.880 902NZ $465.77
ME 4C NT40151502206968649.880 906NZ $465.77
MZ 2D NT40151502206968639.880 904NZ $465.77
MV 2 NT / MD 4 NT40151502206968619.880 905NZ $774.30
ME 8 NT40151502206968629.880 903NZ $640.80
ME 8C NT40151502206968679.880 907NZ $904.84

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081NZ $228.43
PVC34.9 mm206860634.714 084NZ $602.24
PVC38.1 mm206860654.714 085NZ $700.14
PVC15.9 mm206860614.714 082NZ $267.00
PVC22.3 mm206860624.714 083NZ $353.03

Compare similar models

Membrane pump MV 10 NT four-step, 230 V, 50-60 Hz with CEE mains cable

Manufacturer P/N

20744000

Part Number

9.880 954

Manufacturer

VACUUBRAND​

Plug type

EU

Diaphragm pump MV 10 NT, four-stage, 100-120 V / 50-60 Hz, US mains cable

Manufacturer P/N

20744003

Part Number

4.670 568

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps, Aluminium PTFE design, ME 1

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1207210009.880 930NZ $2646.28
UKME 1207210029.880 932NZ $2646.28
CHME 1207210019.880 931NZ $2646.28
USME 1207210039.880 933NZ $2646.28

Diaphragm pumps, Aluminium, MV 10 NT VARIO select

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMV 10 NT VARIO select257441504.687 928NZ $33843.86
UKMV 10 NT VARIO select257441524.687 920NZ $33843.86
CHMV 10 NT VARIO select257441514.687 919NZ $33843.86
USMV 10 NT VARIO select257441534.701 152NZ $33843.86

Frequently asked questions

It is a high-performance, four-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of non-corrosive gases. Operating at 230 V and 50/60 Hz, this pump delivers a maximum pumping speed of 10.4 m³/h and achieves an ultimate vacuum of 0.5 mbar. Equipped with a CEE mains cable, it is suitable for European power systems.
