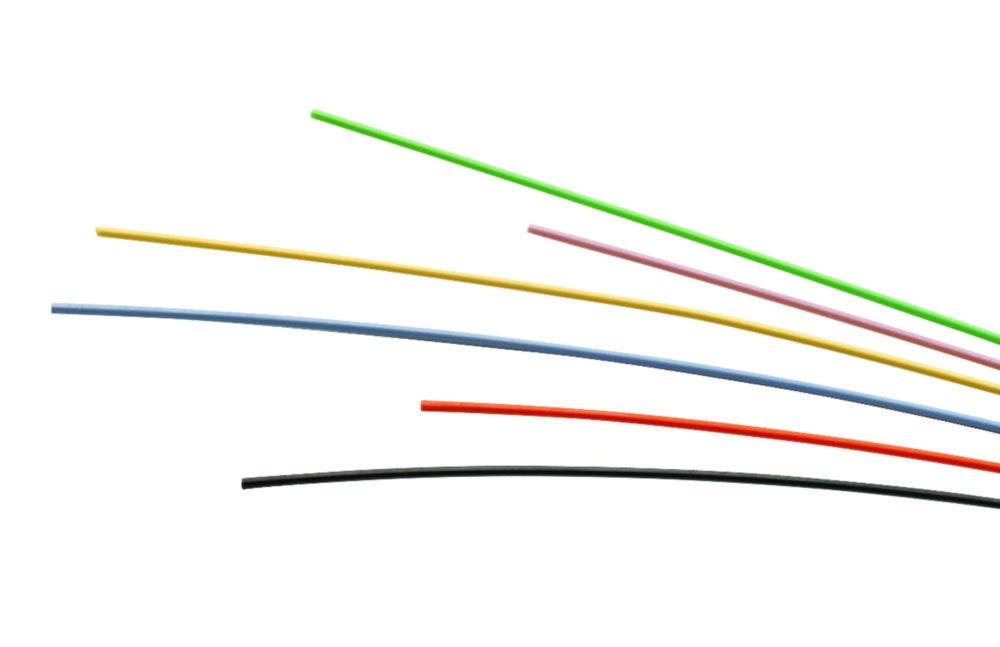

Trajan Scientific PEEK Tubing, Green 1/16" OD x 0.030" ID x 50' Length
Product overview
The Trajan Scientific PEEK Tubing in green, measuring 1/16" outer diameter (OD) and 0.030" inner diameter (ID) over a 50-foot length, is engineered for high-performance liquid chromatography (HPLC) and other analytical applications. Constructed from high-quality PEEK (Polyether Ether Ketone), this tubing offers exceptional chemical resistance and mechanical strength, making it ideal for use in demanding laboratory environments.
Key Features:
- Brand: Trajan Scientific
- Material: PEEK (Polyether Ether Ketone)
- Outer Diameter: 1/16 inch (1.6 mm)
- Inner Diameter: 0.030 inch (0.76 mm)
- Length: 50 feet (15.24 meters)
- Color: Green
- Maximum Pressure: 4,000 psi (276 bar)
- pH Range: 2 to 14
- Maximum Operating Temperature: 100°C
- Applications: Suitable for HPLC, LCMS, and automation systems
This tubing is designed to ensure reproducibility in chromatographic flow rates and results, thanks to its smooth internal surface and tight tolerances. Its bio-inert and bio-compatible nature makes it suitable for a wide range of analytical applications.
Frequently Asked Questions
1. What is the Trajan Scientific PEEK Tubing, Green 1/16" OD x 0.030" ID x 50' Length used for?
It is engineered for high-performance liquid chromatography (HPLC) and other analytical applications. Constructed from high-quality PEEK (Polyether Ether Ketone), this tubing offers exceptional chemical resistance and mechanical strength, making it ideal for use in demanding laboratory environments.
2. Is this product suitable for HPLC, LCMS, and automation systems?
Yes. It is designed for HPLC, LCMS, and automation systems, and offers an outer diameter of 1/16 inch (1.6 mm) and an inner diameter of 0.030 inch (0.76 mm) to support this kind of work.
3. What outer diameter and inner diameter does this product have?
It has an outer diameter of 1/16 inch (1.6 mm), an inner diameter of 0.030 inch (0.76 mm) and a length of 50 feet (15.24 meters).
4. What is this product made from and what features does it include?
It is made from PEEK (Polyether Ether Ketone). It also offers green and tube length 15 m.
Product Specifications
- HS Code #39173200
- ColourGreen
- Ext. Ø1.6 mm
- Int. Ø0.76 mm
- Length15 m
- MaterialPEEK
- Max. temp. resistance100 °C
- Operating pressure276 bar
- Temperature resistance100 °C
- UNSPSC41105108
