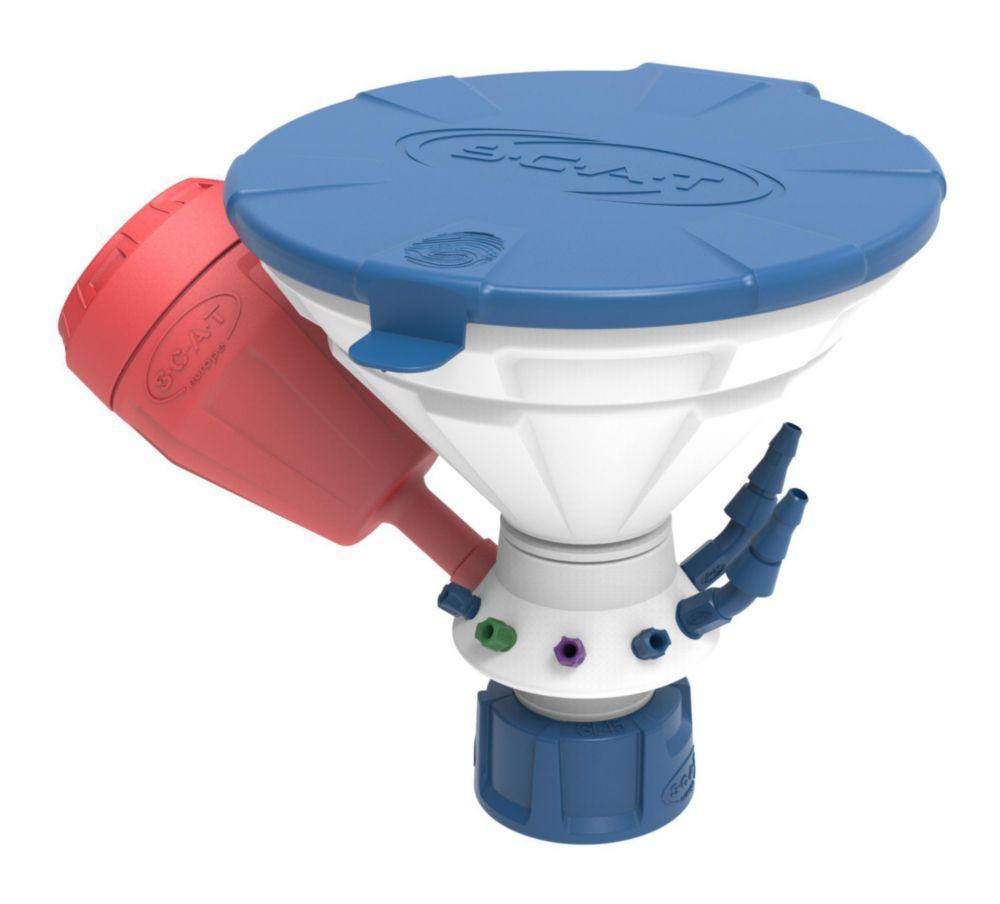

SCAT Universal Waste Hub "JAN" – GL45 Safety Funnel, 4x 1.6/2.3/3.2 mm OD

The SCAT Universal Waste Hub "JAN" – GL45 Safety Funnel is designed to offer safe and efficient solvent waste disposal in laboratories. Compatible with GL45-threaded containers, it provides a closed, odor-free system for collecting HPLC and other liquid waste. The system consists of a funnel with a hinged lid and sealing ring mounted on a SafetyWasteCap, integrated with an exhaust air filter to prevent vapor release. Hose olives made of PP accommodate tubing with inner diameters from 5 to 11.5 mm, while a removable sieve ensures effective filtration. The four integrated ports (1.6/2.3/3.2 mm OD) allow for simultaneous waste line connections, supporting a clean and multi-source disposal setup.

Key Features:

• Brand: SCAT
• Model: Universal Waste Hub "JAN"
• Thread Compatibility: GL45
• Connection Ports: 4x 1.6/2.3/3.2 mm OD
• Cap Type: SafetyWasteCap with integrated exhaust air filter
• Funnel: Hinged lid with sealing ring for vapor-tight operation
• Filtration: Removable sieve for particulate retention
• Material: High-grade, chemically resistant construction
• Hose Compatibility: Hose olives (PP) for tubing I.D. 5 to 11.5 mm
• Application: Safe disposal of solvent and sample waste from HPLC units and other systems without odor emissions
• Design: Supports capillary connections for versatile lab use

Scope of Supply:

• Safety funnel
• 3 hose olives (NPT 1/8")
• 3 blind fittings (NPT 1/8")
• Fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm
• 4 x blind fittings (UNF 1/4")
• 1 x blind fitting GL 14
• Exhaust filter size M

The SCAT Universal Waste Hub "JAN" – GL45 offers a secure and efficient system for solvent waste collection and vapor management, making it an essential safety tool in modern laboratories.
