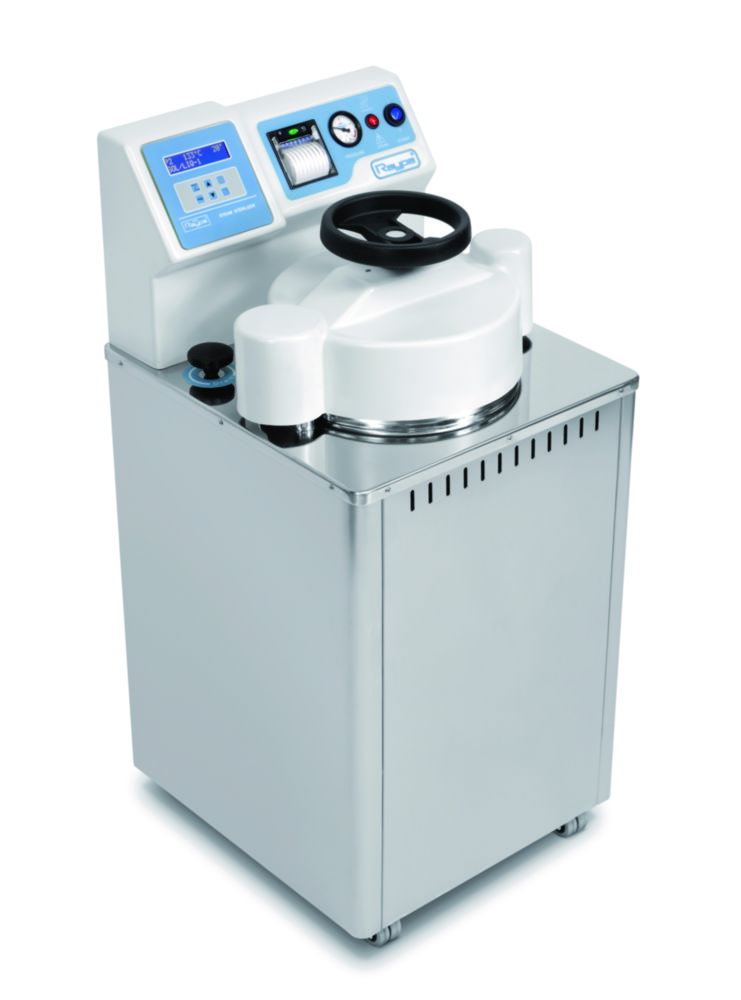

Automatic autoclaves AES-50
Sold by: John Morris Scientific NZ
Available Soon
Part #: 6.267 578Manufacturer #: AES-50
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
These autoclaves are microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely programmable.
- On request also available with with vacuum pump and steam generator
- Agar modus (40 °C to 80 °C)
- RS 232 interface
- Timer
- Programmable auto-start (24 h)
- Fully automatic functions
- Case and lid shrouding are AISI 304 stainless steel
- Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
- Electrical heating with protected heating elements in the interior of the chamber
- Safety pressure valve
- Safety thermostat
- Automatic steam controlled by microprocessor
- Manual valves for emptying the sterilisation chamber and for draining steam
Product Specifications
- HS Code #84192000
- Dimensions (WxH)300 x 710 mm
- Ext. dim. (WxDxH)505 x 580 x 1,290 mm
- Ext. depth580 mm
- Ext. height1290 mm
- Ext. width505 mm
- Power supply frequency50/60 Hz
- Heating capacity2800 W
- Height int.710 mm
- Int. Ø300 mm
- LoadingVertical
- Max. temperature134 °C
- Max. voltage230 V
- Min. temperature100 °C
- Nominal capacity50 l
- Power supply230 V, 50/60 Hz
- Temperature100 ... 134 °C
- TypeAES-50
- Type of auxiliary energyMains connection
- Weight65 kg
Downloads
- Raypa Stericlav Autoclaves Brochure Data SheetDownload
