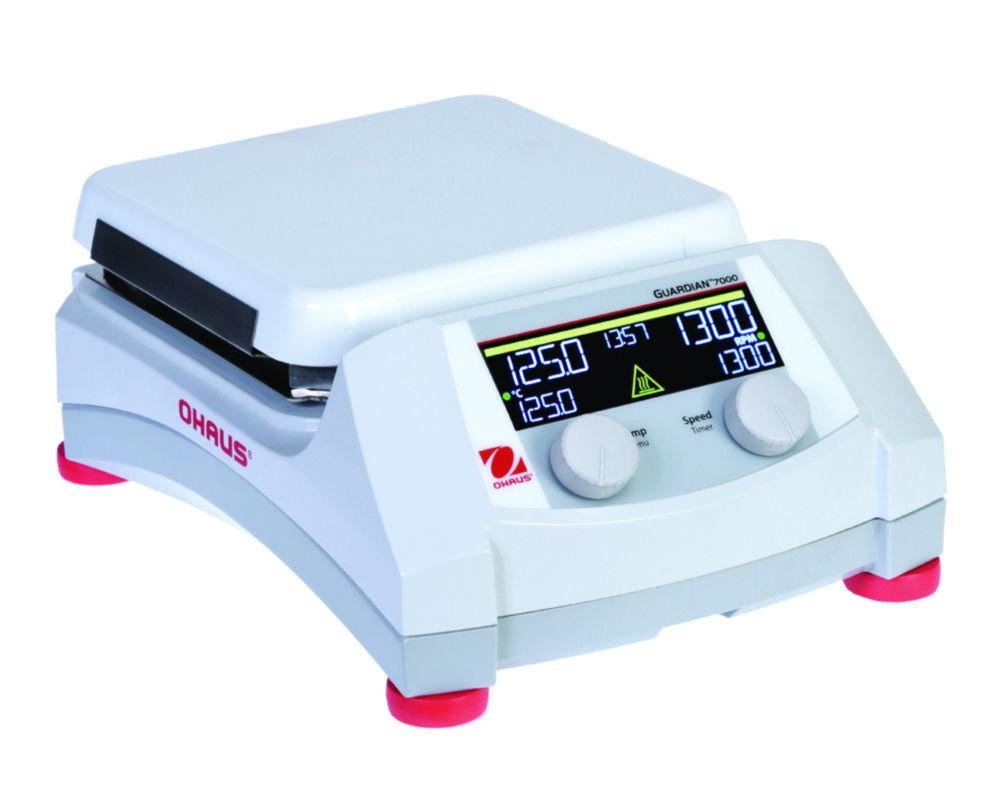

Ohaus Guardian™ 7000 Hotplate-Stirrer e-G71HS07C, 15L Ceramic Plate, 178×178 mm

Brand:OHAUS

Depth

Depth working area

Dimensions (WxDxH)

Heating capacity

Max. stirring capacity

Type

Weight

Width

Width working area

Working area (WxD)

Specifications

Compare models
Colour housing
White
Depth
309 mm
Depth working area
178 mm
Dimensions (WxDxH)
223 x 309 x 122 mm
Display
Digital
Power supply frequency
50/60 Hz
Heating capacity
1242 W
Heating temperature
RT +5 ... 500 °C
Height
122 mm
IP code
IP 21

NZ $2736.19

Inc. GST

Available soon

Product description

The Ohaus Guardian 7000 Hotplate-Stirrer e-G71HS07C is engineered for high-performance heating and stirring in laboratory settings. Featuring a 178×178 mm ceramic plate, it offers a 15L capacity with a temperature range from ambient +5°C to 500°C and a stirring speed up to 1,600 rpm. This model is equipped with advanced safety features, including SmartHeat™, SafetyHeat™, SmartPresence™, and SmartLink™ technologies, ensuring optimal performance and user safety. The digital control interface with a backlit LCD display provides intuitive operation, while the chemical-resistant SmartHousing™ design facilitates easy cleaning and durability.

Key Features:

  • Brand: Ohaus
  • Capacity: 15L
  • Plate Construction: Ceramic
  • Plate Size: 178×178 mm
  • Temperature Range: Ambient +5°C to 500°C
  • Speed Range: 60 rpm to 1,600 rpm
  • Safety Features: SmartHeat™, SafetyHeat™, SmartPresence™, SmartLink™
  • Control: Digital with backlit LCD display
  • Dimensions: 309 mm (W) x 223 mm (D) x 122 mm (H)
  • Weight: 2.6 kg
  • Power Supply: 230V, 50/60 Hz
  • Operating Temperature: SmartRate feature to select fast or slow temperature and speed ramp rates
  • Cool-Touch Housing: SmartHousing stays cool to the touch and is chemical-resistant
  • Timer: 1 min to 99 h 59 min

Scope of Supply:

  • Magnetic stirrer
  • Temperature sensor
  • In-use cover

This hotplate-stirrer is ideal for applications requiring precise temperature control and efficient stirring in a compact and robust design.

Downloads

Compare similar models

Guardian 7000 Hotplate stirrer e-G71HS07C, 15 L, Ceramic platte 178x178 mm

Manufacturer P/N

30500603

Part Number

6.312 903

Manufacturer

OHAUS

Depth

309 mm

Guardian 7000 Hotplate-stirrer e-G71HS10C, 18 L, Ceramic plate 254x254 mm

Manufacturer P/N

30500613

Part Number

6.312 904

Manufacturer

OHAUS

Depth

415 mm

Frequently asked questions

It is engineered for high-performance heating and stirring in laboratory settings. Featuring a 178×178 mm ceramic plate, it offers a 15L capacity with a temperature range from ambient +5°C to 500°C and a stirring speed up to 1,600 rpm. This model is equipped with advanced safety features, including SmartHeat™, SafetyHeat™, SmartPresence™, and SmartLink™ technologies, ensuring optimal performance and user safety. The digital control interface with a backlit LCD display provides intuitive operation, while the chemical-resistant SmartHousing™ design facilitates easy cleaning and durability.
