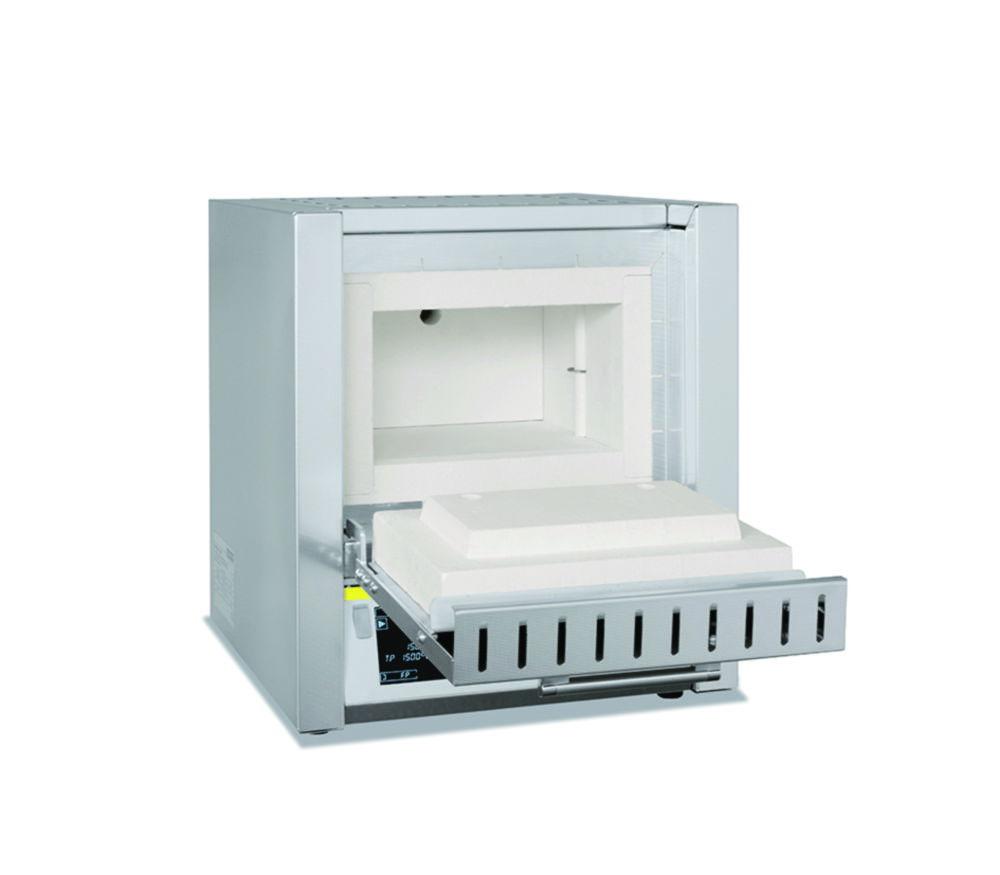

Nabertherm Muffle Furnace L 9/14/C550, Max Temperature 1400°C with Fiber Insulation and Flap Door
Product overview
The Nabertherm Muffle Furnace L 9/14/C550 is designed for high-performance heat treatment, offering a maximum temperature of 1400°C. Engineered with fiber insulation, it provides excellent thermal efficiency and energy savings. The flap door design allows for easy access and secure operation, making it ideal for applications like ashing, sintering, and material heat treatment. This furnace is a reliable choice for laboratories, research institutions, and industrial settings requiring precise temperature control.
Key Features:
- Brand: Nabertherm
- Model: L 9/14/C550
- Max Temperature: 1400°C, perfect for high-temperature applications
- Insulation: High-quality fiber insulation for energy-efficient operation
- Flap Door: Convenient flap door for easy access and enhanced safety
- Applications: Ideal for ashing, sintering, and heat treatment in laboratories and industrial applications
- Compact Design: Space-saving and robust construction suitable for various laboratory and industrial needs
The Nabertherm L 9/14/C550 Muffle Furnace provides precise temperature control, energy efficiency, and reliability, making it the perfect choice for high-temperature applications in various sectors.
Frequently Asked Questions
1. What is the Nabertherm Muffle Furnace L 9/14/C550, Max Temperature 1400°C with Fiber Insulation and Flap Door used for?
It is designed for high-performance heat treatment, offering a maximum temperature of 1400°C. Engineered with fiber insulation, it provides excellent thermal efficiency and energy savings. The flap door design allows for easy access and secure operation, making it ideal for applications like ashing, sintering, and material heat treatment. This furnace is a reliable choice for laboratories, research institutions, and industrial settings requiring precise temperature control.
2. Is this product suitable for ashing, sintering, and heat treatment in laboratories and industrial applications?
Yes. It is designed for ashing, sintering, and heat treatment in laboratories and industrial applications, and offers a max temperature of 1400°C, perfect for high-temperature applications to support this kind of work.
3. What max temperature does this product have?
It has a max temperature of 1400°C, perfect for high-temperature applications.
4. What insulation and flap door does this product offer?
It offers high-quality fiber insulation for energy-efficient operation, convenient flap door for easy access and enhanced safety, space-saving and robust construction suitable for various laboratory and industrial needs and max. temperature 1400 °C (recommended working temperature for processes with longer dwell times is 1300 °C).
Product Specifications
- HS Code #85141980
- Depth int.250 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)530 x 525 x 630 mm
- Ext. depth525 mm
- Ext. height630 mm
- Ext. width530 mm
- Power supply frequency50/60 Hz
- Height int.170 mm
- Int. Dim. (WxDxH)250 x 250 x 170 mm
- Int. width250 mm
- Max. temperature1400 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity9 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity3200 W
- TypeL 9/14/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight55 kg
Downloads
- LabFriend 4.665 089 nabertherm-muffelovner-brosjyre.pdfDownload
Products related to this item (5)
product | Mfr # | Part # | Product name | Type of door | Plug type | Price | Availability | |
L-095K4AL | 4.665 083 | Nabertherm Muffle Furnace L 9/14/B510, Max Heat Power 1400°C with Fiber Insulation and Flap Door | Flap door | EU | €8695.15 | |||
L-155K4ANL1 | 4.665 085 | Nabertherm Muffle Furnace L 15/14/B510, Max Heat Power 1400°C with Fiber Insulation and Flap Door | Flap door | EU | €9214.95 | |||
L-055K4AO | 4.665 088 | Nabertherm Muffle Furnace L 5/14/C550, Max Heat Power 1400°C with Fiber Insulation and Flap Door | Flap door | EU | €8695.15 | |||
L-055K4AL | 4.665 082 | Nabertherm Muffle Furnace L 5/14/B510 Heatpower Max., 1400°C, With Fiber Insulation and Flap Door | Flap door | EU | €7670.50 | |||
L-155K4AO | 4.665 090 | Nabertherm Muffle Furnace L 15/14/C550, Max Temperature 1400°C with Fiber Insulation and Flap Door | Flap door | EU | €10239.60 |
