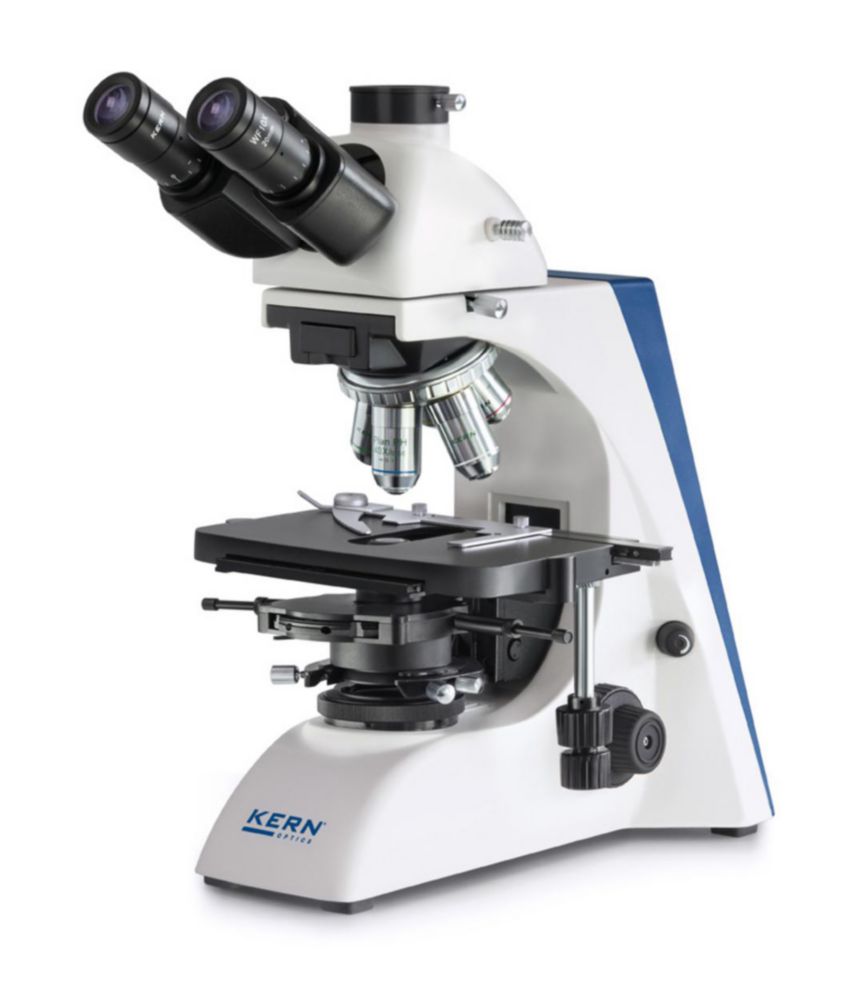

Kern & Sohn Phase Contrast Microscope Trinocular InfPlan 4 InfPlanPH 10/20/40/100, WF10x20, 3W LED

Light type

Type

Specifications

Compare models
Depth
200 mm
Dimensions (WxDxH)
390 x 200 x 400 mm
Height
400 mm
Inclination angle tube
30°
Light type
LED
Magnification eyepieces
HWF 10x/20 mm
Magnification objectives
4x, PH10x, PH20x, PH40x, PH100x
Revolving nosepiece
5-fold
Tube
Trinocular
Type
OBN 159

NZ $8547.00

Inc. GST

Available soon

Product description

The Kern & Sohn Phase Contrast Microscope Trinocular InfPlan 4 InfPlanPH 10/20/40/100, WF10x20, 3W LED is a high-performance microscope designed for detailed observation of transparent and low-contrast specimens. Featuring infinity-corrected optics and planachromatic objectives, it delivers sharp, clear images across the entire field of view. The trinocular head allows for easy camera integration, making it ideal for documentation and analysis.

Key Features:

  • Brand: Kern & Sohn
  • Optical System: Infinity-corrected optics with InfPlanPH objectives
  • Eyepieces: WF10x/20 mm
  • Objectives: 4x, PH10x, PH20x, PH40x, PH100x
  • Illumination: 3W LED transmitted light with adjustable brightness
  • Condenser: Phase contrast condenser with aperture and field diaphragms
  • Focusing: Coaxial coarse and fine focusing mechanism
  • Tube Type: Trinocular, 30° inclined, 360° rotatable
  • Dimensions (W×D×H): 390×200×400 mm
  • Weight: Approximately 9 kg
  • Power Supply: Mains connection
  • Centre and height adjustable PH universal rotary condenser, aperture diaphragm and field diaphragm
  • Coaxial coarse and fine focusing
  • OBN 158: Halogen lighting 20 W
  • OBN 159: LED lighting 3 W

Scope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual

This microscope is ideal for applications in microbiology, cell biology, and clinical diagnostics, providing high-quality imaging for routine and advanced laboratory tasks.

Accessories

Tablet camera ODC 241

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUODC 241ODC 2416.274 787NZ $2850.98

Tablet camera ODC 251

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUODC 251ODC 2514.711 855NZ $3459.15

Compare similar models

Phase contrast microscope Trinocular InfPlan 4-InfPlanPH 10/20/40/100; WF10x20; 3W LED

Manufacturer P/N

OBN 159

Part Number

6.491 267

Manufacturer

KERN & SOHN

Light type

LED

Phase contrast microscope OBN 158 6 V, 20W Halogen (transmitted)

Manufacturer P/N

OBN 158

Part Number

4.666 528

Manufacturer

KERN & SOHN

Light type

Halogen

More items to explore

Light microscopes Professional Line OBN 13 sets, with C-mount camera

ProductTypeInterfacesMfr#Part#AvailabilityPrice
OBN 135C832USB 3.0OBN 135C8324.676 276NZ $6511.86
OBN 135C825USB 2.0OBN 135C8254.676 275NZ $6075.76

Fluorescence microscopes Professional Line OBN 141

ProductLight typeTypeMfr#Part#AvailabilityPrice
LEDOBN 141OBN 1414.676 278NZ $14940.19

Frequently asked questions

It is a high-performance microscope designed for detailed observation of transparent and low-contrast specimens. Featuring infinity-corrected optics and planachromatic objectives, it delivers sharp, clear images across the entire field of view. The trinocular head allows for easy camera integration, making it ideal for documentation and analysis.
