Representative Image

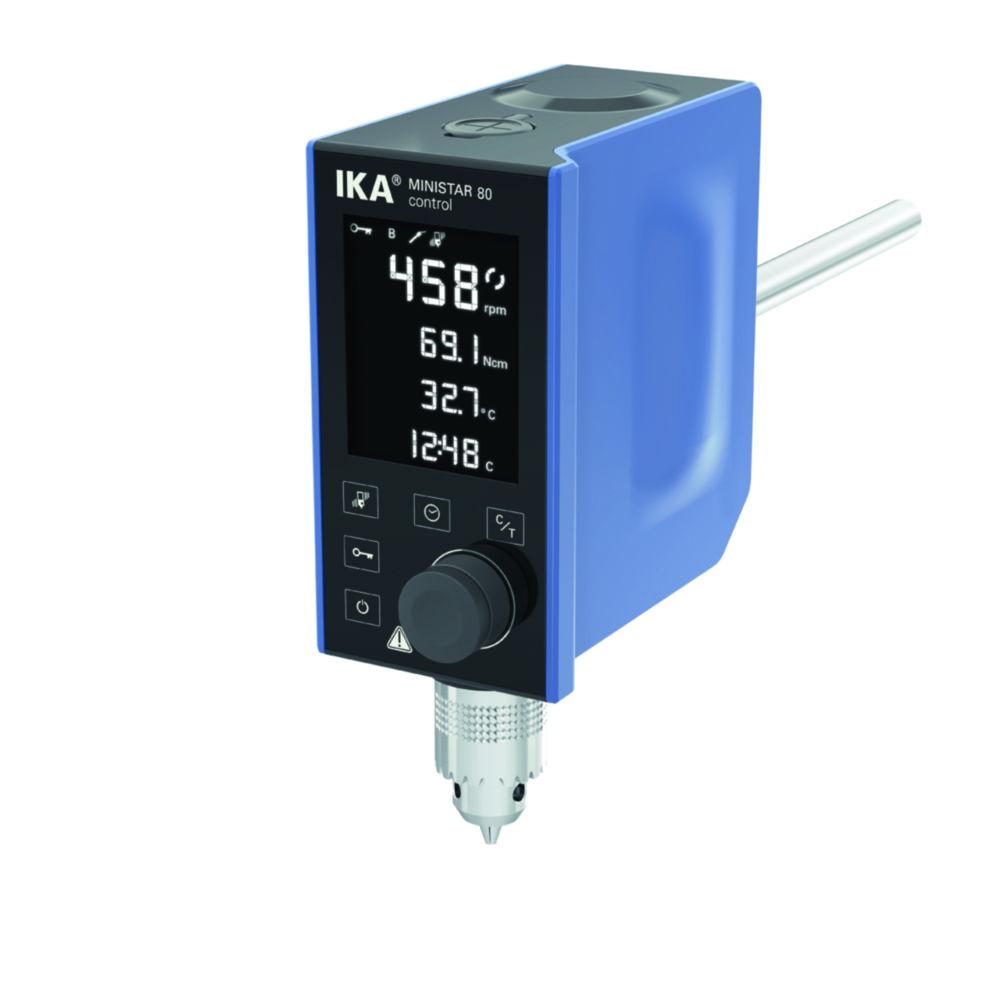

IKA Electronic Overhead Stirrer Ministar 80 Control, IP 54

Brand:IKA

Max. speed

Max. stirring capacity

Max. torque

Max. Viscosity

Plug type

Speed

Type

Weight

Specifications

Compare models
HS Code #
84798200
Clamping range
0.5 ... 8 mm
Depth
154 mm
Dimensions (WxDxH)
70 x 154 x 193 mm
Display
Digital
Power supply frequency
50/60 Hz
Height
193 mm
IP code
IP 54
Max. clamping width
8 mm
Max. speed
500 1/min
Max. stirring capacity
50 l

NZ $5020.53

Inc. GST

Available soon

Product description

The IKA Electronic Overhead Stirrer Ministar 80 Control, IP 54 is a powerful and reliable stirring device designed for precise mixing in laboratory environments. With a robust design and an IP 54 protection rating, this overhead stirrer ensures dust and water resistance, making it suitable for demanding lab conditions. It features an adjustable speed up to 80 rpm and a digital control system for accurate speed regulation, delivering consistent and optimal mixing results.

Key Features:

  • Brand: IKA
  • Model: Ministar 80 Control
  • Speed: Adjustable up to 80 rpm for precise mixing
  • Protection Rating: IP 54 for dust and water resistance
  • Control: Digital control system for accurate speed adjustment
  • Display: Hardened glass display for maximum visibility and chemical resistance
  • Safety: Vibration sensors detect deviations and automatically stop the process
  • Connectivity: USB and Bluetooth interfaces for documentation and firmware updates
  • Software Integration: Compatible with labworldsoft®
  • Temperature Measurement: PT1000 sensor with display for direct medium temperature reading
  • Speed Control: Continuously adjustable speed with microprocessor-controlled governor for consistent speed despite viscosity changes
  • Additional Features: Key lock function, integrated timer, chemical-resistant housing
  • Warranty: 10 years

Scope of supply: Overhead stirrer including temperature sensor PT1000

The IKA Ministar 80 Control IP 54 is an ideal solution for laboratories requiring efficient, precise, and durable stirring equipment for a variety of mixing applications.

Downloads

Accessories

Keyless chuck for overhead stirrers

ProductTypeClamping rangeMfr#Part#AvailabilityPrice
R 600.5 ... 10 mm00038895006.258 335NZ $346.87
R 60.10.5 ... 8 mm00250078214.679 590NZ $346.87

Compare similar models

Electronic overhead stirrer Ministar 80 control IP 54
Available soon
IKA Electronic Overhead Stirrer Ministar 80 Control, IP 54

NZ $5020.53

Inc. GST

Manufacturer P/N

0025001990

Part Number

6.310 246

Manufacturer

IKA

Max. speed

500 1/min

Electronic overhead stirrer Ministar 20 control IP 54, 193x154x70mm

Manufacturer P/N

0025001988

Part Number

6.289 511

Manufacturer

IKA

Max. speed

2000 1/min

Electronic overhead stirrer Ministar 40 control IP 54
Available soon
IKA Electronic Overhead Stirrer Ministar 40 Control, IP 54

NZ $4653.12

Inc. GST

Manufacturer P/N

0025001989

Part Number

6.310 245

Manufacturer

IKA

Max. speed

1000 1/min

Electronic overhead stirrer MINISTAR 40 control UK plug
Available soon
Electronic overhead stirrer MINISTAR 40 control UK plug

NZ $4653.12

Inc. GST

Manufacturer P/N

0025005597

Part Number

4.715 640

Manufacturer

IKA

Max. speed

1000 1/min

Electronic overhead stirrer Ministar 80 control S2 IP 54, with UK plug

Manufacturer P/N

0025005610

Part Number

6.274 068

Manufacturer

IKA

Max. speed

500 1/min

Electronic overhead stirrer MINISTAR 80 control CH plug
Available soon
Electronic overhead stirrer MINISTAR 80 control CH plug

NZ $5020.53

Inc. GST

Manufacturer P/N

0025005611

Part Number

4.715 727

Manufacturer

IKA

Max. speed

500 1/min

Electronic overhead stirrer MINISTAR 40 control CH plug
Available soon
Electronic overhead stirrer MINISTAR 40 control CH plug

NZ $4653.12

Inc. GST

Manufacturer P/N

0025005598

Part Number

4.715 725

Manufacturer

IKA

Max. speed

1000 1/min

Electronic overhead stirrer MINISTAR 20 control CH plug
Available soon
Electronic overhead stirrer MINISTAR 20 control CH plug

NZ $4283.43

Inc. GST

Manufacturer P/N

0025005586

Part Number

4.715 723

Manufacturer

IKA

Max. speed

2000 1/min

Electronic overhead stirrer MINISTAR 20 control UK plug
Available soon
Electronic overhead stirrer MINISTAR 20 control UK plug

NZ $4283.43

Inc. GST

Manufacturer P/N

0025005585

Part Number

4.715 638

Manufacturer

IKA

Max. speed

2000 1/min

Frequently asked questions

It is a powerful and reliable stirring device designed for precise mixing in laboratory environments. With a robust design and an IP 54 protection rating, this overhead stirrer ensures dust and water resistance, making it suitable for demanding lab conditions. It features an adjustable speed up to 80 rpm and a digital control system for accurate speed regulation, delivering consistent and optimal mixing results.
