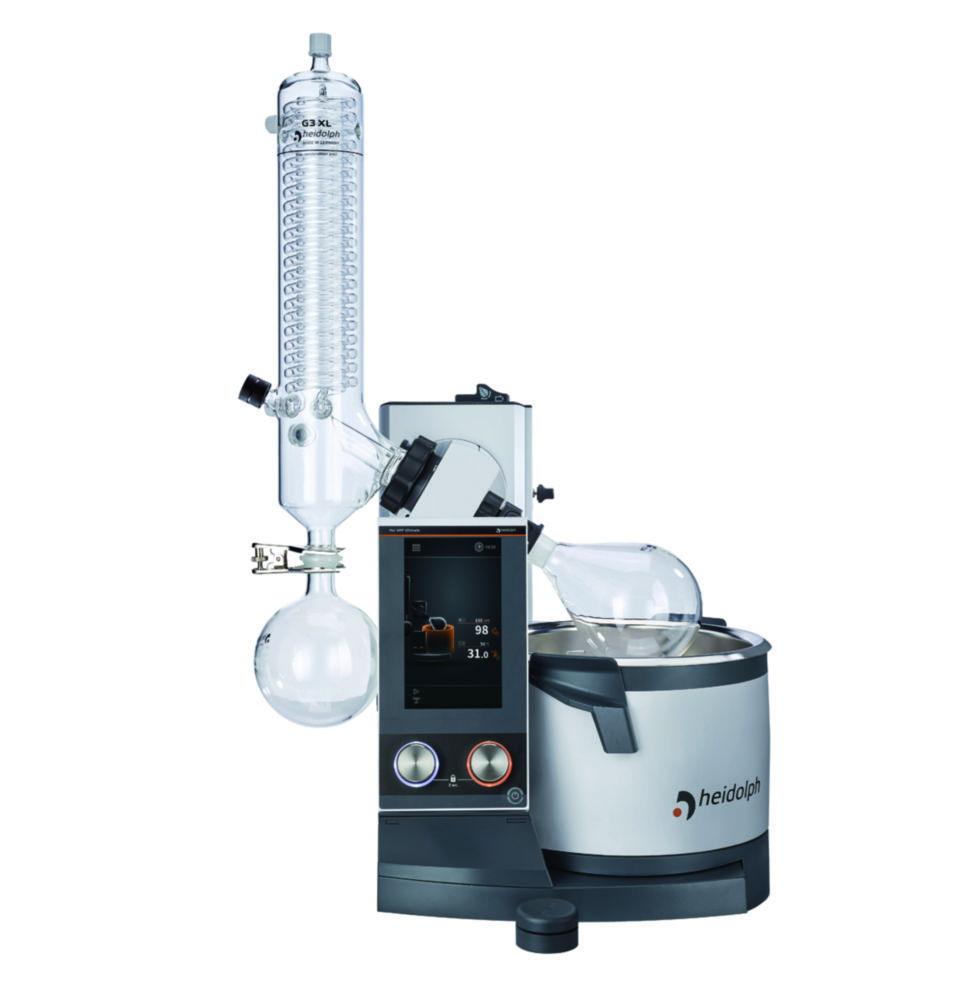

Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G3 XL with Hand Lift

The Heidolph Hei-VAP Ultimate HL/G3 XL with Hand Lift is designed for high-efficiency solvent evaporation in laboratory settings. Featuring a G3 XL vertical condenser with a 2200 cm² cooling surface and a manual hand lift for precise flask handling, this model ensures optimal performance and safety.

• Brand: Heidolph
• Model: Hei-VAP Ultimate HL/G3 XL with Hand Lift
• Glassware: G3 XL vertical condenser
• Cooling Surface: 2200 cm²
• Lift Type: Manual hand lift
• Control System: 7" touch display with USB, micro SD, LAN/RS 232 interfaces (Lab 4.0-ready)
• Rotation Speed: 10–280 rpm
• Heating Capacity: 1300 W
• Temperature Range: Ambient to 210 °C
• Heating Bath Volume: 4.5 L
• Max. Flask Size: 5 L
• Safety Features: Overheat protection with cut-off at 5 °C over set temperature via separate PT 1000 sensor
• Application: Suitable for chemical, pharmaceutical, and research laboratories

Enhance laboratory efficiency with the Heidolph Hei-VAP Ultimate HL/G3 XL—combining advanced features and user-friendly design for precise solvent evaporation.
