Representative Image

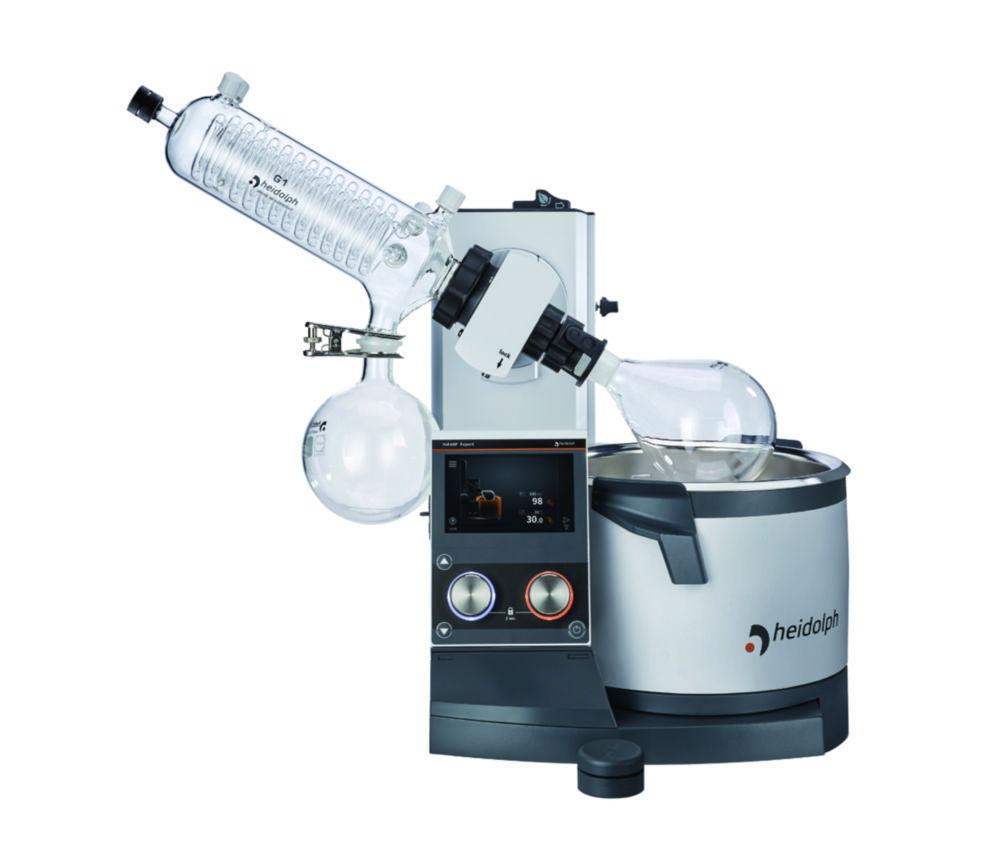

Heidolph Rotary Evaporator Hei-VAP Expert ML/G1, with Motor Lift

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Diagonal
Cooling surface
1400 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 887 mm
Power supply frequency
50/60 Hz
Glassware
Without coating
Height
887 mm
Lift
Electrical
Lifting path
155 mm
Max. speed
280 1/min

NZ $13769.95

Inc. GST

Available soon

Product description

The Heidolph Hei-VAP Expert ML/G1 with Motor Lift is designed for efficient and precise solvent evaporation in laboratory settings. Featuring a G1 diagonal condenser with a 1400 cm² cooling surface and a motorized lift for effortless flask handling, this model ensures optimal performance and safety.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Expert ML/G1 with Motor Lift
  • Glassware: G1 diagonal condenser
  • Cooling Surface: 1400 cm²
  • Lift Type: Motorized lift
  • Control System: 5" LCD color graphic display
  • Rotation Speed: 10–280 rpm
  • Heating Capacity: 1300 W
  • Temperature Range: Ambient to 210 °C
  • Heating Bath Volume: 4.5 L
  • Max. Flask Size: 5 L
  • Safety Features: Overheat protection with cut-off at 5 °C over set temperature via separate PT 1000 sensor
  • Interfaces: USB and Micro SD for software updates and data transfer
  • Application: Suitable for chemical, pharmaceutical, and research laboratories

Enhance laboratory efficiency with the Heidolph Hei-VAP Expert ML/G1—combining advanced features and user-friendly design for precise solvent evaporation.

Compare similar models

Rotary evaporator Hei-VAP Expert ML/G1 with motor lift

Manufacturer P/N

574-01100-00

Part Number

4.668 984

Manufacturer

Heidolph

Glassware

Without coating

Rotary evaporator Hei-VAP Expert ML/G1B with motor lift, plastic-coated glass sets

Manufacturer P/N

574-01110-00

Part Number

4.668 989

Manufacturer

Heidolph

Glassware

Coated

Hei-VAP Expert ML G1B CH-plug
Available soon
Heidolph Hei-VAP Expert ML G1B, CH Plug

NZ $14322.21

Inc. GST

Manufacturer P/N

574-01110-04

Part Number

4.703 359

Manufacturer

Heidolph

Glassware

Coated

Hei-VAP Expert ML G1 UK-plug
Available soon
Heidolph Hei-VAP Expert ML G1, UK Plug

NZ $13769.95

Inc. GST

Manufacturer P/N

574-01100-03

Part Number

4.703 356

Manufacturer

Heidolph

Glassware

Without coating

Hei-VAP Expert ML G1B UK-plug
Available soon
Heidolph Hei-VAP Expert ML G1B, UK Plug

NZ $14322.21

Inc. GST

Manufacturer P/N

574-01110-03

Part Number

4.703 358

Manufacturer

Heidolph

Glassware

Coated

Hei-VAP Expert ML G1 CH-plug
Available soon
Heidolph Hei-VAP Expert ML G1, CH Plug

NZ $13769.95

Inc. GST

Manufacturer P/N

574-01100-04

Part Number

4.703 357

Manufacturer

Heidolph

Glassware

Without coating

More items to explore

Rotary Evaporators Hei-VAP Expert, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B573-01510-004.668 982NZ $16535.81
EUG5573-01500-004.668 968NZ $15406.19
USG5573-01500-016.492 699NZ $15406.19
CHG5B573-01510-044.703 331NZ $16535.81
UKG5573-01500-034.703 328NZ $15406.19
UKG5B573-01510-034.703 330NZ $16535.81
CHG5573-01500-044.703 329NZ $15406.19

Rotary Evaporators Hei-VAP Expert Control, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B573-02510-004.669 001NZ $19906.41
EUG5573-02500-004.668 996NZ $18776.79
UKG5B573-02510-034.703 350NZ $19906.41
CHG5B573-02510-044.703 351NZ $19906.41
UKG5573-02500-034.703 348NZ $18776.79
CHG5573-02500-044.703 349NZ $18776.79

Frequently asked questions

It is designed for efficient and precise solvent evaporation in laboratory settings. Featuring a G1 diagonal condenser with a 1400 cm² cooling surface and a motorized lift for effortless flask handling, this model ensures optimal performance and safety.
