Representative Image

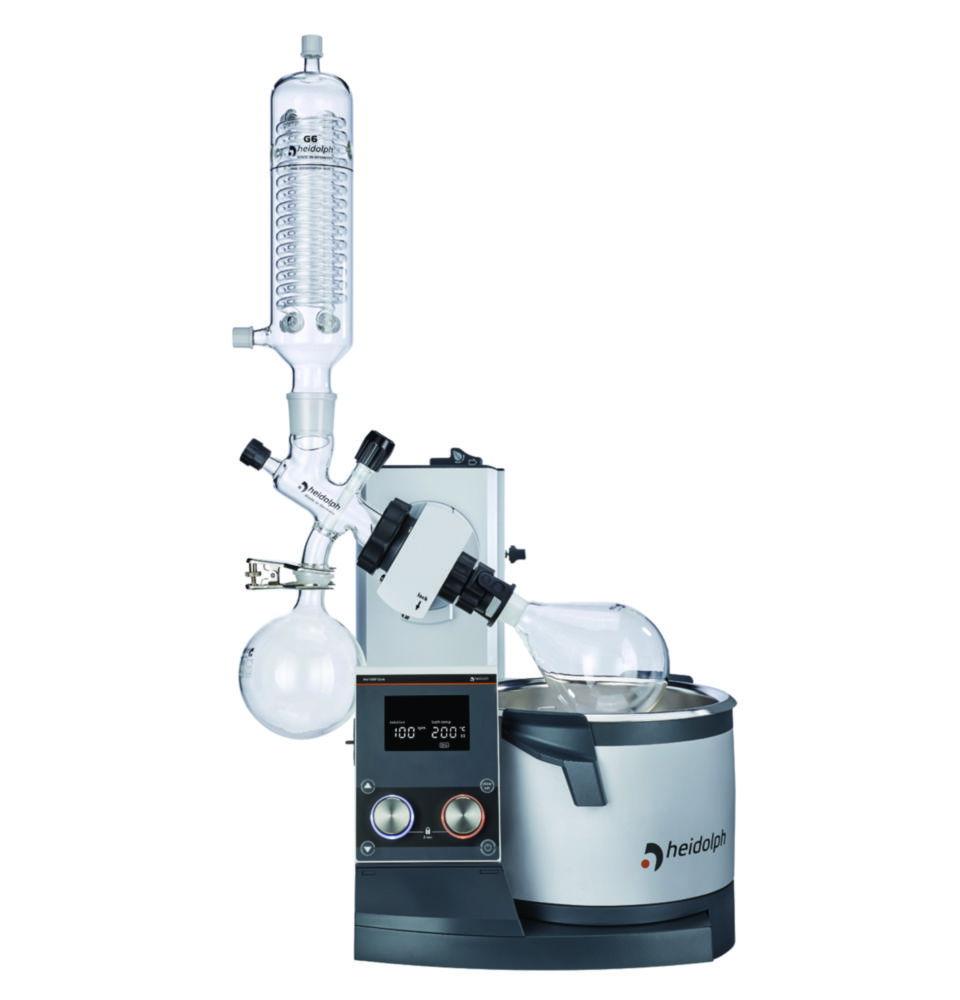

Heidolph Rotary Evaporator Hei-VAP Core ML G6-CH Motor Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
CH

NZ $15278.39

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G6-CH Motor Lift (CH-Plug) is designed for high-performance solvent evaporation with precision and ease. Featuring a motorized lift and CH-Plug compatibility, this model offers automated height adjustment, increasing convenience and reproducibility in distillation, concentration, and solvent recovery processes. Built with Heidolph’s trusted engineering, it's ideal for routine laboratory workflows requiring consistent, hands-free operation.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G6-CH with motor lift (CH-Plug)
  • Application: Ideal for evaporation, distillation, and concentration in research and industrial labs
  • Lift Mechanism: Motorized lift for automated and precise height control
  • Compatibility: CH-Plug for Swiss-standard electrical systems
  • Display: Clear digital display for monitoring current values with separate button for set values
  • Controls: Two separate operating knobs for adjusting rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Button stops all functions and lifts evaporator flask out of heating bath (motor lift models)
  • Design: Ergonomically optimized heating bath handles; grease-free operation due to innovative sealing technology
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Ventilation Cap: PTFE inlet and free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension; detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph rotary evaporator delivers superior evaporation efficiency with intuitive motorized operation, making it an essential tool for advanced lab environments.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675NZ $3806.48
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221NZ $257.87
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222NZ $282.98
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220NZ $214.51
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660NZ $378.82
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172NZ $337.74

Compare similar models

Rotary Evaporator Hei-VAP Core ML G6-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6-CH Motor Lift (CH-Plug)

NZ $15278.39

Inc. GST

Manufacturer P/N

572-01600-04

Part Number

4.666 141

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G6 motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6, Motor Lift (EU-Plug)

NZ $15278.39

Inc. GST

Manufacturer P/N

572-01600-00

Part Number

4.666 099

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G6-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6-UK Motor Lift (UK-Plug)

NZ $15278.39

Inc. GST

Manufacturer P/N

572-01600-03

Part Number

4.666 121

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G6B-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6B-CH Motor Lift (CH-Plug)

NZ $16145.57

Inc. GST

Manufacturer P/N

572-01610-04

Part Number

4.666 146

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G6B-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6B-UK Motor Lift (UK-Plug)

NZ $16145.57

Inc. GST

Manufacturer P/N

572-01610-03

Part Number

4.666 126

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G6B motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6B Motor Lift (EU-Plug)

NZ $16145.57

Inc. GST

Manufacturer P/N

572-01610-00

Part Number

4.666 104

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It is designed for high-performance solvent evaporation with precision and ease. Featuring a motorized lift and CH-Plug compatibility, this model offers automated height adjustment, increasing convenience and reproducibility in distillation, concentration, and solvent recovery processes. Built with Heidolph’s trusted engineering, it's ideal for routine laboratory workflows requiring consistent, hands-free operation.
