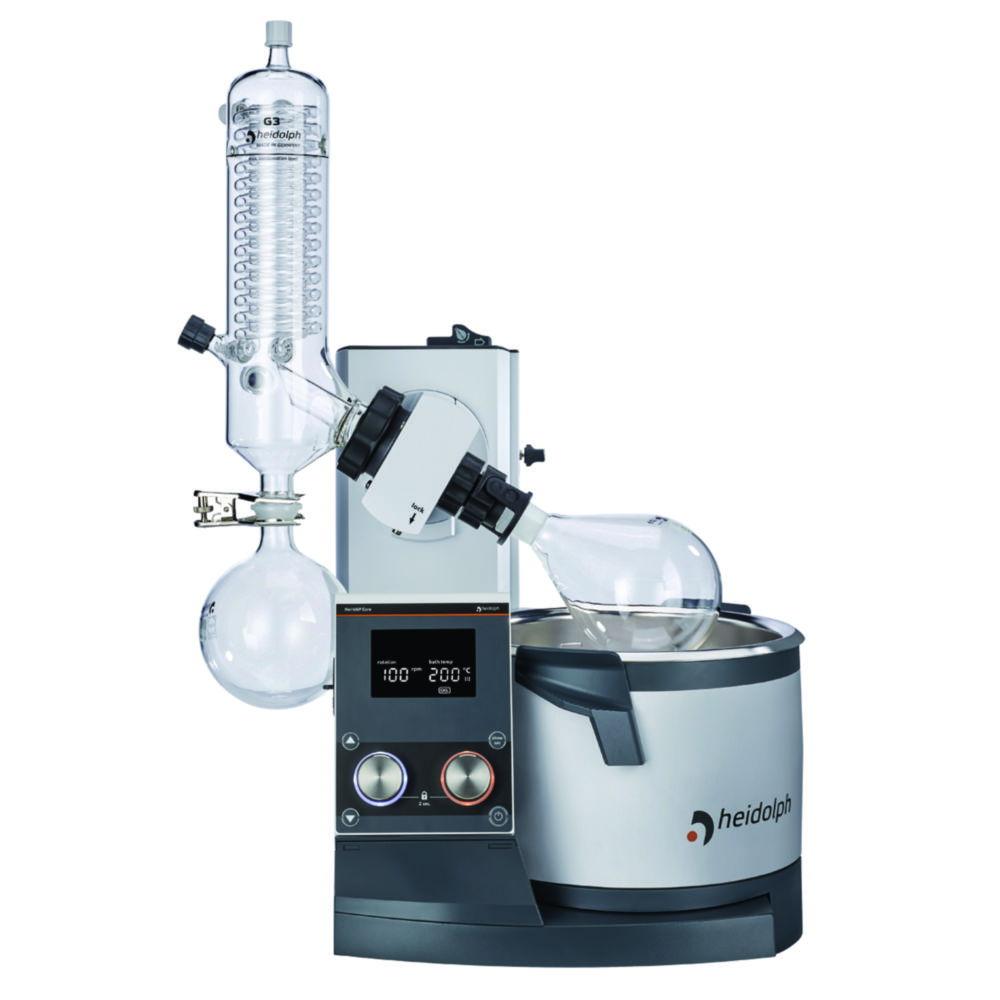

Heidolph Rotary Evaporator Hei-VAP Core ML G3B, Motor Lift (EU-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core ML G3B with motor lift provides precise and safe evaporation for a wide range of lab applications. Featuring the G3B glassware configuration and a smooth motor lift, it’s ideal for efficient solvent distillation and concentration processes.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core ML G3B
• Lift Mechanism: Motorized lift for easy and consistent operation
• Glassware Configuration: G3B vertical condenser with diagonal discharge
• Plug Type: EU plug
• Application: Ideal for standard distillation and solvent recovery in chemical and biological labs
• Display: Clear digital display for monitoring current values; separate button to display set values
• Controls: Two knobs for adjusting rotation speed and heating temperature with LED ring lights for activity indication
• Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when temperature exceeds 50 °C
• Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath (motor lift models only)
• Ergonomics: Heating bath with ergonomically optimized handles for secure handling
• Adjustability: Immersion depth adjustable up to 155 mm; flask tilt angle adjustable from 20° to 80°
• Sealing Technology: Grease-free operation with advanced sealing system
• Ventilation Cap: PTFE inlet, free of ground joints; optional replenishment valve available
• Optional Accessories: Cable extension; control panel can be detached for external use, e.g., outside fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-litre receiving flask
• 1-litre evaporating flask
• Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G3B is designed to ensure durability, reproducibility, and user-friendly operation in day-to-day lab work.
