Heidolph Microtiter Plate Shaker Titramax 100, Max. 4 Microtiter Plates, 1.5 mm Orbit, 245x285x125 mm

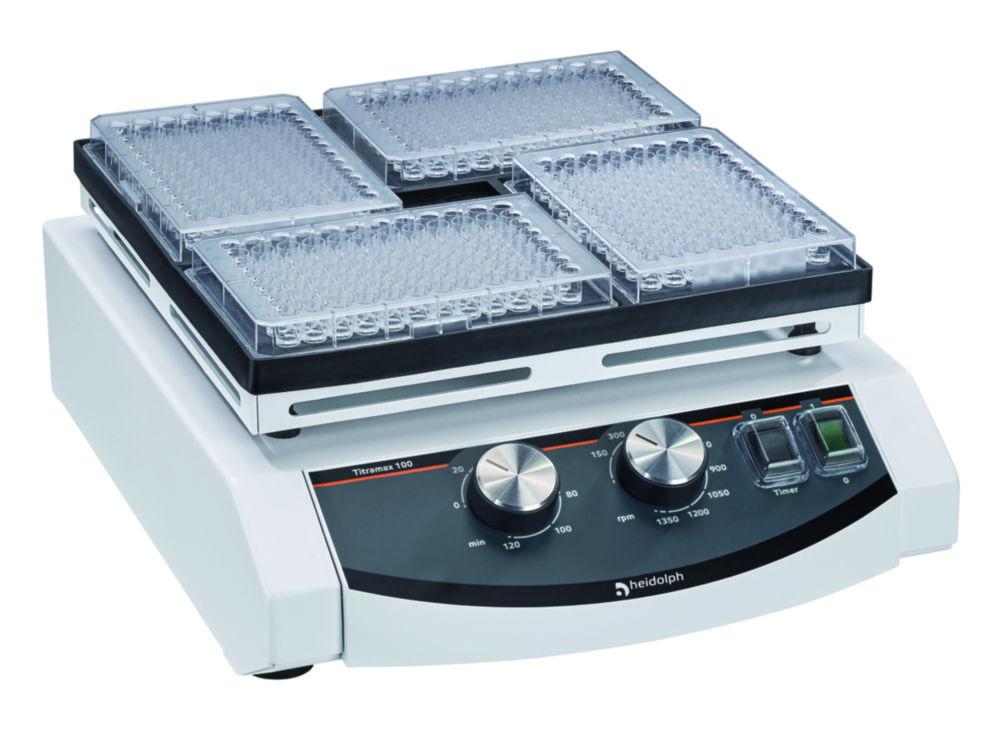

Representative image only

Heidolph Microtiter Plate Shaker Titramax 100, Max. 4 Microtiter Plates, 1.5 mm Orbit, 245x285x125 mm

Sold by: John Morris Scientific NZ
Available Soon
Part #: 9.839 831Manufacturer #: 544-11200-00
Estimated shipping time:Contact us via live chat or via contact us page

€1564.00

See the available (2) variant products

Product overview

The Heidolph Microtiter Plate Shaker Titramax 100 is a compact and efficient solution for shaking up to four microtiter plates simultaneously. With a 1.5 mm orbital motion and compact dimensions of 245x285x125 mm, this shaker ensures uniform mixing in each well, ideal for precise sample preparation and high-throughput analysis. It is well-suited for laboratories engaged in biological, chemical, or pharmaceutical research.

Key Features:

  • Brand: Heidolph
  • Capacity: Holds up to 4 microtiter plates
  • Orbit: 1.5 mm orbital motion for gentle and consistent mixing
  • Dimensions: 245 x 285 x 125 mm, compact and space-saving design
  • Application: Ideal for ELISA assays, cell culture, and sample incubation
  • Packaging: Complete shaker unit

This microtiter shaker is a dependable choice for any lab looking to improve throughput and consistency when working with standard microplates.



Frequently Asked Questions

1. What is the Heidolph Microtiter Plate Shaker Titramax 100, Max. 4 Microtiter Plates, 1.5 mm Orbit, 245x285x125 mm used for?

It is a compact and efficient solution for shaking up to four microtiter plates simultaneously. With a 1.5 mm orbital motion and compact dimensions of 245x285x125 mm, this shaker ensures uniform mixing in each well, ideal for precise sample preparation and high-throughput analysis. It is well-suited for laboratories engaged in biological, chemical, or pharmaceutical research.

2. Is this product suitable for ELISA assays, cell culture, and sample incubation?

Yes. It is designed for ELISA assays, cell culture, and sample incubation, and offers 1.5 mm orbital motion for gentle and consistent mixing and dimensions of 245 x 285 x 125 mm, compact and space-saving design to support this kind of work.

3. What orbit and dimensions does this product have?

It has 1.5 mm orbital motion for gentle and consistent mixing and dimensions of 245 x 285 x 125 mm, compact and space-saving design.

4. What capacity does this product offer?

It offers the following key features: holds up to 4 microtiter plates.

Product Specifications

  • HS Code #84798200
  • Depth310 mm
  • Dimensions (WxDxH)245 x 310 x 125 mm
  • Power supply frequency50/60 Hz
  • Height125 mm
  • IP codeIP 30
  • Max. loading capacity2 kg
  • Max. permitted ambient temp.31 °C
  • Max. relative humidity rate80 %
  • Max. speed1350 1/min
  • Max. voltage240 V
  • Min. permitted ambient temperature5 °C
  • Min. speed150 1/min
  • Min. voltage230 V
  • No. of plates4
  • Permitted ambient temperature5 ... 31 °C
  • Plug typeEU
  • Power supply230 ... 240 V, 50/60 Hz
  • Rated capacity25 W
  • Shaking stroke1.5 mm
  • Speed150 ... 1,350 1/min
  • TypeTitramax 100
  • Type of movementOrbital/vortex
  • UNSPSC41103818
  • Weight5.5 kg
  • Width245 mm
  • With timerYes

Downloads

  • LabFriend 9.839 831 At-a-glance-Titramax-interim-EN.pdfDownload
  • LabFriend 9.839 831 Heidolph Shakers and Mixers Brochure.pdfDownload
  • LabFriend 9.839 831 Heidolph Titramax User Manual.pdfDownload
  • LabFriend 9.839 831 Operation-Manual-Shaker-Mixer-Titramax 1000_copy.pdfDownload
