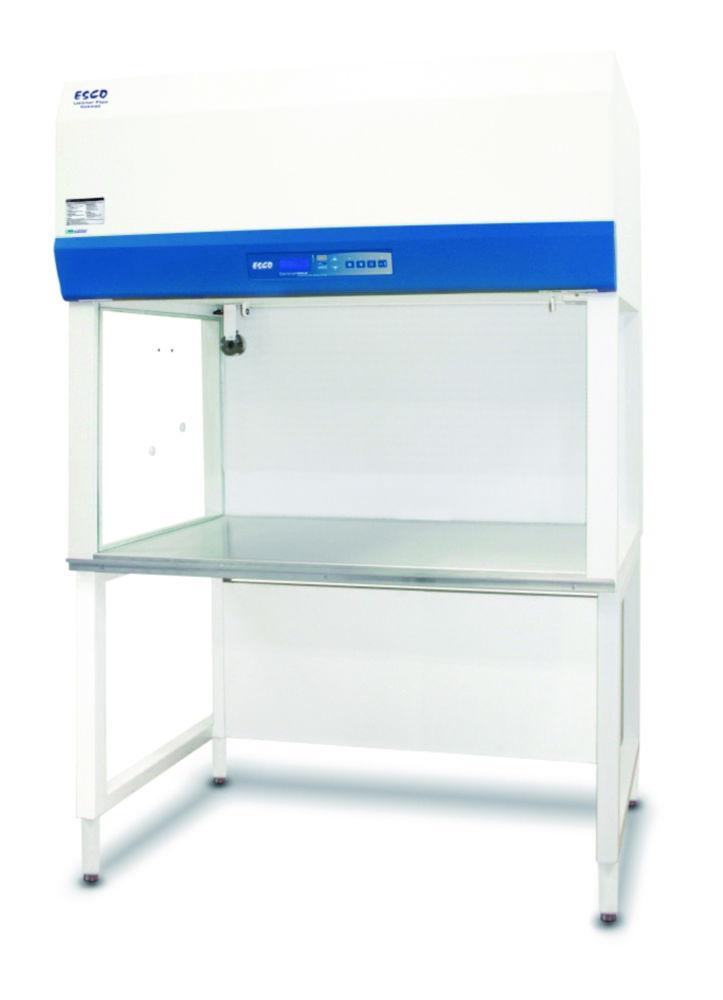

ESCO Bench Airstream LVG-4AG-F8, Vertical, 1.2m, Gen 3 Glass Sides (4ft/1.2m W, 2.25 ft/0.7m H)

Brand:Esco

Amperage

Ext. dim. (WxDxH)

Ext. width

Illumination

Int. Dim. (WxDxH)

Int. width

Max. air volume flow

Noise level

Power supply

Rated capacity

Type

Weight

Specifications

Compare models
Amperage
7.5 A
Depth int.
688 mm
Ext. dim. (WxDxH)
1,340 x 784 x 1,270 mm
Ext. depth
784 mm
Ext. height
1270 mm
Ext. width
1340 mm
Power supply frequency
50/60 Hz
Height int.
689 mm
Illumination
904 Lux
Int. Dim. (WxDxH)
1,222 x 688 x 689 mm

NZ $20884.27

Inc. GST

Available soon

Product description

The ESCO Bench Airstream LVG-4AG-F8 Vertical, 1.2m, Gen 3 Glass Sides is a high-performance laminar flow cabinet designed for use in controlled laboratory environments. Featuring a vertical airflow system, it ensures ISO Class 3 air cleanliness within the work zone as per ISO 14644.1 standards. The cabinet comes with glass side walls for enhanced visibility, making it ideal for applications such as microbiological research, pharmaceutical compounding, and more.

Key Features:

  • Brand: ESCO
  • Model: LVG-4AG-F8
  • Type: Vertical Laminar Flow Cabinet
  • Dimensions: External: 1340 x 784 x 1270 mm; Internal: 1270 x 739 x 689 mm
  • Airflow: Vertical laminar flow with average velocity of 0.45 m/s (90 fpm) at initial set point
  • Filtration: ULPA filter with >99.999% efficiency at 0.1 to 0.3 microns
  • Sound Emission: 52.4 dBA per IEST-RP-CC002.2*
  • Lighting: Fluorescent lamp intensity of 1000 Lux at zero ambient
  • Power Supply: 220-240 VAC, 50/60 Hz, 1 phase
  • Power Consumption: 151W
  • Weight: 158 kg (cabinet only, excludes optional stand)

This laminar flow cabinet is the ideal solution for laboratories requiring a reliable, high-performance environment to protect samples from contamination.

Compare similar models

Bench Airstream LVG-4AG-F8 vertical, 1.2m, Gen 3 Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H)

Manufacturer P/N

2120369

Part Number

6.286 357

Manufacturer

Esco

Amperage

7.5 A

Bench Airstream® LVG-3AG-F8 vertical, 0,9m, Gen 3 Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H)

Manufacturer P/N

2120374

Part Number

6.285 841

Manufacturer

Esco

Amperage

7.3 A

Bench Airstream® LVG-6AG-F8 horizontal, 1.8m/6ft, Gen 2 glass sides (6ft/1.8m W, 2ft / 0.6 m H)

Manufacturer P/N

2120380

Part Number

4.659 003

Manufacturer

Esco

Amperage

8.5 A

Bench Airstream® LVG A vertical, 1.5m/5ft, Gen 3 glass sides

Manufacturer P/N

2120375

Part Number

4.659 002

Manufacturer

Esco

Amperage

7.8 A

More items to explore

Laminar Flow Clean Benches, Type Airstream®, horizontal

ProductTypeType of auxiliary energyMfr#Part#AvailabilityPrice
LHG-3AG-F8Mains connection21203876.285 840NZ $20826.08
LHG-4AG-F8Mains connection21203684.658 999NZ $20826.08
LHG-5AG-F8Mains connection21203724.659 000NZ $29103.11
LHG-6AG-F8Mains connection21203734.659 001NZ $29103.11

Frequently asked questions

It is a high-performance laminar flow cabinet designed for use in controlled laboratory environments. Featuring a vertical airflow system, it ensures ISO Class 3 air cleanliness within the work zone as per ISO 14644.1 standards. The cabinet comes with glass side walls for enhanced visibility, making it ideal for applications such as microbiological research, pharmaceutical compounding, and more.
