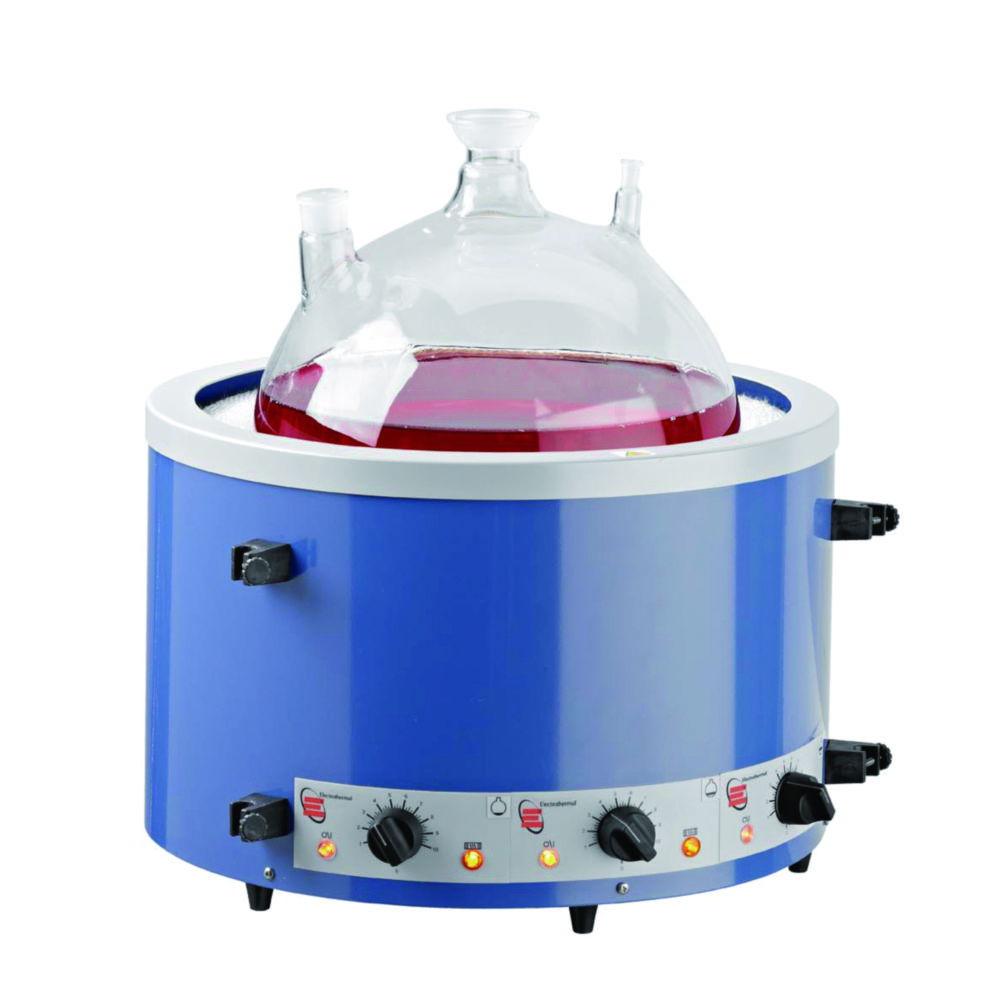

Cole-Parmer Large Volume Heating Mantle 12 L, 230 VAC

Rated capacity

Type

Volume vessel

Specifications

Compare models
HS Code #
84198998
Depth
485 mm
Dimensions (WxDxH)
485 x 485 x 300 mm
Power supply frequency
50/60 Hz
Height
300 mm
Max. temperature
450 °C
Max. voltage
230 V
No. of heating points
1
No. of heating zones
3
Plug type
EU/UK
Power supply
230 V, 50/60 Hz

NZ $11623.15

Inc. GST

Available soon

Product description

The Cole-Parmer Large Volume Heating Mantle 12 L, 230 VAC is designed for efficient heating of large-volume flasks and vessels in laboratory settings. Featuring a "V"-shaped design, it accommodates large pear-shaped and round-bottom flasks with ease, while the bottom opening allows 60° funnels of various diameters to be used. The coiled heating element ensures optimal heat transfer and even heat distribution, controlled via three separate electrical circuits (top, middle, and bottom), each with its own dial switch for precise temperature management. The powder-coated aluminium casing offers a cool-to-the-touch surface for user safety, complemented by indicator lamps that display "power on" and "heat on" status. Operating at 230 VAC, this mantle is ideal for chemical, pharmaceutical, and educational laboratories where controlled, reliable heating is essential.

Key Features:

  • Brand: Cole-Parmer
  • Capacity: 12 liters, ideal for large-volume heating applications
  • Power Supply: 230 VAC for consistent and reliable heating
  • Design: "V"-shaped to fit large pear-shaped and round-bottom flasks
  • Heating Element: Coiled element for optimal heat transfer
  • Control: Three separate electrical circuits with individual dial switches (top, middle, bottom)
  • Safety: Cool-to-the-touch powder-coated aluminium casing
  • Indicators: Lamps for "power on" and "heat on" operation
  • Applications: Suitable for chemical, pharmaceutical, and educational laboratory use

Scope of Supply:

  • Heating mantle
  • Three sets of integrated support rod clamps
  • Power cords with UK and EU plugs

This large-volume heating mantle provides laboratories with precise, safe, and controlled heating for large flasks and vessels, ensuring consistent performance in demanding scientific applications.

Compare similar models

Large Volume Heating Mantle, 12 L 230 VAC
Available soon
Cole-Parmer Large Volume Heating Mantle 12 L, 230 VAC

NZ $11623.15

Inc. GST

Manufacturer P/N

36013-18

Part Number

4.011 142

Manufacturer

Cole Parmer

Rated capacity

2350 W

Large Volume Heating Mantle, 22 L 230 VAC
Available soon
Cole-Parmer Large Volume Heating Mantle 22 L, 230 VAC

NZ $11390.64

Inc. GST

Manufacturer P/N

36013-22

Part Number

4.011 144

Manufacturer

Cole Parmer

Rated capacity

3600 W

Large Volume Heating Mantle, 10 L 230 VAC
Available soon
Cole-Parmer Large Volume Heating Mantle 10 L, 230 VAC

NZ $10932.53

Inc. GST

Manufacturer P/N

36013-16

Part Number

6.282 660

Manufacturer

Cole Parmer

Rated capacity

2350 W

Large Volume Heating Mantle, 20 L 230 VAC
Available soon
Cole-Parmer Large Volume Heating Mantle 20 L, 230 VAC

NZ $13317.47

Inc. GST

Manufacturer P/N

36013-20

Part Number

4.672 211

Manufacturer

Cole Parmer

Rated capacity

3600 W

Frequently asked questions

It is designed for efficient heating of large-volume flasks and vessels in laboratory settings. Featuring a "V"-shaped design, it accommodates large pear-shaped and round-bottom flasks with ease, while the bottom opening allows 60° funnels of various diameters to be used. The coiled heating element ensures optimal heat transfer and even heat distribution, controlled via three separate electrical circuits (top, middle, and bottom), each with its own dial switch for precise temperature management. The powder-coated aluminium casing offers a cool-to-the-touch surface for user safety, complemented by indicator lamps that display "power on" and "heat on" status. Operating at 230 VAC, this mantle is ideal for chemical, pharmaceutical, and educational laboratories where controlled, reliable heating is essential.
