For ext. tubing Ø
Specifications
Compare modelsNZ $73.03
Inc. GST
The Bohlender HT Laboratory Screw Joint GL 18 Ø 6.0 mm, SW 22, PPS is engineered for secure and reliable connections in laboratory applications. Designed to fit GL 18 threaded equipment, this high-temperature screw joint accommodates external tubing with an outer diameter of 6.0 mm. Constructed from PPS (Polyphenylene Sulfide), it ensures excellent chemical resistance, with the medium only coming into contact with PTFE components.
This screw joint is ideal for connecting hard-walled tubing or tubes made of glass, plastic, or metal, and is commonly used for fixing probes, thermometers, dip tubes, or cables in reaction vessels.
It is engineered for secure and reliable connections in laboratory applications. Designed to fit GL 18 threaded equipment, this high-temperature screw joint accommodates external tubing with an outer diameter of 6.0 mm. Constructed from PPS (Polyphenylene Sulfide), it ensures excellent chemical resistance, with the medium only coming into contact with PTFE components.

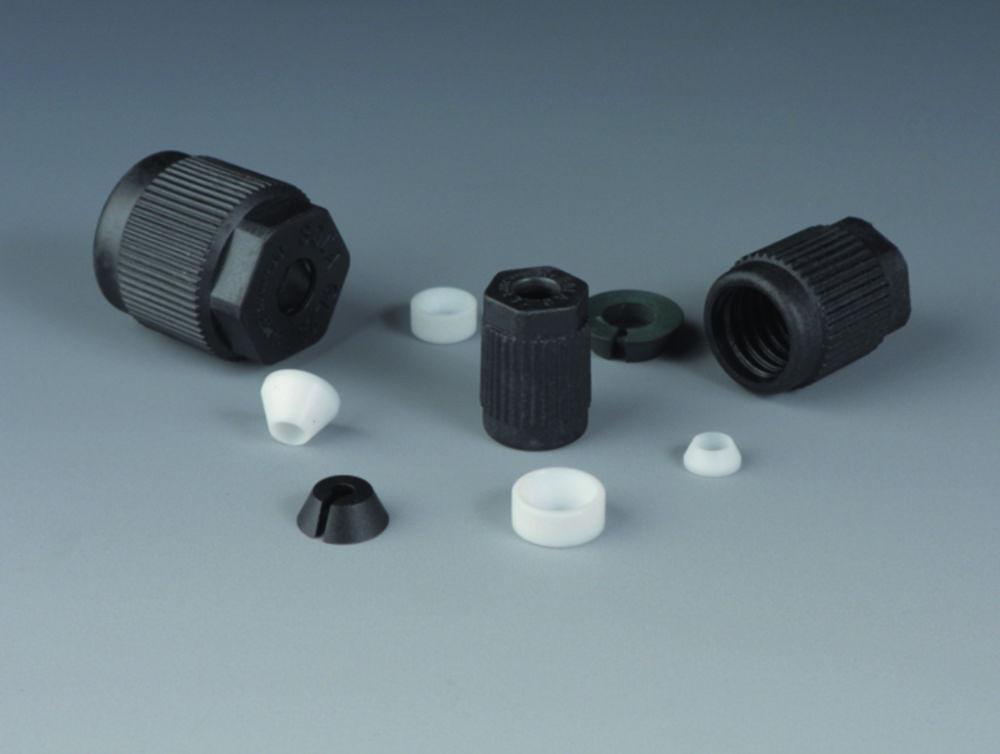

Yes. It is designed for vacuum applications Included Components: Screw cap, clamping ring, sealing wedge, sealing plate, and O-ring This screw joint is ideal for connecting h, and offers an external tubing diameter of 6.0 mm and a pressure stability of up to 10 bar to support this kind of work.
It has an external tubing diameter of 6.0 mm and a pressure stability of up to 10 bar.
It is made from PPS (Polyphenylene Sulfide) for durability and chemical resistance. It also offers GL 18, -50°C to +250°C and suitable for vacuum applications.
Manufacturer P/N
D 629-54
Part Number
6.900 008
Manufacturer
Bohlender
For ext. tubing Ø
6.00 mm
Manufacturer P/N
D 629-22
Part Number
6.800 818
Manufacturer
Bohlender
For ext. tubing Ø
2.00 mm
Manufacturer P/N
D 629-18
Part Number
6.401 350
Manufacturer
Bohlender
For ext. tubing Ø
1.60 mm
Manufacturer P/N
D 629-68
Part Number
6.203 275
Manufacturer
Bohlender
For ext. tubing Ø
9.52 mm
Manufacturer P/N
D 629-34
Part Number
6.088 255
Manufacturer
Bohlender
For ext. tubing Ø
3.00 mm
Manufacturer P/N
D 629-42
Part Number
7.603 086
Manufacturer
Bohlender
For ext. tubing Ø
3.20 mm
Manufacturer P/N
D 629-62
Part Number
6.800 813
Manufacturer
Bohlender
For ext. tubing Ø
8.00 mm
Manufacturer P/N
D 629-46
Part Number
6.800 812
Manufacturer
Bohlender
For ext. tubing Ø
4.00 mm
Manufacturer P/N
D 629-74
Part Number
6.900 009
Manufacturer
Bohlender
For ext. tubing Ø
10.00 mm
Manufacturer P/N
D 629-56
Part Number
7.603 090
Manufacturer
Bohlender
For ext. tubing Ø
6.35 mm
It is engineered for secure and reliable connections in laboratory applications. Designed to fit GL 18 threaded equipment, this high-temperature screw joint accommodates external tubing with an outer diameter of 6.0 mm. Constructed from PPS (Polyphenylene Sulfide), it ensures excellent chemical resistance, with the medium only coming into contact with PTFE components.
