Representative Image

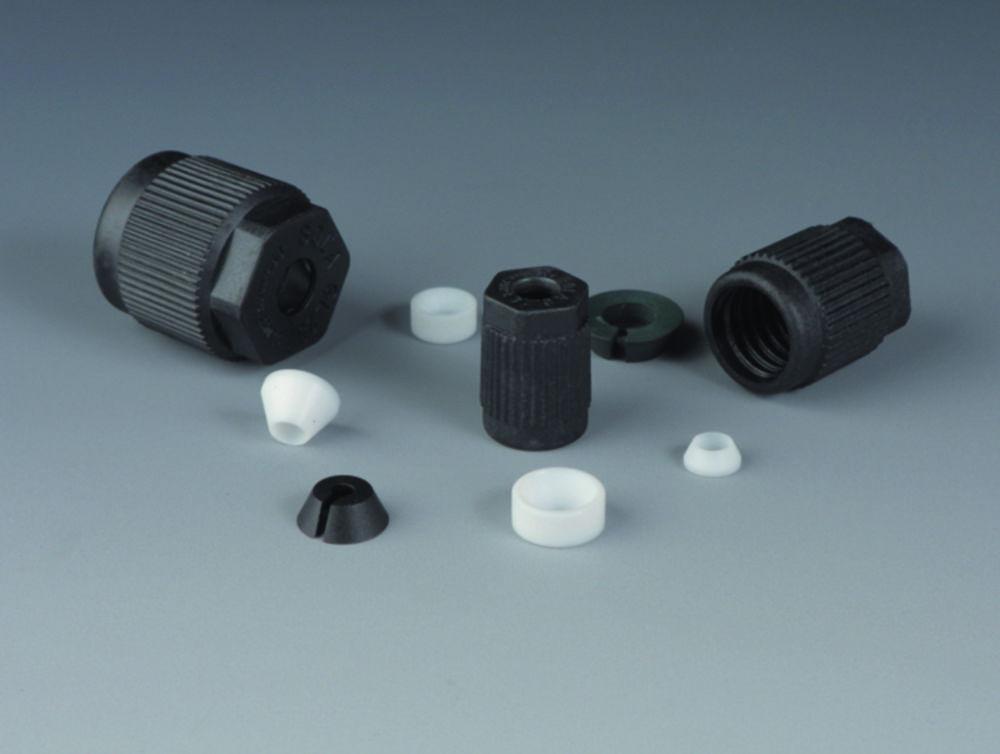

Bohlender HT Laboratory Screw Joint GL 14 Ø 4.0 mm, SW 17, PPS

Brand:Bohlender

For ext. tubing Ø

Specifications

Compare models
HS Code #
39269097
Colour
Black
For ext. tubing Ø
4.00 mm
Material
PPS
Thread
GL 14
UNSPSC
41121815

Alternative in-stock items

NZ $84.44

Inc. GST

Available soon

Product description

The Bohlender HT Laboratory Screw Joint GL 14 Ø 4.0 mm, SW 17, PPS is designed for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. It is also suitable for fixing probes, thermometers, dip tubes, or cables in reaction vessels. The black screw cap is made of PPS, with inner components consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE), and an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). This design ensures excellent chemical resistance, as the medium only contacts PTFE. The joint is temperature resistant from -50 to 250 °C, pressure stable up to 10 bar, and suitable for vacuum applications.

Key Features:

  • Brand: Bohlender
  • Thread Size: GL 14
  • For External Tubing Ø: 4.0 mm
  • Spanner Width (SW): 17 mm
  • Material: PPS (cap), PTFE (sealing components), FKM (o-ring)
  • Temperature Resistance: -50 to 250 °C
  • Pressure Stability: Up to 10 bar
  • Vacuum Suitability: Yes

This high-quality screw joint is essential for laboratories requiring reliable and chemically resistant connections in various research and analytical settings.

Downloads

Compare similar models

HT Laboratory Screw Joint GL 14 Ø 4,0 mm, SW 17, PPS

Manufacturer P/N

D 628-66

Part Number

7.601 156

Manufacturer

Bohlender

For ext. tubing Ø

4.00 mm

HT Laboratory Screw Joint GL 14 Ø 6,0 mm, SW 17, PPS

Manufacturer P/N

D 628-74

Part Number

6.900 068

Manufacturer

Bohlender

For ext. tubing Ø

6.00 mm

HT Laboratory Screw Joint GL 14 Ø 1,0 mm, SW 17, PPS

Manufacturer P/N

D 628-18

Part Number

6.901 758

Manufacturer

Bohlender

For ext. tubing Ø

1.00 mm

HT Laboratory Screw Joint GL 14 Ø 3,0 mm, SW 17, PPS

Manufacturer P/N

D 628-50

Part Number

6.304 933

Manufacturer

Bohlender

For ext. tubing Ø

3.00 mm

HT Laboratory Screw Joint GL 14 Ø 2,0 mm, SW 17, PPS

Manufacturer P/N

D 628-34

Part Number

6.307 187

Manufacturer

Bohlender

For ext. tubing Ø

2.00 mm

HT Laboratory Screw Joint GL 14 Ø 1,6 mm, SW 17, PPS

Manufacturer P/N

D 628-26

Part Number

6.307 933

Manufacturer

Bohlender

For ext. tubing Ø

1.60 mm

HT Laboratory Screw Joint GL 14 Ø 3,2 mm, SW 17, PPS

Manufacturer P/N

D 628-58

Part Number

6.303 128

Manufacturer

Bohlender

For ext. tubing Ø

3.20 mm

HT Laboratory Screw Joint GL 14 Ø 6,35 mm, SW 17, PPS

Manufacturer P/N

D 628-78

Part Number

7.603 089

Manufacturer

Bohlender

For ext. tubing Ø

6.35 mm

HT Laboratory Screw Joint GL 14 Ø 8,0 mm, SW 17, PPS

Manufacturer P/N

D 628-82

Part Number

6.084 147

Manufacturer

Bohlender

For ext. tubing Ø

8.00 mm

Laboratory screw joints GL 14 Ø 5,0 mm, SW 17, PPS

Manufacturer P/N

D 628-70

Part Number

6.237 145

Manufacturer

Bohlender

For ext. tubing Ø

5.00 mm

Frequently asked questions

It is designed for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. It is also suitable for fixing probes, thermometers, dip tubes, or cables in reaction vessels. The black screw cap is made of PPS, with inner components consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE), and an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). This design ensures excellent chemical resistance, as the medium only contacts PTFE. The joint is temperature resistant from -50 to 250 °C, pressure stable up to 10 bar, and suitable for vacuum applications.
