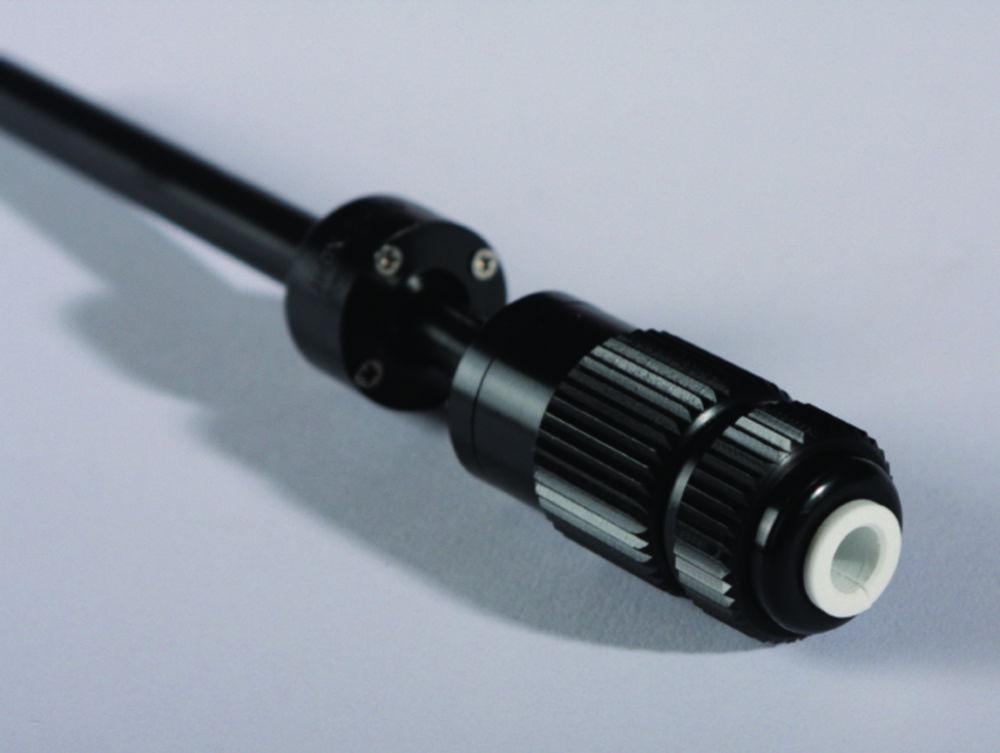

Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm

Brand:Bohlender

Chuck adapter

Length

Opening for stirrer shaft

Specifications

Compare models
HS Code #
39269097
Axis/ angle offset
+10 mm
Chuck adapter
10 mm
Length
190 mm
Material
POM
Max. temperature
110 °C
Min. temperature
-20 °C
Opening for stirrer shaft
Ø 8 mm
Temperature
-20 ... 110 °C
UNSPSC
41103816

NZ $360.57

Inc. GST

Available soon

Product description

The Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm are precision-engineered connectors designed to compensate for misalignments between stirrer shafts and drives. Manufactured from high-strength POM plastic, these couplings offer excellent mechanical properties, ensuring reliable and efficient power transmission in laboratory stirring applications.

Key Features:

  • Brand: Bohlender
  • Material: High-strength POM plastic for durability and chemical resistance
  • Opening for Stirrer Shaft: Ø 8 and 10 mm
  • Chuck Adapter Diameter: Ø 10 mm
  • Overall Length: 190 mm
  • Power Transmission: Up to 300 Ncm
  • Maximum Speed: Up to 1,200 rpm
  • Maximum Axial Misalignment: 10 mm
  • Temperature Range: -20°C to +110°C
  • Rotation: Suitable for both left and right-handed rotation
  • Assembly: Simple screw joint with clamp rings
  • Pivot Length: 90 mm (can be shortened by the user)
  • Applications: Ideal for balancing misalignment of axes between agitator and stirrer shaft; suitable for glass, metal, or PTFE stirrer shafts
  • Packaging: Sold individually

These couplings are essential for laboratories requiring precise and reliable connections in various research and analytical settings.

Compare similar models

Globe stirring couplings, POM wave adapter Ø 8 and 10 mm

Manufacturer P/N

C 398-12

Part Number

7.632 676

Manufacturer

Bohlender

Axis/ angle offset

+10 mm

Globe Stirrer Coupling, POM wave absorption Ø 6,5 and 10 mm

Manufacturer P/N

C 398-08

Part Number

6.240 637

Manufacturer

Bohlender

Axis/ angle offset

+10 mm

Globe stirrer coupling, POM wave adapter GL10 and 10 mm

Manufacturer P/N

C 393-12

Part Number

9.197 202

Manufacturer

Bohlender

Axis/ angle offset

-

Globus stirring coupler, POM for 6 mm internal square

Manufacturer P/N

C 399-12

Part Number

6.231 539

Manufacturer

Bohlender

Axis/ angle offset

-

Globus agitator couplings L 190 mm; Ø 8 + 10 mm Top mounting Ø 8 mm

Manufacturer P/N

C 394-03

Part Number

6.275 615

Manufacturer

Bohlender

Axis/ angle offset

+10 mm

Globe Stirrer Coupling, POM wave absorption Ø 4 mm

Manufacturer P/N

C 398-04

Part Number

6.272 999

Manufacturer

Bohlender

Axis/ angle offset

-

Globus agitator couplings L 190 mm; Ø 4 mm Top mounting Ø 8 mm

Manufacturer P/N

C 394-01

Part Number

4.670 726

Manufacturer

Bohlender

Axis/ angle offset

-

Globus agitator couplings L 190 mm; Ø 6,5 + 10 mm Top mounting Ø 8 mm

Manufacturer P/N

C 394-02

Part Number

4.667 597

Manufacturer

Bohlender

Axis/ angle offset

+10 mm
