Representative Image

Thermo Kendro Savant SpeedVac Vacuum Concentrator SPD140DDA-P1

Specifications

Depth
460 mm
Dimensions (WxDxH)
330 x 460 x 360 mm
Power supply frequency
50 Hz
Height
360 mm
Max. temperature
80 °C
Max. voltage
230 V
Min. temperature
35 °C
Plug type
EU/UK
Power supply
230 V, 50 Hz
Temperature
35 ... 80 °C

NZ $107101.64

Inc. GST

Available soon

Product description

The Thermo Kendro Savant SpeedVac Vacuum Concentrator SPD140DDA-P1 is a high-performance, medium-capacity solution engineered for rapid and uniform evaporation of liquid samples. Built to handle strong acids, bases, and aggressive organic solvents, this vacuum concentrator is ideal for critical laboratory applications in biological, chemical, and pharmaceutical fields.

Key Features:

  • Brand: Thermo Kendro
  • Model: Savant SpeedVac SPD140DDA-P1
  • Function: Rapid and efficient vacuum-based sample concentration
  • Application: Suitable for biological, chemical, and pharmaceutical sample processing; compatible with aggressive solvents
  • Technology: Advanced vacuum concentration system for fast, even evaporation without sample degradation
  • Radiant Heating: Radiant lamps inside the chamber enable efficient solvent evaporation
  • Heated Lid: Designed to support evaporation of high boiling point solvents such as DMSO and DMF
  • Cold Trap: Integrated -5 °C cold trap enhances solvent capture and protects the vacuum pump
  • Vapor Management: Wider vapor port and tubing allow improved vapor throughput, reducing drying time
  • Control Features: Independent timers for heat and run cycles
  • Vacuum Display: Built-in vacuum gauge and digital display for real-time monitoring
  • Vacuum Control: Adjustable vacuum level for optimized evaporation
  • Safety: Audible alarm ensures safe operation
  • User Interface: Intuitive and user-friendly design with customizable settings
  • Capacity: Medium sample capacity for increased throughput

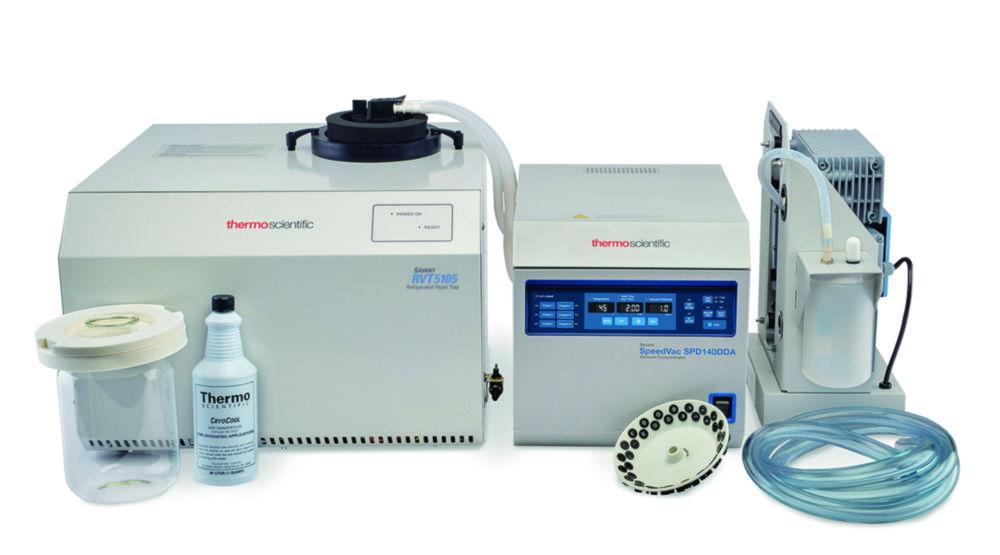

Scope of Supply:

  • SPD140 P1 Package: Includes concentrator, ultra-low temperature refrigerated vapor trap (-104 °C), oil-free ETFE/PFA 4-headed pump, rotor (40 × 1.5–2.0 ml), tubing and fitting kit, glass condensation flask, and 1 L CryoCool™ heat transfer fluid
  • SPD140 P2 Package: Includes concentrator, universal vacuum source (-50 °C), 24 × 1 dram vials (15 × 45 mm), 4 ml dram vial rotor, chemical trap, tubing and fitting kit, disposable cartridge, glass condensation flask, vacuum pump lubricating oil, and 1 L CryoCool™ heat transfer fluid

Optimize your lab’s sample concentration process with the Thermo Kendro Savant SpeedVac SPD140DDA-P1—designed for durability, safety, and outstanding performance in challenging analytical workflows.



Frequently Asked Questions

1. What is the Thermo Kendro Savant SpeedVac Vacuum Concentrator SPD140DDA-P1 used for?

It is a high-performance, medium-capacity solution engineered for rapid and uniform evaporation of liquid samples. Built to handle strong acids, bases, and aggressive organic solvents, this vacuum concentrator is ideal for critical laboratory applications in biological, chemical, and pharmaceutical fields.

2. Is this product suitable for biological, chemical, and pharmaceutical sample processing; compatible with aggressive solvents?

Yes. It is designed for biological, chemical, and pharmaceutical sample processing; compatible with aggressive solvents, and offers rapid and efficient vacuum-based sample concentration and advanced vacuum concentration system for fast, even evaporation without sample degradation to support this kind of work.

3. What function and technology does this product have?

It has rapid and efficient vacuum-based sample concentration, advanced vacuum concentration system for fast, even evaporation without sample degradation and radiant lamps inside the chamber enable efficient solvent evaporation.

4. What heated lid and cold trap does this product offer?

It offers the following key features: designed to support evaporation of high boiling point solvents such as DMSO and DMF, integrated -5 °C cold trap enhances solvent capture and protects the vacuum pump, wider vapor port and tubing allow improved vapor throughput, reducing drying time and independent timers for heat and run cycles.
