Representative Image

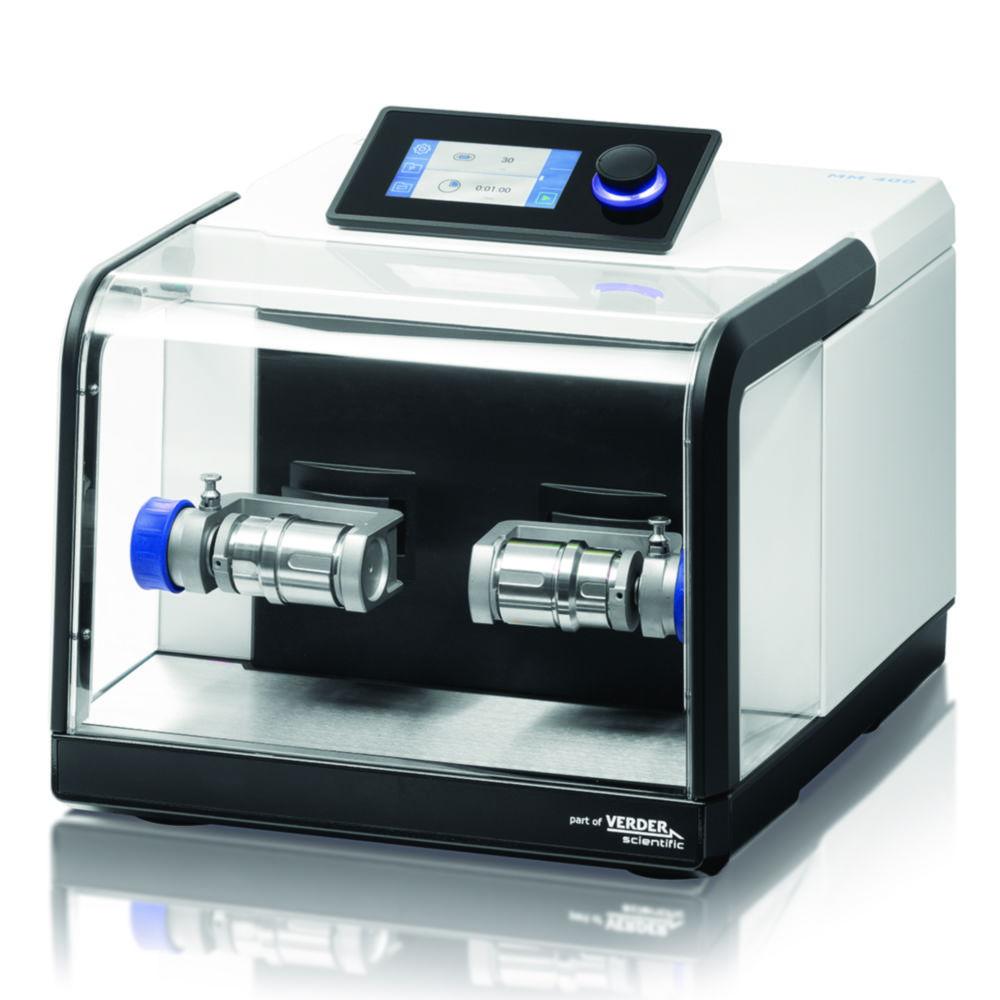

Retsch Swing Mill MM 400 100-240 V, 50/60 Hz

Brand:Retsch

Specifications

Depth
470 mm
Dimensions (WxDxH)
385 x 470 x 350 mm
Feed particle size
8 mm
Feed quantity
40 ml
Power supply frequency
50/60 Hz
Height
350 mm
IP code
IP 30
Max. feed particle size
8 mm
Max. feed quantity
40 ml
Max. final fineness
5 µm

NZ $29728.85

Inc. GST

Available soon

Product description

The Retsch Swing Mill MM 400 is a high-performance mixer mill designed for dry, wet, and cryogenic grinding of a wide variety of sample types, including tablets, minerals, bones, tissues, soils, and plastics. Capable of achieving grind sizes down to 5 microns, the MM 400 features two grinding stations for high sample throughput and short processing times. For cryogenic applications, external cooling of the grinding jar makes the sample material brittle for effective grinding.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 100–240 V, 50/60 Hz
  • Interface: Touch display for intuitive control
  • Grinding Capacity: Two grinding stations enable high-throughput sample preparation
  • Grinding Modes: Suitable for dry, wet, and cryogenic grinding
  • Design: Screwable grinding bowls for secure, loss-free grinding
  • Applications: Cell disruption for DNA/RNA and protein extraction; mechanochemistry with grinding time up to 99 hours
  • Reproducibility: Calibrated system with memory for storing up to 9 parameter combinations

Note: Please order grinding jars and grinding balls separately.

Scope of Supply:
Swing Mill MM 400 unit only.

The MM 400 is an essential solution for laboratories requiring fast, reliable, and reproducible sample homogenization across a wide range of scientific disciplines.

Accessories

Grinding Jars for Mixer Mill MM 400

ProductNominal capacityMaterialMfr#Part#AvailabilityPrice
1.5 mlSteel, stainless0146202309.738 848NZ $2608.62
5.0 mlSteel, stainless0146202319.738 849NZ $2634.87
35.0 mlSteel, stainless0146202149.738 875NZ $3151.87
50.0 mlSteel, stainless0146202169.738 885NZ $3779.09
10.0 mlSteel, stainless0146202369.738 960NZ $2687.35
10.0 mlZirconia0146202349.738 962NZ $5970.44
10.0 mlTungsten carbide0146202359.738 963NZ $8537.07
25.0 mlSteel, stainless0146202134.660 976NZ $2831.69
25.0 mlPTFE0146202389.738 874NZ $2036.51
25.0 mlZirconia0146202019.738 965NZ $6232.88
35.0 mlPTFE0146202449.738 966NZ $2285.83
25.0 mlSteel, hardened0146202379.738 869NZ $2776.58
35.0 mlZirconia0146202159.738 880NZ $8802.13
5.0 mlAgate0146202329.738 852NZ $8500.33
10.0 mlPMMA0246205394.688 241NZ $2144.11

Frequently asked questions

It is a high-performance mixer mill designed for dry, wet, and cryogenic grinding of a wide variety of sample types, including tablets, minerals, bones, tissues, soils, and plastics. Capable of achieving grind sizes down to 5 microns, the MM 400 features two grinding stations for high sample throughput and short processing times. For cryogenic applications, external cooling of the grinding jar makes the sample material brittle for effective grinding.
