Representative Image

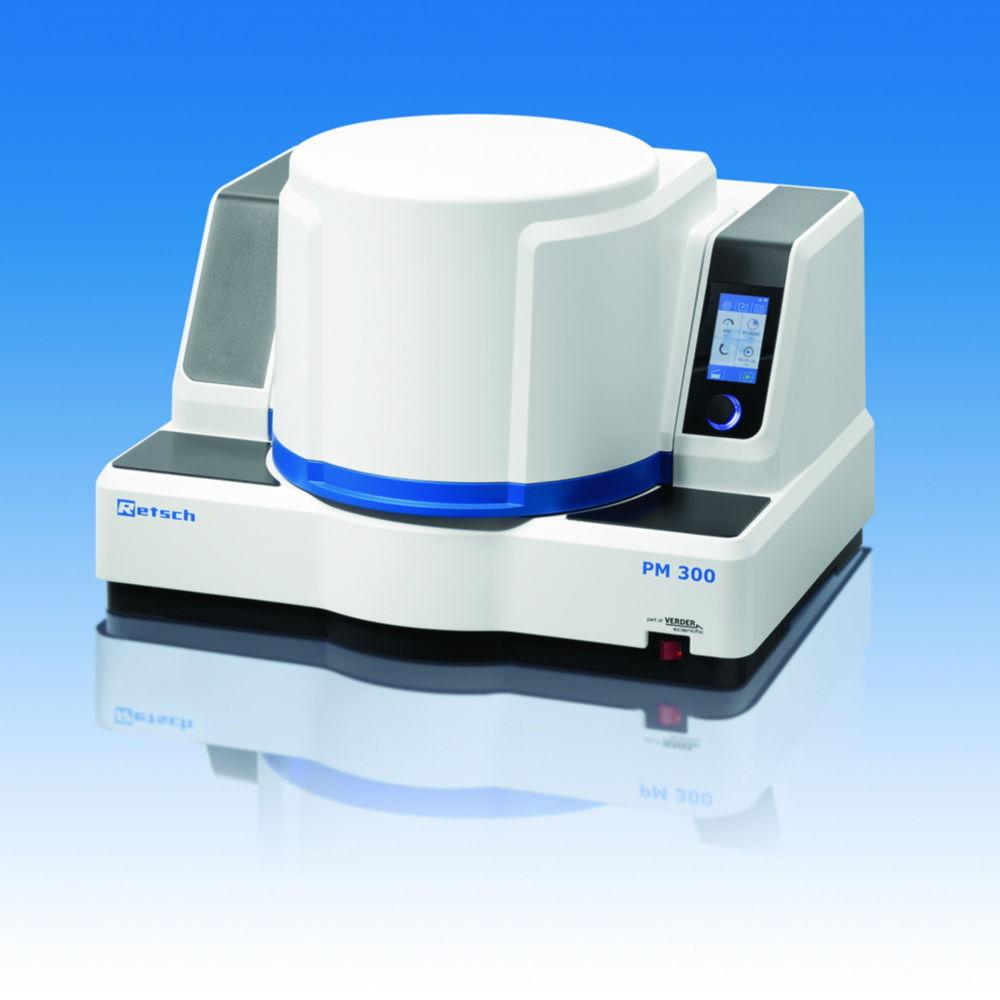

Retsch Planetary Ball Mill PM 300 220-230 V, 50/60 Hz

Brand:Retsch

Specifications

Depth
580 mm
Dimensions (WxDxH)
745 x 580 x 525 mm
Feed particle size
10 mm
Feed quantity
440 ml
Power supply frequency
50/60 Hz
Height
525 mm
IP code
IP 20
Max. feed particle size
10 mm
Max. feed quantity
440 ml
Max. speed
800 1/min

NZ $73091.30

Inc. GST

Available soon

Product description

The Retsch Planetary Ball Mill PM 300 is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 220–230 V, 50/60 Hz
  • Interface: Touch display with USB and RASPI connectivity
  • Grinding Range: Loss-free size reduction down to the submicron range
  • Grinding Modes: Suitable for dry, wet, and ultrafine grinding as well as mechanochemistry
  • Sample Capacity: Two grinding stations, stackable jars allow processing of up to 4 samples simultaneously
  • Clamping System: Lockable sun wheel for safe and easy clamping of jars
  • Safety: Safety Slider prevents operation without securely clamped jars
  • Stability: Excellent stability with FFCS (Free-Floating Compensation System) technology
  • Programmability: Programmable start time and adjustable timer from 1 s to 99 h 59 min 59 s

Note: Please order grinding jars and grinding balls separately.

Scope of Supply:
Planetary Ball Mill PM 300 unit only.

The PM 300 is the ideal choice for laboratories requiring high-performance, high-precision sample preparation with advanced safety and automation features.

Accessories

Grinding jars EasyFit PM 300

ProductNominal capacityMaterialMfr#Part#AvailabilityPrice
250 mlZirconia0146205004.691 612NZ $16924.56
500 mlSintered corundum0146205034.691 608NZ $11484.24
50 mlSintered corundum0146205074.691 605NZ $5175.26
500 mlAgate0146205064.691 604NZ $21758.64
500 mlZirconia0146205044.691 613NZ $19341.60
80 mlZirconia0146205104.691 610NZ $12843.66
250 mlAgate0146205024.691 603NZ $9332.26
125 mlAgate0146205154.691 602NZ $7217.01
80 mlAgate0146205114.691 601NZ $6348.35
250 mlTungsten carbide0146204974.691 598NZ $22060.45
125 mlTungsten carbide0146205274.691 597NZ $15940.42
50 mlAgate0146205094.691 600NZ $5931.07
80 mlTungsten carbide0146204954.691 596NZ $15562.51
50 mlTungsten carbide0146204944.691 595NZ $12389.65
125 mlZirconia0146205134.691 611NZ $14203.09
250 mlSteel, stainless, hardened0146205194.691 593NZ $6120.03
125 mlSteel, stainless, hardened0146205184.691 592NZ $5781.48
250 mlSintered corundum0146204994.691 607NZ $7970.21
500 mlSteel, stainless, hardened0146205204.691 594NZ $9216.78
80 mlSteel, stainless, hardened0146205174.691 591NZ $5403.58
125 mlSintered corundum0146205124.691 606NZ $6912.59
500 mlTungsten carbide0146204984.691 599NZ $41286.57
50 mlSteel, stainless, hardened0146205164.691 590NZ $4080.89
50 mlZirconia0146205084.691 609NZ $10765.16
12 mlSteel, stainless, hardened0146202396.238 959NZ $2183.48
25 mlSteel, stainless, hardened0146202406.238 960NZ $2411.80

Accessories for planetary ball mill PM 300

ProductDescriptionForMfr#Part#AvailabilityPrice
Spare valve set for aeration lids M8x1PM 3002286400014.691 638NZ $496.01
Opening aid for planetary ball millPM 3000348600624.691 640NZ $501.25
Opening aid for safety closure devicePM 3000248600554.691 639NZ $241.44
IQ/OQ Documentation for PM 300PM 3009920000414.691 641NZ $1511.64
Adapter for the use of grinding jars 12 ml and 25 mlPM 3000302501824.691 637NZ $2060.13
Adapter for stacking grinding jars 50 ... 80 mlPM 3000302501784.691 636NZ $1233.45
Clamping unit for grinding jarsPM 3002266100054.691 635NZ $2162.48

Frequently asked questions

It is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.
