Representative Image

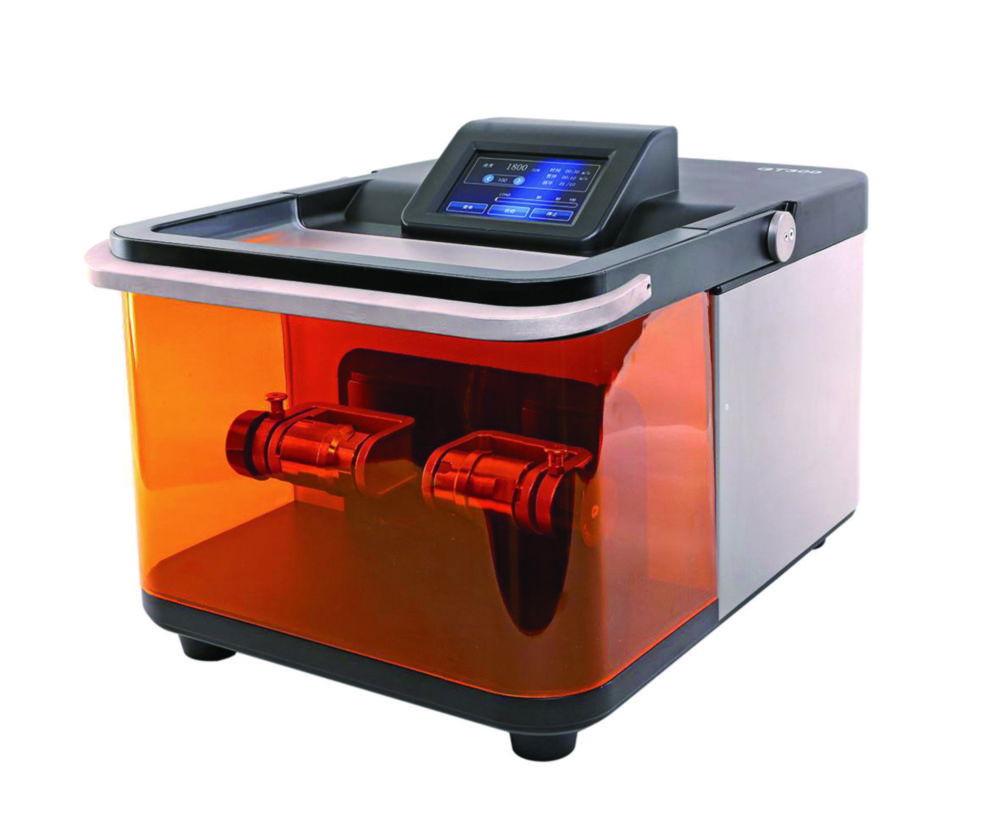

Powteq Micro Ball Mill GT300 220V, 50Hz

Brand:Powteq

Specifications

HS Code #
84798200
Depth
480 mm
Dimensions (WxDxH)
380 x 480 x 281 mm
Feed particle size
10 mm
Power supply frequency
50 Hz
Height
281 mm
Material grinding chamber
Stainless steel
Max. feed particle size
10 mm
Max. final fineness
5 µm
Max. vibration frequency
30 Hz
Max. voltage
220 V

NZ $17226.39

Inc. GST

Available soon

Product description

The Powteq Micro Ball Mill GT300 220V, 50Hz is an advanced milling tool designed for high-precision grinding, homogenizing, and mixing of laboratory samples. It is ideal for a wide range of materials including hard, medium-hard, soft, elastic, and fibrous samples. The GT300 is also suitable for cell disruption and DNA/RNA extraction, offering short processing times and high sample throughput. Its grinding containers perform horizontal, circular-arc oscillations, while grinding balls ensure effective sample processing. The unit features digital control via an LCD display, programmable grinding parameters, and safety interlocks for reliable and safe operation.

Key Features:

  • Brand: Powteq
  • Model: GT300
  • Power Supply: 220V, 50Hz
  • Function: Grinding, homogenizing, and mixing of various sample types
  • Applications: Suitable for material science, chemistry, biology laboratories, including cell disruption and DNA/RNA extraction
  • Processing Time: Average of 30 seconds per sample
  • Grinding Stations: Two stations for bowls of 5 to 50 ml volume
  • Speed Range: Variable speed from 180 to 1800 min-1
  • Control: LCD display with programmable grinding parameters (up to 10 stored programs)
  • Safety: Transparent cover and safety interlock
  • Construction: Grinding chamber, clamping system, and swivel arm made of stainless steel
  • Drive: Maintenance-free direct drive system

Scope of Supply:

  • Micro Ball Mill GT300 unit
  • Note: Grinding bowls and balls are not included and must be ordered separately

The Powteq Micro Ball Mill GT300 delivers precision milling with high performance and versatility, making it a valuable asset for laboratory research and testing.

Accessories

Accessories for Micro Ball Mill GT300

ProductDescriptionForMfr#Part#AvailabilityPrice
Gasket for 25 ml grindig jars made of stainless steelGT30011.863.10404.669 599In stockNZ $20.72
Jar wrenchGT30002.863.00014.669 598NZ $352.22
Cryo kit for cooling the grinding jars with liquid nitrogenGT30002.863.00076.319 530NZ $1210.89
PTFE adapter for 5 plastic reaction vials 1.5/2.0 mlGT30002.863.00086.319 532NZ $1095.79
PTFE adapter for 10 plastic reaction vials 1.5/2.0 mlGT30002.863.00096.319 534NZ $860.97
PTFE adapter for 6 plastic reaction vials 5.0 mlGT30002.863.00106.319 535NZ $1017.51
PTFE adapter for 6 PC reaction vials 5.0 mlGT30002.863.00116.319 536NZ $1017.51

Grinding balls

ProductMaterialØMfr#Part#AvailabilityPrice
Stainless steel15 mm02.863.01084.669 611In stockNZ $372.94
Agate5 mm02.863.01304.669 615In stockNZ $782.70
Zirconia10 mm02.863.01434.669 624NZ $782.70
Agate30 mm02.863.01354.669 620NZ $92.08
Agate10 mm02.863.01314.669 616NZ $782.70
Stainless steel5 mm02.863.01044.669 607NZ $372.94
Agate40 mm02.863.01364.669 621NZ $126.61
Stainless steel30 mm02.863.01114.669 614NZ $184.17
Agate25 mm02.863.01344.669 619NZ $50.65
Zirconia3 mm02.863.01404.669 622NZ $644.58
Stainless steel2 mm02.863.01024.669 605NZ $665.30
Stainless steel3 mm02.863.01034.669 606NZ $665.30
Stainless steel25 mm02.863.01104.669 613NZ $92.08
Stainless steel10 mm02.863.01064.669 609NZ $372.94
Agate20 mm02.863.01334.669 618NZ $50.65
Agate15 mm02.863.01324.669 617NZ $50.65
Stainless steel12 mm02.863.01074.669 610NZ $372.94
Zirconia5 mm02.863.01414.669 623NZ $782.70
Zirconia20 mm02.863.01454.669 626NZ $151.94
Stainless steel1 mm02.863.01014.669 604NZ $722.85
Stainless steel20 mm02.863.01094.669 612NZ $36.83
Zirconia15 mm02.863.01444.669 625NZ $133.52
Stainless steel7 mm02.863.01054.669 608NZ $372.94

Frequently asked questions

It is an advanced milling tool designed for high-precision grinding, homogenizing, and mixing of laboratory samples. It is ideal for a wide range of materials including hard, medium-hard, soft, elastic, and fibrous samples. The GT300 is also suitable for cell disruption and DNA/RNA extraction, offering short processing times and high sample throughput. Its grinding containers perform horizontal, circular-arc oscillations, while grinding balls ensure effective sample processing. The unit features digital control via an LCD display, programmable grinding parameters, and safety interlocks for reliable and safe operation.
