Representative Image

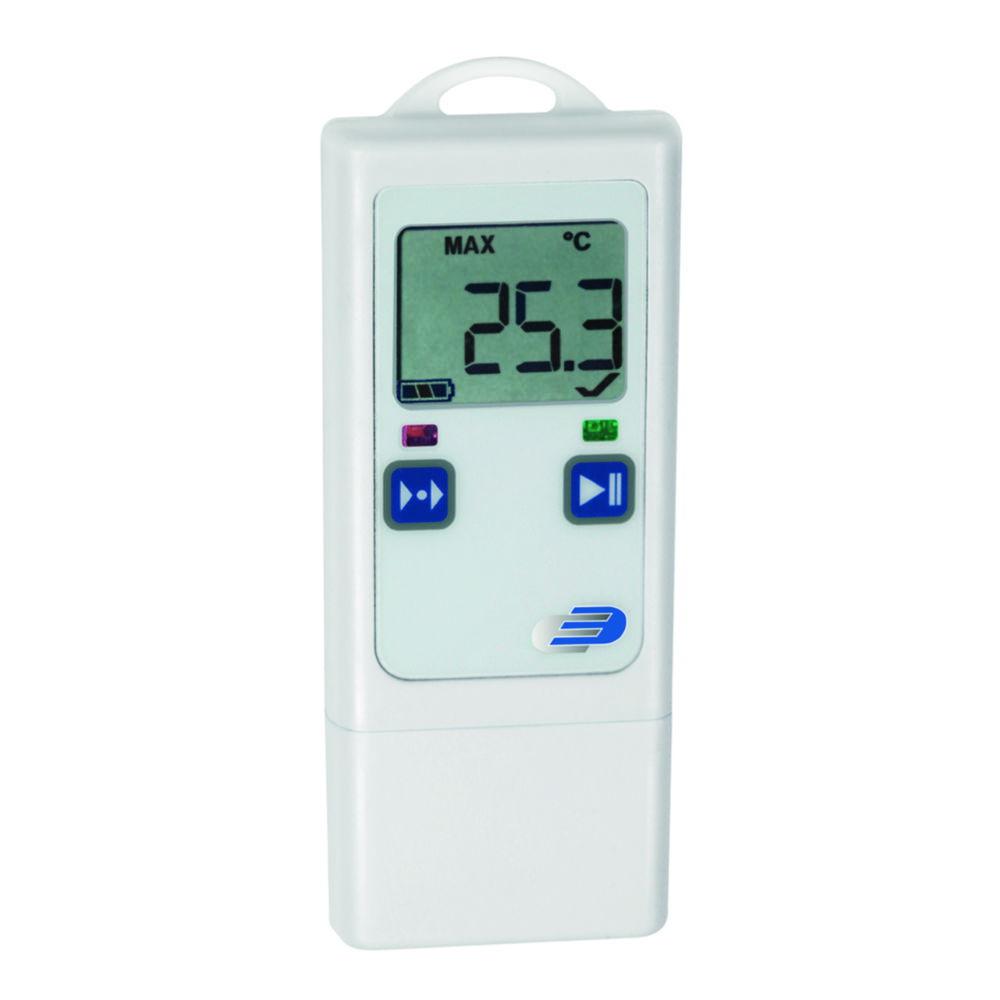

DOSTMANN LOG40 PDF Data Logger, with Display for Temperature and External Sensors

Brand:Dostmann

Specifications

Battery/ rechargeable battery
2 x 1.5 V, AAA
Depth
100 mm
Designation ANSI
AAA
Dimensions (WxDxH)
40 x 100 x 16 mm
Disposable
No
Height
16 mm
IP code
IP 65
Material housing
ABS
Max. temperature
60 °C
Max. voltage battery/ rechargeable battery
1.5 V

NZ $171.15

Inc. GST

Available soon

Product description

Dostmann LOG40 PDF Data Logger with Display is designed for precise monitoring, alarming, and recording of temperature, with the option to connect external sensors for measuring relative humidity and pressure. Ideal for use during transport and storage, this data logger provides reliable, traceable documentation of environmental conditions. It automatically generates PDF and Excel reports without requiring additional software, ensuring fast and convenient data analysis for HACCP-compliant applications.

Key Features:

  • Brand: Dostmann
  • Measurement Parameters: Temperature, optional humidity, and pressure with external sensors
  • Display: LCD showing current values, Max-Min readings, and alarm indicators
  • Accuracy: ±0.5 °C at -10 to 60 °C
  • Recording Interval: Adjustable from 1 second to 24 hours
  • Memory Capacity: Up to 40,000 data records
  • Connectivity: USB interface for direct PC connection
  • Data Output: Automatic generation of PDF and Excel reports
  • Calibration: Supplied with calibration certificate
  • Power Supply: Operates on 2 × AAA batteries (included)
  • Compliance: HACCP-compliant according to DIN EN 12830
  • Software: Free LogConnect software for configuration and analysis
  • Application: Monitoring temperature and environmental conditions during transport, storage, and quality control

Note: External sensors for measuring relative humidity and pressure can be connected via the USB port. Please order separately.

Scope of Supply: PDF data logger, 2 × AAA batteries, USB protection cap, mounting kit, and calibration certificate.

The Dostmann LOG40 PDF Data Logger delivers reliable, easy-to-access environmental monitoring, making it the ideal choice for transport validation, warehouse storage, and industrial quality control applications.

Accessories

Temperature probe for PDF data logger LOG40

ProductMax. temperatureMin. temperatureMfr#Part#AvailabilityPrice
125 °C-40 °C6040-04014.691 798NZ $61.62

Combination probe temperature/humidity for PDF data logger LOG40

ProductMax. temperatureMin. temperatureMfr#Part#AvailabilityPrice
70 °C-40 °C6020-00434.691 799NZ $68.46
