Representative Image

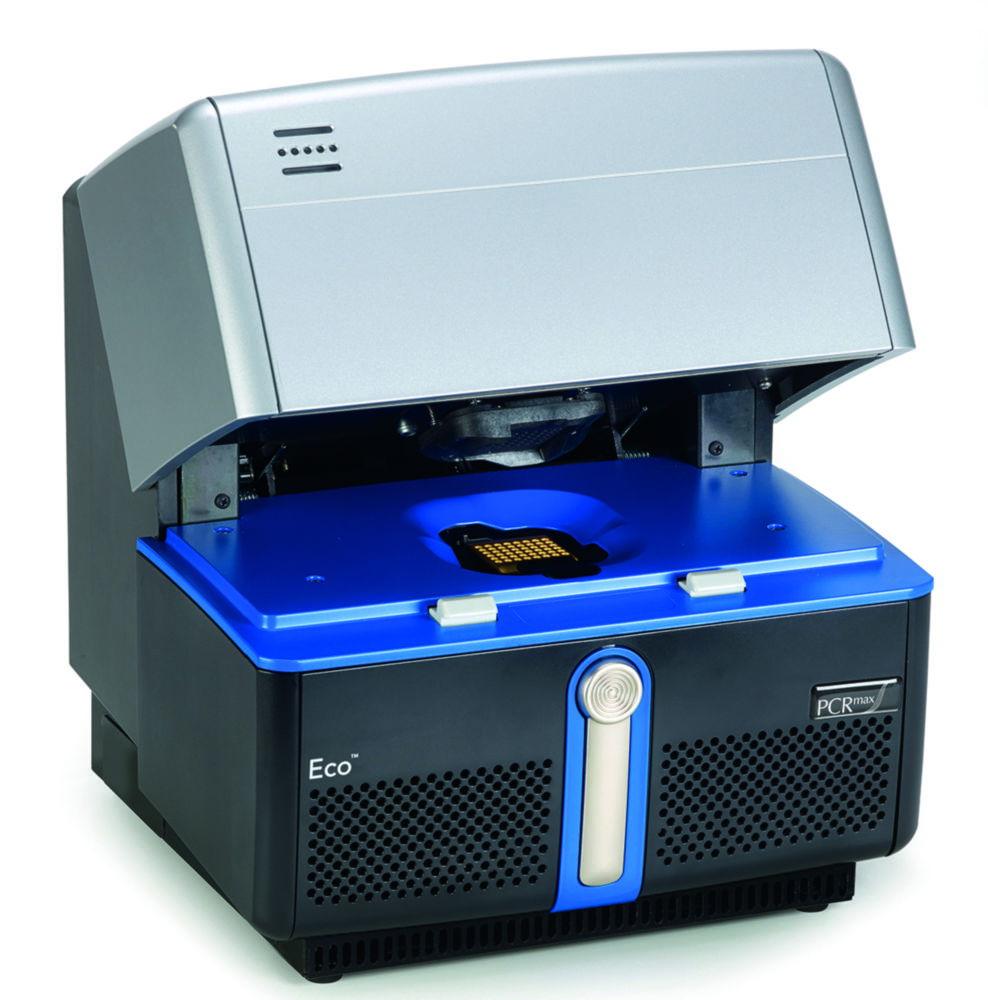

Cole-Parmer PCRmax Eco 48 Real-Time qPCR System (100–240 VAC)

Specifications

HS Code #
84798997
Depth
310 mm
Dimensions (WxDxH)
345 x 310 x 320 mm
Power supply frequency
50/60 Hz
Height
320 mm
Max. temperature
100 °C
Max. voltage
240 V
Min. temperature
30 °C
Min. voltage
100 V
No. of exchangeable blocks
1
Power supply
100 ... 240 V, 50/60 Hz

NZ $57821.09

Inc. GST

Available soon

Product description

Cole-Parmer Real-Time qPCR System Eco 48 is a high-specification yet economically priced real-time thermocycler designed for rapid and accurate PCR analysis. Featuring an exceptional thermal block uniformity of ±0.1°C, the Eco 48 system ensures precise temperature control across all wells, optimizing reaction times and reducing reagent costs. This advanced system supports validated sample volumes as low as 5 µl and can complete 40 PCR cycles in as little as 15 minutes when optimized. The unique heating and cooling mechanism guarantees instant temperature uniformity across the 48-well block, eliminating the need for triplicate runs and delivering reliable results faster.

Key Features:

  • Brand: Cole-Parmer
  • Validated reaction volume: 5 to 20 µl per well
  • Temperature Uniformity: High temperature uniformity of ±0.1°C immediately after temperature changes
  • Fast cycling: 40 cycles in 40 minutes (down to 15 minutes optimized)
  • Accuracy: Genotyping in just 4 minutes with over 99% accuracy
  • Risk Reduction: Patented Adaptive LED Control minimizes optical artifacts and prevents premature detector saturation
  • Optical Control: Dual LED excitation wavelengths (452-486 nm & 542-582 nm)
  • Filtration: Four emission filters covering 505-705 nm for comprehensive detection
  • Measurement Accuracy: Data collection across all filters and wells for maximum accuracy
  • qPCR Discrimination: Distinguishes between 5,000 and 10,000 template copies with 99% confidence

Additional Benefits:

  • 48-well block with size efficiency—1/8 size of standard 96-well plates
  • MIQE compliant for reliable, reproducible results
  • Compatibility with 400+ analyte-specific qPCR reagent kits
  • No calibration required for commonly used dyes (SYBR®, FAM™, HEX™, ROX™, Cy®5)
  • Supports additional dyes within filter wavelength range without extra calibration
  • Unlimited software license included
  • 2-year manufacturer warranty for peace of mind

Scope of Supply:

  • Real-time PCR system Eco 48
  • EcoControl and EcoStudy software
  • USB stick
  • 50 plates
  • 50 plate seals
  • Power cable
  • Ethernet cable

With its innovative technology and user-friendly software, the Eco 48 system ensures researchers achieve consistent, reproducible results while reducing costs and workflow times, making it an excellent investment for modern laboratories.
