Representative Image

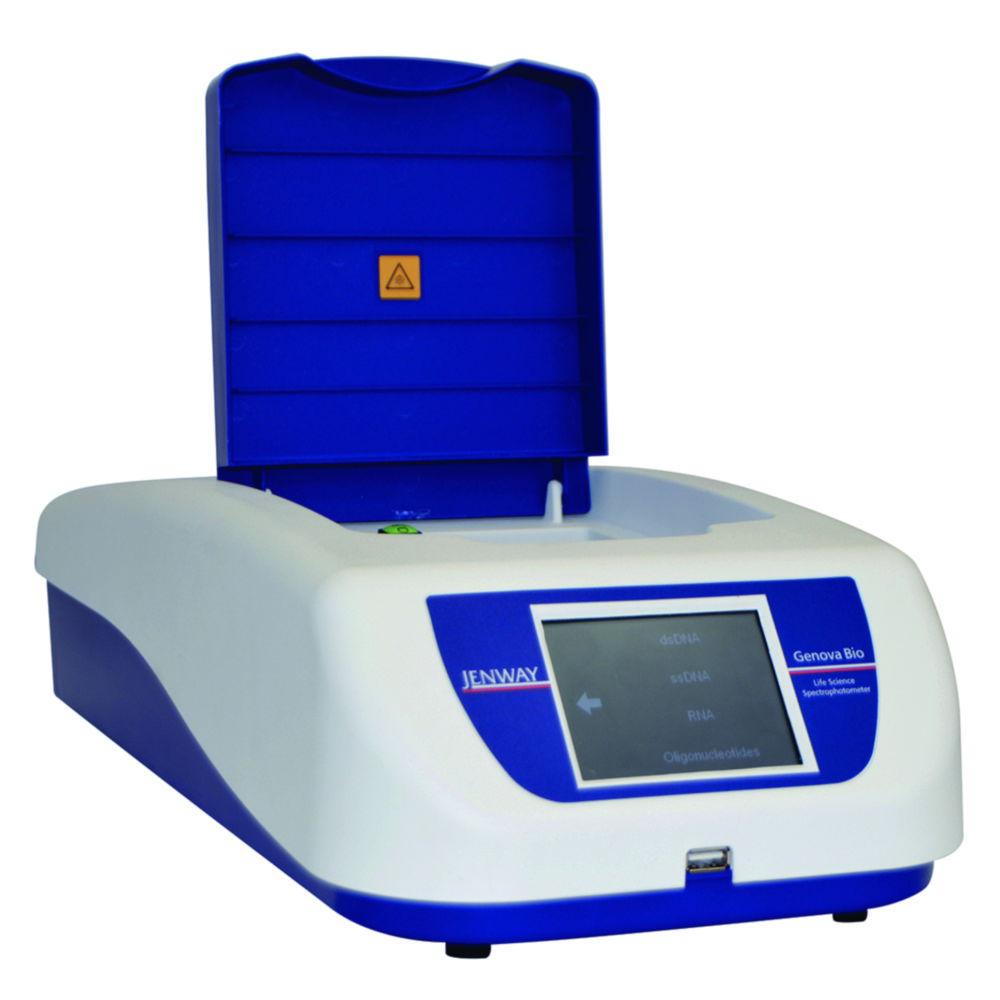

Cole-Parmer Jenway Genova Bio UV/Visible 72 Series Diode Array Scanning Spectrophotometer

Specifications

HS Code #
90273000
Accuracy
±2 nm
Accuracy
2 nm
Depth
422 mm
Dimensions (WxDxH)
212 x 422 x 120 mm
Power supply frequency
50/60 Hz
Height
120 mm
Illuminants
Xenon
Interfaces
2 x USB
Max. voltage
240 V
Measuring method
UV-VIS

NZ $13459.59

Inc. GST

Available soon

Product description

The Cole-Parmer Jenway Genova Bio UV/Visible 72 Series Diode Array Scanning Spectrophotometer is a compact and lightweight instrument specially designed for life science applications. Utilizing advanced diode array technology, it rapidly scans the entire wavelength range from 198 to 800 nm in less than 3 seconds, enabling fast and accurate absorbance measurements. The 5-inch color touchscreen with a user-friendly interface supports pre-programmed methods for dsDNA, ssDNA, RNA, oligonucleotides, as well as protein assays including Bradford, Lowry, Biuret, and bicinchoninic acid (BCA). It also includes a method for measuring the optical density of bacterial cultures. A large sample chamber facilitates easy loading and removal of samples, making it highly efficient for routine laboratory workflows.

Key Features:

  • Brand: Cole-Parmer Jenway
  • Wavelength Range: 198 to 800 nm
  • Scan Speed: Less than 3 seconds
  • Spectral Bandwidth: 3 nm
  • Measurement Modes: Photometrics, Concentration, Optical Density, Quantitation, Spectrum Scanning, Kinetics
  • Pre-programmed Methods: dsDNA, ssDNA, RNA, oligonucleotides, Bradford, Lowry, Biuret, BCA protein assays, bacterial culture optical density
  • Display: 5-inch color touchscreen with user-friendly interface
  • Sample Chamber: Large size for easy sample loading/removal
  • Connectivity: USB ports for data storage and printer connection
  • Power Supply: 230V AC, universal power supply with UK, EU, and US plugs
  • Dimensions: 212 x 422 x 120 mm
  • Weight: 2.8 kg
  • Warranty: 2 years (including xenon lamp)

Scope of Supply:

  • Genova Bio: Spectrophotometer, micro cuvette holder, universal power supply with UK, EU, and US plug, instruction manual
  • Genova Bio-DMV-BioCell: Spectrophotometer, micro cuvette holder, DMV BioCell cuvette, DNACON verification standard, universal power supply with UK, EU, and US plug, instruction manual

This spectrophotometer is ideal for laboratories requiring efficient and reliable absorbance measurements across a wide range of life science applications.

Accessories

Cuvette holders for Jenway spectrophotometers

ProductDescriptionForMfr#Part#AvailabilityPrice
Adjustable cuvette holder for 10 to 100 mm cuvette6300 / 6305 / 7200 / 7205 / 7410 / 7415 / 7415 nano / Genova Plus / Genova Nano / 7300 / 7305 / 7310 / 7315 / 761583056-809.775 430NZ $705.16
Heated holder for 10 x 10 mm cuvette7200 / 7205 / Genova Bio83056-776.283 460NZ $2485.16
Automatic 8-position cuvette holderGenova Plus / Genova Nano / 7300 / 7305 / 7310 / 731583070-316.254 445NZ $6296.20
Holder for 10 x 10 mm square cuvette and Ø 16/24 mm round cuvette6300 / 6305 / 7200 / 7205 / 7410 / 7415 / 7415 nano / Genova Plus / Genova Nano / 7300 / 7305 / 7310 / 7315 / 761583070-439.775 436NZ $2361.93
Holder for 10 x 10 mm cuvette6300 / 6305 / 7200 / 7205 / 7410 / 7415 / 7415 nano / Genova Plus / Genova Nano / Genova Bio / 7300 / 7305 / 7310 / 7315 / 761583070-419.775 161NZ $666.36
Micro cuvette holder with reduced aperture6300 / 6305 / 7200 / 7205 / 7410 / 7415 / 7415 nano / Genova Plus / Genova Nano / 7300 / 7305 / 7310 / 7315 / 761583056-829.775 437NZ $666.36
Automatic 8-position cuvette holder7410 / 7415 / 761583056-296.317 008NZ $6350.97

Frequently asked questions

It is a compact and lightweight instrument specially designed for life science applications. Utilizing advanced diode array technology, it rapidly scans the entire wavelength range from 198 to 800 nm in less than 3 seconds, enabling fast and accurate absorbance measurements. The 5-inch color touchscreen with a user-friendly interface supports pre-programmed methods for dsDNA, ssDNA, RNA, oligonucleotides, as well as protein assays including Bradford, Lowry, Biuret, and bicinchoninic acid (BCA). It also includes a method for measuring the optical density of bacterial cultures. A large sample chamber facilitates easy loading and removal of samples, making it highly efficient for routine laboratory workflows.
