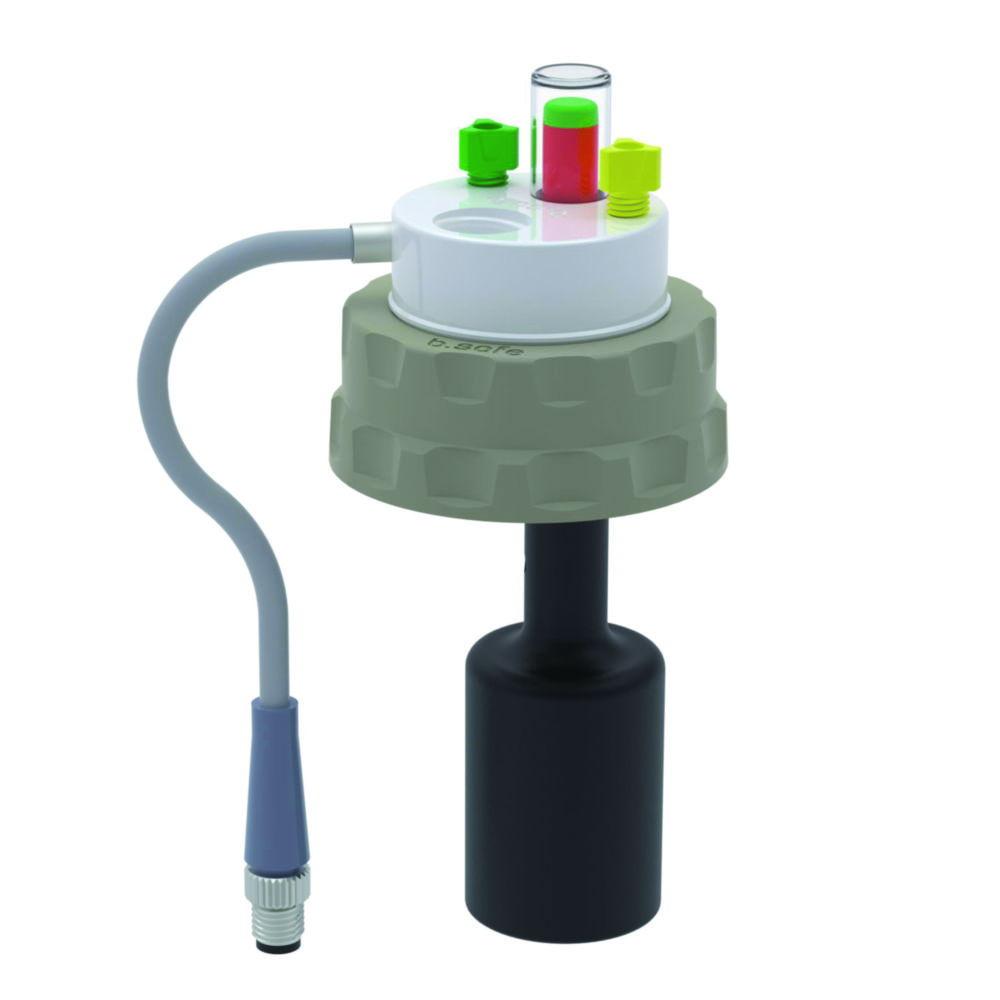

Bohlender Waste Cap S51 Electronic Fill-Level Control 2x UNF1/4", 1x GL14

Brand:Bohlender

Specifications

Capillary connections
2
Connection for exhaust filter
1
Material
PP
No. of blind plugs
1
No. of fittings
2 x 1,6/ 2,2/ 3,2 mm
Thread
S 51
UNSPSC
41115700

NZ $1074.85

Inc. GST

Available soon

Product description

The Bohlender Waste Cap S51 Electronic Fill-Level Control is designed for use in laboratory applications to monitor and control fill levels efficiently. Featuring two UNF1/4"" threads and one GL14 connection, this cap ensures secure attachment and precise control. With its electronic fill-level monitoring, it provides reliable and automated waste management solutions, reducing the need for manual checks.

Key Features:

  • Brand: Bohlender
  • Material: High-quality durable material for reliable performance
  • Fill-Level Control: Electronic fill-level monitoring for automatic waste management with a permanently mounted 400 mm cable for connection to the b.safe display
  • Thread Connections: 2x UNF1/4"" and 1x GL14
  • Insert: Screw cap with free movable PTFE insert
  • Connection Options: For connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm
  • Visual Monitoring: Red pin for visual fill-level indication
  • Additional Compatibility: A b.safe exhaust air filter can be screwed into the GL14 thread (filter not included)
  • Application: Ideal for laboratories requiring efficient waste control and monitoring
  • Packaging: Sold individually

Scope of Supply:

  • Fittings (UNF 1/4“)
  • Blind fittings (UNF 1/4“)

This waste cap offers a comprehensive solution for automated and visual fill-level control, ensuring safer and more efficient waste management in laboratory environments. Its durable construction and versatile connectivity make it a reliable choice for modern laboratory setups.

Downloads

Accessories

Exhaust Filter, PP

ProductMaterialFilter sizeMfr#Part#AvailabilityPrice
PPSM 506-016.313 839In stockNZ $280.69
PPMM 506-026.313 840In stockNZ $381.10
PPLM 506-036.313 841In stockNZ $488.36

Hose connectors for Waste Caps

ProductMaterialLengthMfr#Part#AvailabilityPrice
PP45 mmM 503-014.681 618NZ $38.80
PTFE45 mmM 503-054.681 619NZ $75.31
PP30 mmM 503-084.681 620NZ $36.51
PP32 mmM 503-094.681 621NZ $31.95
PP23 mmM 503-104.681 622NZ $31.95
PP26 mmM 503-114.681 623NZ $31.95
PP26 mmM 503-124.681 624NZ $31.95
PP30 mmM 503-134.681 625NZ $31.95
PP36 mmM 503-144.681 626NZ $31.95
PTFE45 mmM 503-154.681 627NZ $79.87
PP40 mmM 503-164.681 628NZ $31.95
PP48 mmM 513-014.681 643NZ $31.95
PP41 mmM 513-024.681 644NZ $31.95
PP30 mmM 518-014.681 647NZ $36.51

Frequently asked questions

It is designed for use in laboratory applications to monitor and control fill levels efficiently. Featuring two UNF1/4" threads and one GL14 connection, this cap ensures secure attachment and precise control. With its electronic fill-level monitoring, it provides reliable and automated waste management solutions, reducing the need for manual checks.
