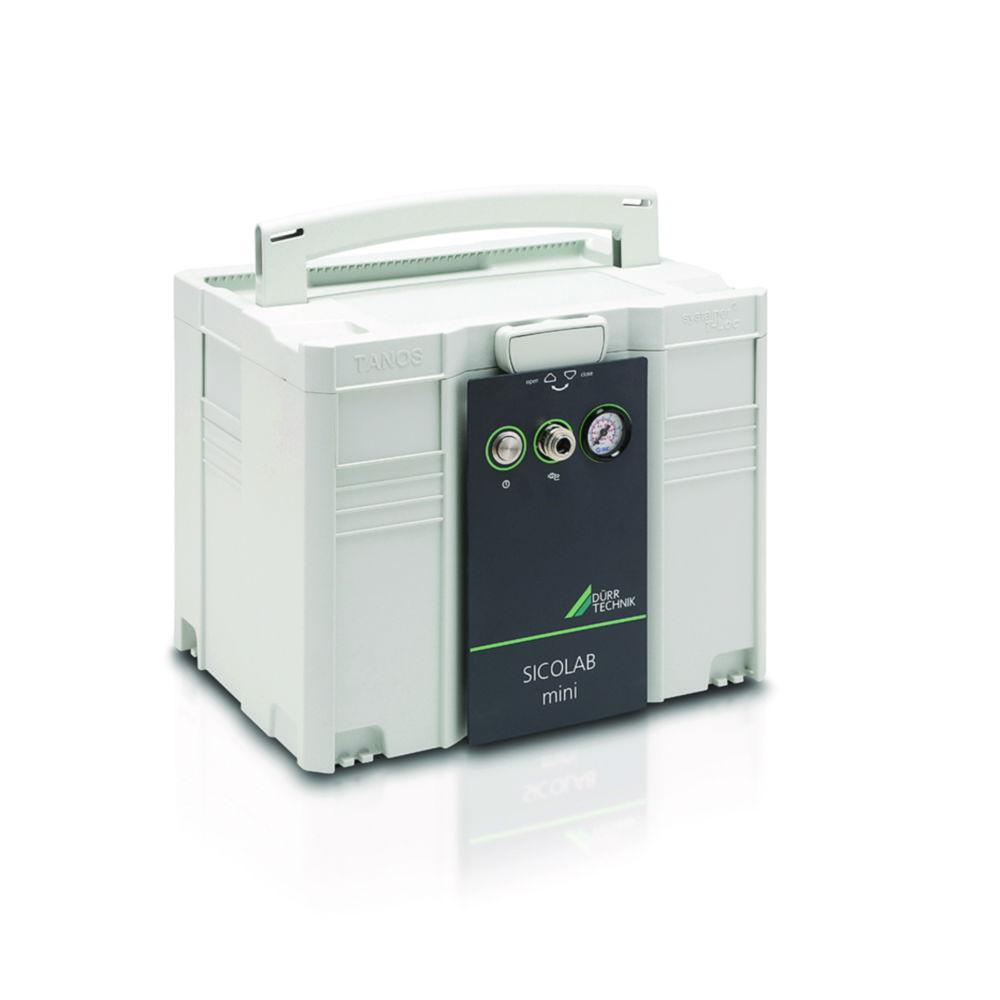

SICOLAB 038 mini 230 V
Representative image only

SICOLAB 038 mini 230 V

Sold by: John Morris Scientific NZ
Available Soon
Part #: 4.714 489Manufacturer #: 0715100033
Estimated shipping time:Contact us via live chat or via contact us page

NZ $6960.64

See the available (1) variant product
Product overview
Compact, soundproofed compressor for use with compressed air in laboratories. The oil-free plug-and-play compressor unit with integrated carrying handle offers minimal maintenance and maximum flexibility. The SICOLAB mini is equipped with a 2 l pressure receiver, automatic condensate drain, electromagnetic start-up relief, and an operating hours meter.

  • Very smooth start-up

  • Extremely quiet

  • Maintenance-free except for filter replacement

  • Compressed air connection via quick coupling directly in the housing

  • Oil-free compressor aggregate

  • Air receiver with internal coating

  • Pressure reducer

  • Pressure switch

  • Pressure gauge readable from the outside

  • Safety valve

  • On/off switch with fuse
Product Specifications
  • HS Code #84143020
  • Depth347 mm
  • Dimensions (WxDxH)396 x 347 x 343 mm
  • Flow rate20 l/min
  • Power supply frequency50/60 Hz
  • Height343 mm
  • IP codeIP 20
  • Max. pressure7 bar
  • Max. voltage230 V
  • Noise level50 db(A)
  • Power supply230 V, 50/60 Hz
  • Pressure7 bar
  • Rated capacity0.34 kW
  • TypeSICOLAB 038 mini
  • Type of auxiliary energyMains connection
  • Weight16 kg
  • Width396 mm
