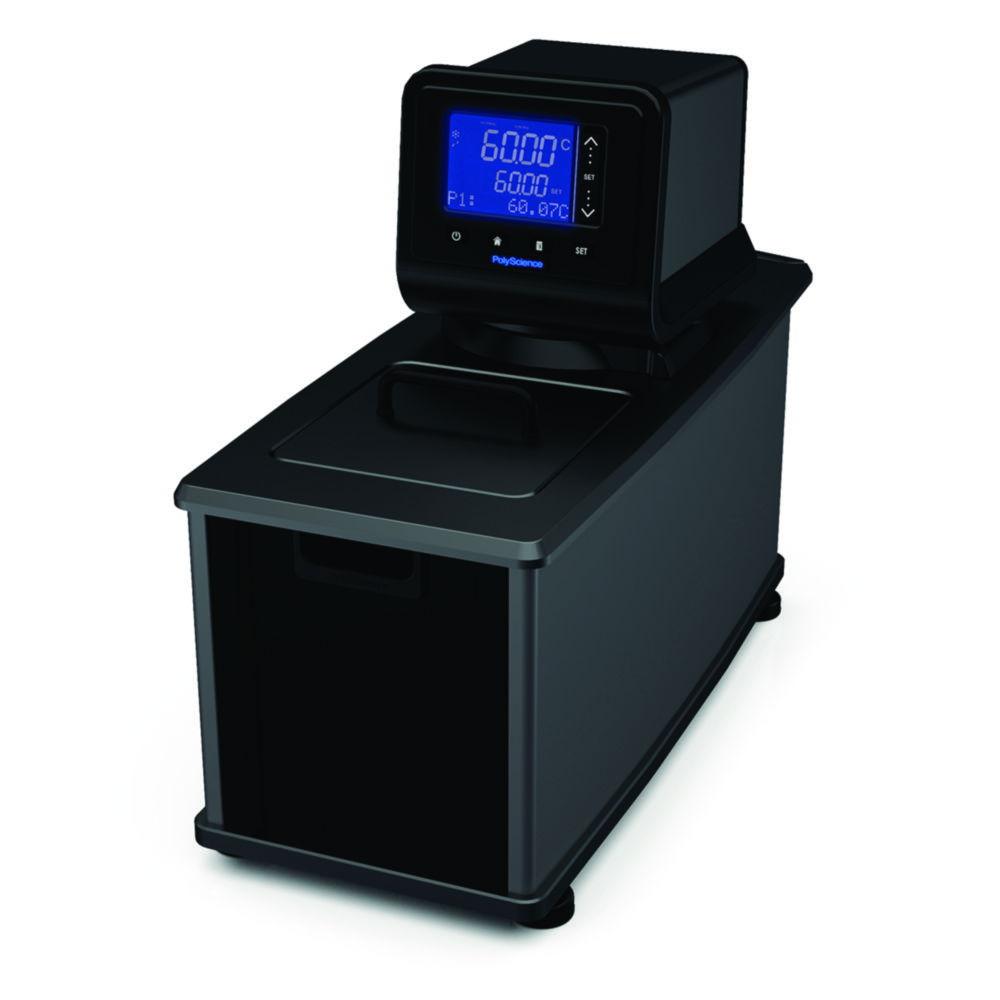

Circulator 28L, Advanced Digital heated, +10...+200°C, 240V, 50Hz
Sold by: John Morris Scientific NZ
Available Soon
Part #: 4.658 637Manufacturer #: AD28H200-A12E
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
- Intuitive 3.75" (9.5 cm) display with touch-pad control
- LidDock™ lid holder
- DuraTop™, precision-molded phenolic bath top resists laboratory chemicals
- Large bath opening and drain
- Easy hook-up of fluid connections
- Intuitive setup and operation, featuring multi-language help and screen prompts
- 4 languages: French, German, Spanish, English
- Swivel 180™ Rotating Controller
- Variable speed pump with open- and closed-loop external circulation capability
- On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485 and external temperature probe
- On-screen prompts
- Automatic performance optimization and specific heat tuning
- Single-point calibration capability
Product Specifications
- HS Code #84198998
- Bath depth140 mm
- Depth opening359 mm
- Opening (WxD)314 x 359 mm
- Ext. dim. (WxDxH)672 x 457 x 422 mm
- Ext. depth457 mm
- Ext. height422 mm
- Ext. width672 mm
- Power supply frequency50 Hz
- Heating capacity2.2 kW
- Max. delivery pressure0.25 bar
- Max. suction capacity12.2 l/min
- Max. temperature200 °C
- Max. voltage240 V
- Max. volume bath28 l
- Min. temperature+10 °C
- Power supply240 V, 50 Hz
- Temperature stability±0,01 °C
- TemperatureRT
- TemperatureRT+10 ... 200 °C
- Type of auxiliary energyMains connection
- Type of displayLCD-Touch
- Volume bath28 l
- Width opening314 mm
- With lidYes
