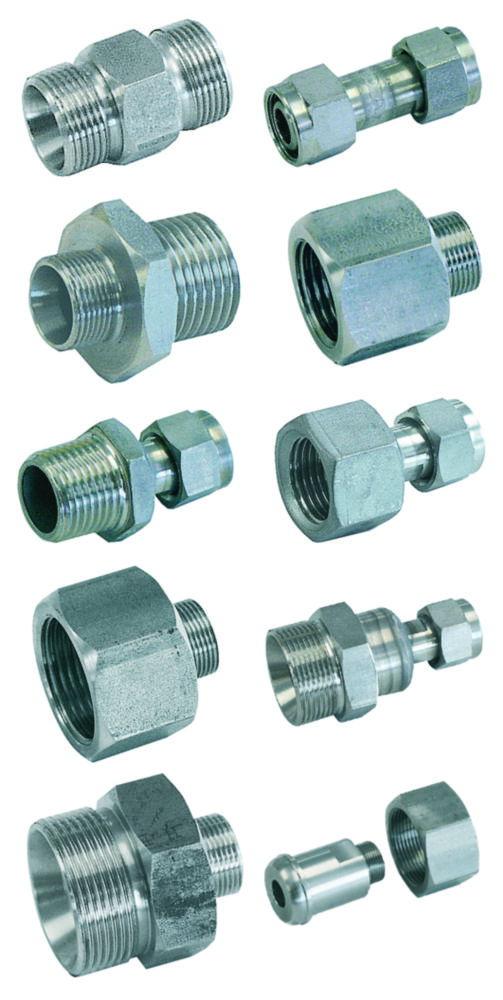

Peter Huber Adapter M24x1.5AG Male on Rp 1/2IG

The Peter Huber 9243 is a precision-engineered metric-to-pipe thread adapter designed to facilitate a high-performance transition in professional thermoregulation circuits. This adapter features an M24x1.5 male threaded connection on one side and an Rp 1/2" parallel internal pipe thread (female) on the other. It is specifically developed to bridge Huber’s metric hardware with industrial or laboratory components that utilize the 1/2-inch Whitworth parallel pipe standard. Machined from high-grade, thermally stable metal, the 9243 is built to withstand the mechanical stresses and temperature fluctuations typical of Huber Unistat and CC-series systems.

Key Features:

• Brand: Peter Huber
• Thread Type A: M24x1.5 Male (Standard metric connection for medium-capacity units)
• Thread Type B: Rp 1/2" Female (Parallel internal pipe thread per ISO 7-1)
• Material: Durable, corrosion-resistant metallic construction
• Application: Connects M24 female components (like hoses or manifolds) to Rp 1/2" male pipes or fittings
• Thermal Range: Rated for the full operating spectrum of Huber high-performance systems
• Pressure Rating: Optimized for high-pressure circulation loops in laboratory and pilot plant environments
• Design: Compact and robust one-piece design with a hexagonal section for easy installation

This adapter is essential for technical configurations where European-manufactured cooling and heating units must interface with plumbing that follows the Rp/R thread standards. The Rp parallel internal thread is engineered to provide a pressure-tight seal when mated with a corresponding tapered (R) male thread. This ensures a secure, leak-free connection that maintains the flow integrity required for precise and responsive temperature control.

Frequently Asked Questions

1. What is an Rp 1/2" thread?
Rp 1/2" is a 1/2-inch parallel internal (female) pipe thread. Unlike G-threads, which rely on a flat gasket, Rp threads are designed to form a seal within the thread itself when used with a tapered R male thread and appropriate sealant.

2. Should I use thread sealant with this adapter?
Yes. For the Rp 1/2" female side, it is recommended to use a high-temperature PTFE tape or liquid sealant to ensure a leak-proof connection, especially when mating with a tapered male pipe thread.

3. Why use an M24 male connection?
This adapter is typically used when you have a component, such as an insulated metal hose or a manifold port, that features an M24x1.5 female swivel nut. The male end of the 9243 screws into that nut to provide a 1/2-inch pipe interface.

4. Does this adapter restrict flow for my Unistat?
The internal bore is designed to be as non-restrictive as possible. While every fitting adds a minor amount of resistance, the 9243 is engineered to preserve the high flow rates necessary for efficient heat transfer.

5. Is this adapter compatible with silicone oils?
Yes. The metallic construction is fully compatible with all common Huber heat transfer fluids, including silicone-based SilOils, water-glycol, and synthetic media like DW-Therm.
