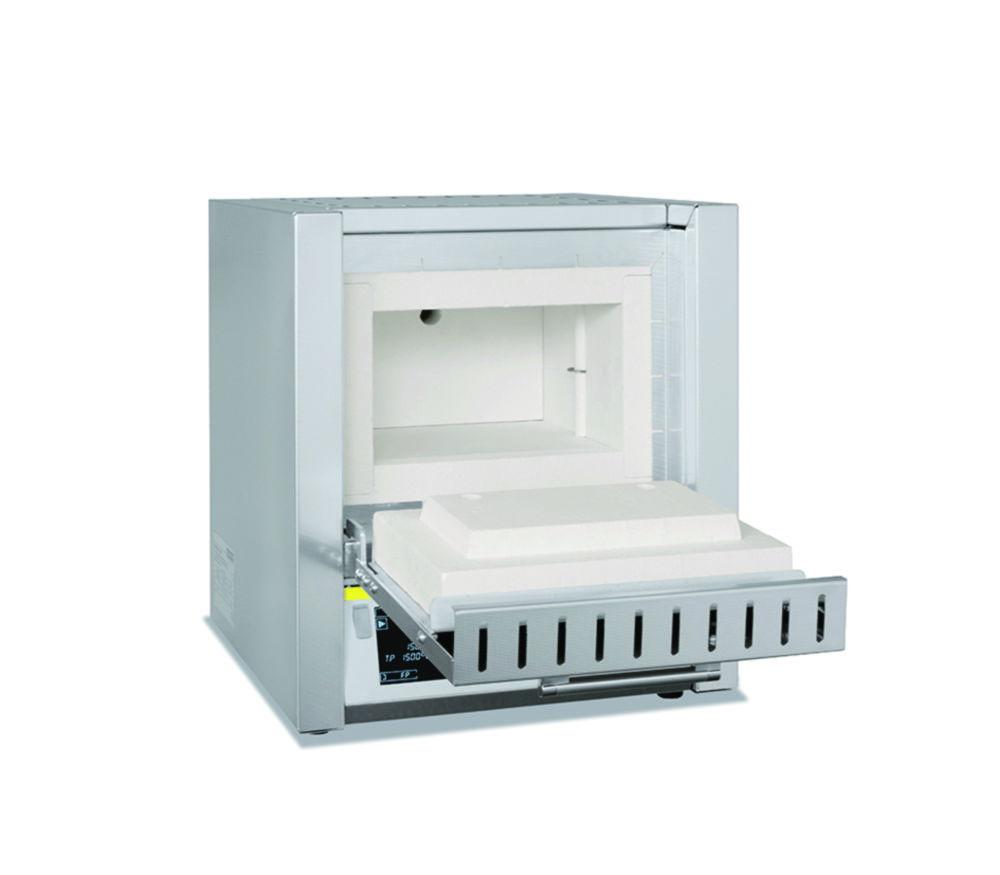

Nabertherm Muffle Furnace L 5/11/C550 with Controller
Sold by: John Morris Scientific NZ
Available Soon
Part #: 9.764 505Manufacturer #: L-055K1AO
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Nabertherm Muffle Furnace L 5/11/C550 with Controller is designed for reliable high-temperature heating applications in laboratory environments. Built with durable ceramic heating plates and integrated heating wire, this furnace delivers efficient and consistent thermal performance while supporting easy maintenance and dependable day-to-day operation.
Key Features:
- Brand: Nabertherm
- Type: Muffle furnace
- Model: L 5/11/C550
- Heating System: Ceramic heating plates with integrated heating wire
- Protection: Splash-protected and exhaust-protected heating elements
- Design: Heating from two sides and flap door that can be used as a work platform
- Maintenance: Easy-to-replace heating plates
- Application: Suitable for laboratory high-temperature heating and thermal processing
- Packaging: Sold individually
This Nabertherm muffle furnace is a practical solution for laboratories requiring efficient heating, dependable performance, and a durable design for routine high-temperature applications.
Product Specifications
- HS Code #85141980
- Depth int.170 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)385 x 390 x 460 mm
- Ext. depth390 mm
- Ext. height460 mm
- Ext. width385 mm
- Power supply frequency50/60 Hz
- Height int.130 mm
- Int. Dim. (WxDxH)200 x 170 x 130 mm
- Int. width200 mm
- Max. temperature1100 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity5 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity2400 W
- TypeL 5/11/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight30 kg
Downloads
- Nabertherm Laboratory Muffle Furnaces Operating InstructionsDownload
