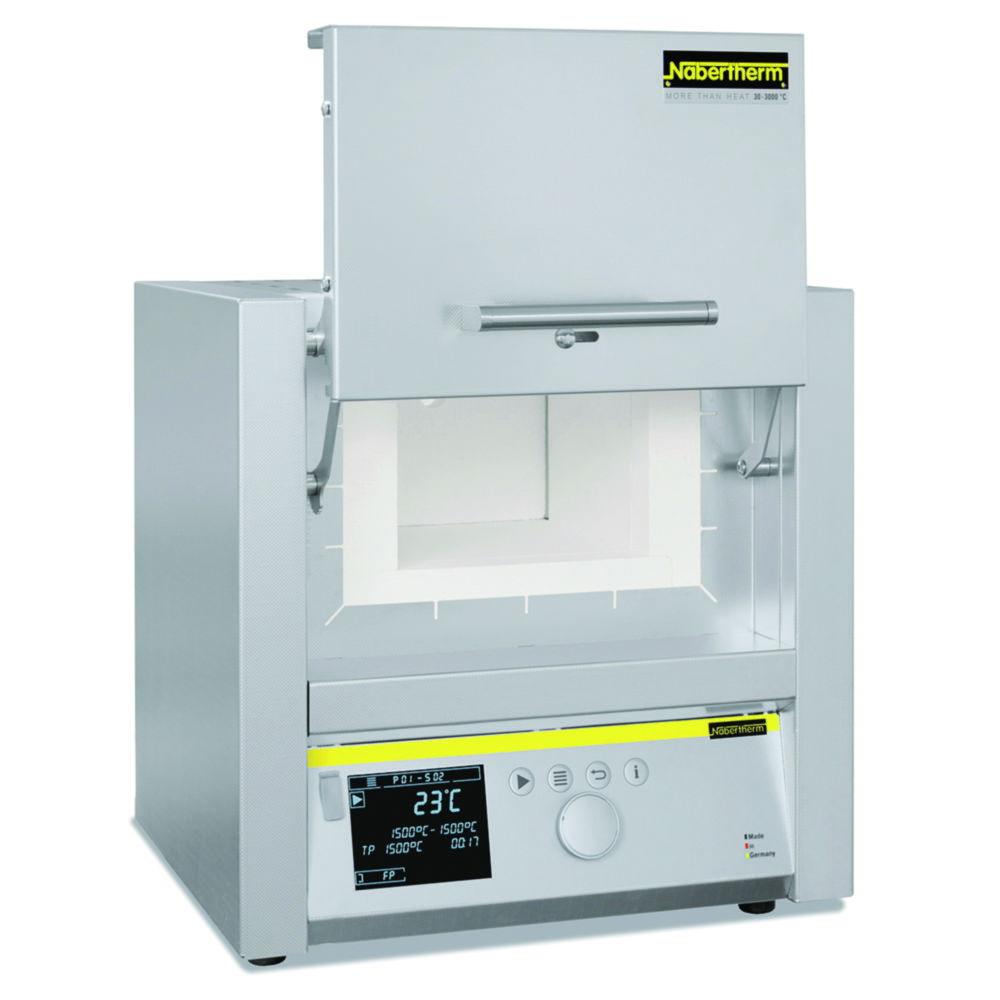

Nabertherm LT 60/12/B510 Muffle Furnace, with Lift Door and B510 Controller
Product overview
The Nabertherm LT 60/12/B510 Muffle Furnace is designed to deliver precise and reliable heat treatment results with a maximum temperature of 1200°C. Featuring a 60-liter chamber, this furnace is equipped with a lift door for safe and easy access. The B510 controller provides accurate temperature regulation, ensuring high-quality performance across a range of laboratory applications, including sintering, ash determination, and material testing.
Key Features:
- Brand: Nabertherm
- Maximum Temperature: 1200°C
- Capacity: 60 liters
- Controller: B510 for reliable temperature control
- Door Type: Lift door for easy access to the chamber
- Applications: Ideal for sintering, ash determination, and various high-temperature lab processes
- Performance: Precision heat treatment with uniform temperature distribution
The Nabertherm LT 60/12/B510 Muffle Furnace offers a durable and precise solution for laboratory heat treatment, sintering, and testing, making it a trusted choice for demanding applications.
Frequently Asked Questions
1. What is the Nabertherm LT 60/12/B510 Muffle Furnace, with Lift Door and B510 Controller used for?
It is designed to deliver precise and reliable heat treatment results with a maximum temperature of 1200°C. Featuring a 60-liter chamber, this furnace is equipped with a lift door for safe and easy access. The B510 controller provides accurate temperature regulation, ensuring high-quality performance across a range of laboratory applications, including sintering, ash determination, and material testing.
2. Is the Nabertherm LT 60/12/B510 Muffle Furnace, with Lift Door and B510 Controller suitable for sintering, ash determination, and various high-temperature lab processes?
Yes. It is designed for sintering, ash determination, and various high-temperature lab processes, and offers a maximum temperature of 1200°C and a capacity of 60 liters to support this kind of work.
3. What maximum temperature and capacity does the Nabertherm LT 60/12/B510 Muffle Furnace, with Lift Door and B510 Controller have?
It has a maximum temperature of 1200°C and a capacity of 60 liters, and is supplied under manufacturer part number L-606H2DL.
4. What controller and door type does the Nabertherm LT 60/12/B510 Muffle Furnace, with Lift Door and B510 Controller offer?
It offers B510 for reliable temperature control, lift door for easy access to the chamber, precision heat treatment with uniform temperature distribution and ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace.
5. How does the Nabertherm LT 60/12/B510 Muffle Furnace, with Lift Door and B510 Controller compare with the Snoltherm Muffle Furnace SNOL 8.2/1100 LSM01 (Omron E5CC Controller) UK version from SNOL?
For sintering, ash determination, and various high-temperature lab processes, the Nabertherm model is the better choice, offering a maximum temperature of 1200°C and a capacity of 60 liters. The SNOL model offers omron E5CC for precise temperature control, UK version with suitable power specifications and spacious muffle chamber for larger sample loads as an alternative, while the Nabertherm model's B510 for reliable temperature control and lift door for easy access to the chamber help make it a strong fit for sintering, ash determination, and various high-temperature lab processes.
Product Specifications
- HS Code #85141980
- Depth int.490 mm
- Type of doorLift door
- Ext. dim. (WxDxH)610 x 705 x 660 mm
- Ext. depth705 mm
- Ext. height660 mm
- Ext. width610 mm
- Power supply frequency50/60 Hz
- Height int.330 mm
- Int. Dim. (WxDxH)380 x 490 x 330 mm
- Int. width380 mm
- Max. temperature1200 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity60 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50/60 Hz
- Rated capacity9800 W
- TypeLT 60/12/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight83 kg
