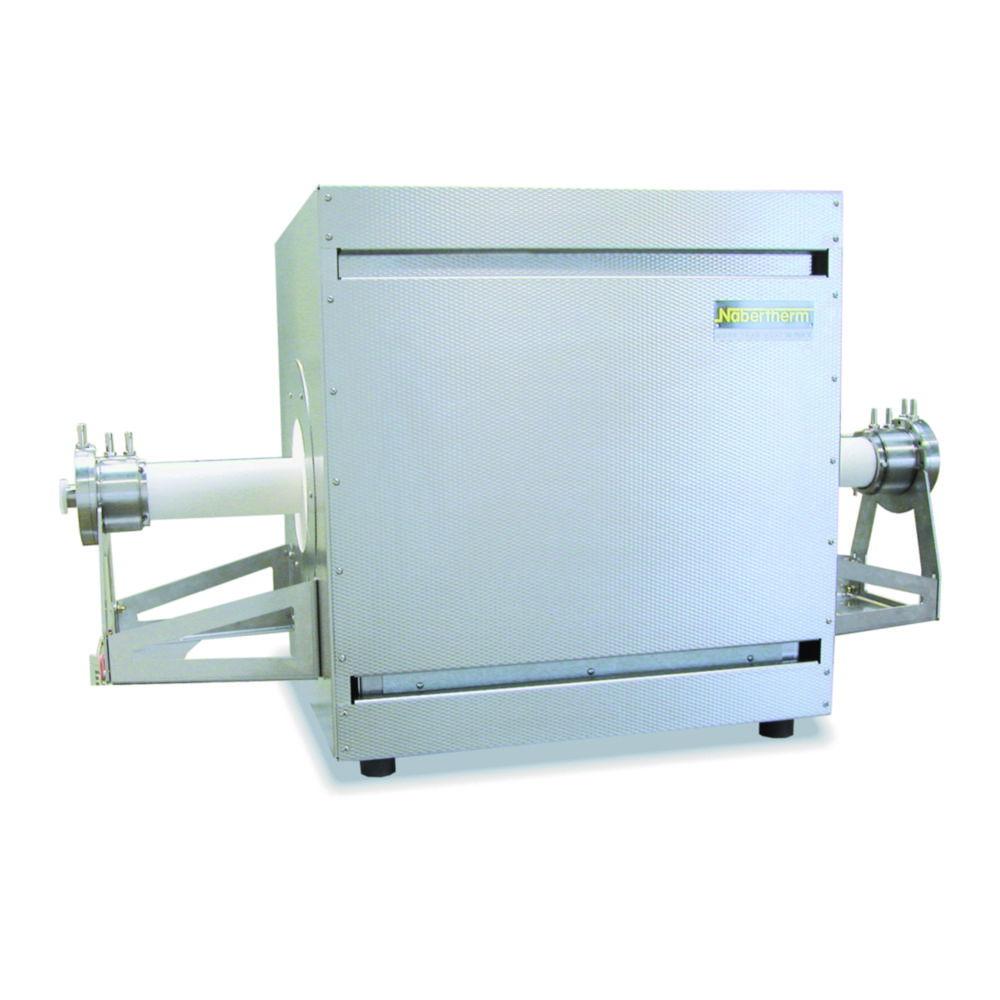

Nabertherm High-Temperature Tube Furnace RHTV 50/150/18/P570, Max 1800°C, Heated Length 150mm, Tube Diameter 50mm, 1 Zone, P570 Controller
Product overview
The Nabertherm High-Temperature Tube Furnace RHTV 50/150/18/P570 is built for precision thermal processes with a maximum temperature of 1800°C. Featuring a compact 150mm heated length and a 50mm tube diameter, it is perfect for applications such as sintering, heat treatment, and material testing. The furnace is equipped with the P570 controller, ensuring accurate temperature regulation for high-performance and reliability across various high-temperature applications.
Key Features:
- Brand: Nabertherm
- Model: RHTV 50/150/18/P570
- Temperature Range: Maximum 1800°C for precise high-temperature processing
- Heated Length: 150mm, ideal for small-scale thermal applications
- Tube Diameter: 50mm, perfect for processing small samples
- Controller: P570 for consistent and reliable temperature control
- Applications: Suitable for high-temperature sintering, material testing, and heat treatment
This Nabertherm High-Temperature Tube Furnace RHTV 50/150/18/P570 combines superior temperature control with a compact design, offering a robust solution for precision high-temperature applications in laboratories and industrial settings.
Frequently Asked Questions
1. What is the Nabertherm High-Temperature Tube Furnace RHTV 50/150/18/P570, Max 1800°C, Heated Length 150mm, Tube Diameter 50mm, 1 Zone, P570 Controller used for?
It is built for precision thermal processes with a maximum temperature of 1800°C. Featuring a compact 150mm heated length and a 50mm tube diameter, it is perfect for applications such as sintering, heat treatment, and material testing. The furnace is equipped with the P570 controller, ensuring accurate temperature regulation for high-performance and reliability across various high-temperature applications.
2. Is this product suitable for high-temperature sintering, material testing, and heat treatment?
Yes. It is designed for high-temperature sintering, material testing, and heat treatment, and offers a heated length of 150mm, ideal for small-scale thermal applications and a tube diameter of 50mm, perfect for processing small samples to support this kind of work.
3. What heated length and tube diameter does this product have?
It has a heated length of 150mm, ideal for small-scale thermal applications and a tube diameter of 50mm, perfect for processing small samples.
4. What temperature range and controller does this product offer?
It offers maximum 1800°C for precise high-temperature processing, P570 for consistent and reliable temperature control, tmax 1600 °C, 1700 °C or 1800 °C and MoSi2 heating elements, mounted vertically for easy replacement.
Product Specifications
- HS Code #85141980
- Depth650 mm
- Dimensions (WxDxH)500 x 650 x 510 mm
- Power supply frequency50/60 Hz
- Height510 mm
- Length tube380 mm
- Length tube heated150 mm
- Max. ext. tube Ø50 mm
- Max. temperature1800 °C
- Max. voltage480 V
- Min. voltage380 V
- Power supply380 ... 480 V, 50/60 Hz
- Rated capacity5400 W
- TypeRHTV 50/150/18/P570
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight70 kg
- Width500 mm
