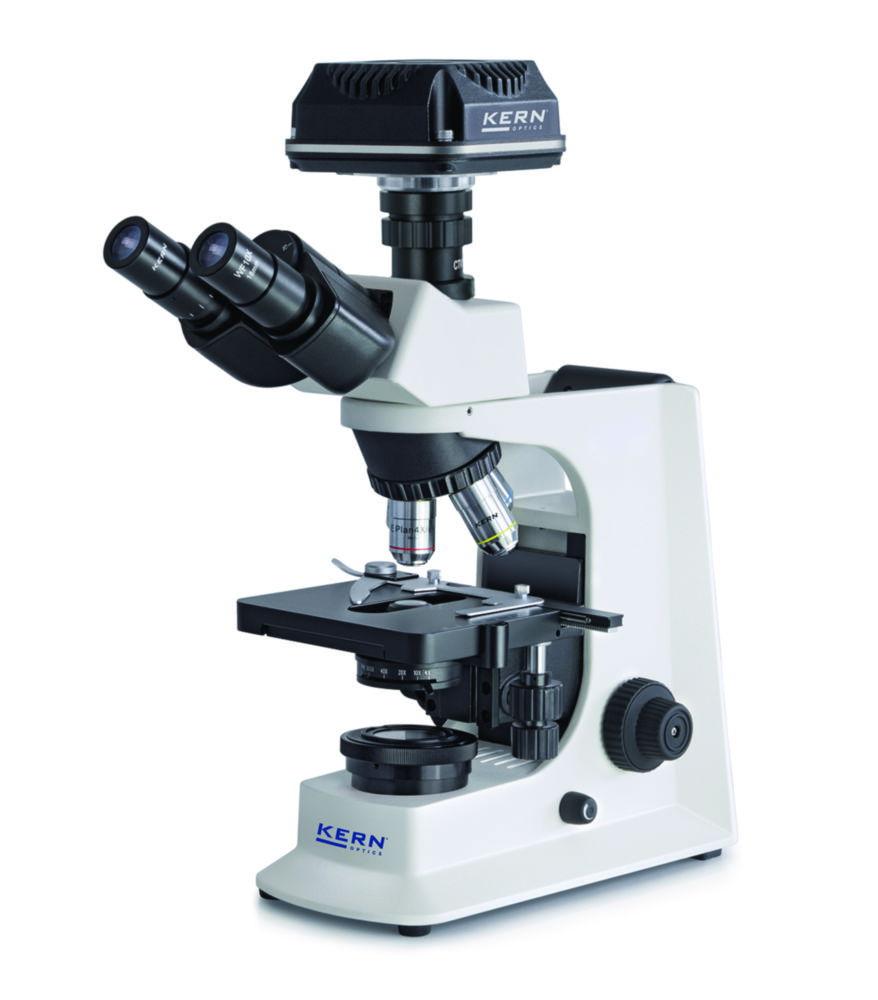

The Kern Compound Microscope is an advanced digital optical instrument designed for high-resolution viewing in laboratory, educational, and professional research environments. It offers objective magnifications of 4x, 10x, 40x, and 100x combined with a WF10x20 eyepiece, and features a 30° inclined, 360° rotatable tube for ergonomic use. The built-in 5.1 MPX digital camera with USB 3.0 interface enables high-quality image capture and transfer. Its 3W LED illumination system, ABBE 1.25 N.A. condenser with aperture diaphragm, and Koehler-capable lightfield configuration provide brilliant contrast and clarity, while coaxial coarse and fine focusing allow precise specimen adjustment.

Key Features:
<ul>
 <li>Brand: Kern</li>
 <li>Magnification: 4x, 10x, 40x, 100x objective lenses</li>
 <li>Eyepiece: WF10x20 for clear and comfortable viewing</li>
 <li>Tube: 30° inclined, 360° rotatable</li>
 <li>Focusing: Coaxial coarse and fine focusing</li>
 <li>Illumination: 3W LED light source with lightfield diaphragm</li>
 <li>Condenser: ABBE 1.25 N.A. with aperture diaphragm, Köhler-capable</li>
 <li>Diopter Adjustment: One-sided</li>
 <li>Camera: 5.1 MPX digital camera with USB 3.0 interface</li>
 <li>Application: Ideal for laboratory research, educational use, and professional analysis</li>
 <li>Packaging: Sold individually</li>
</ul>

Scope of Supply:
<ul>
 <li>Light microscope</li>
 <li>Digital camera</li>
 <li>C-Mount adapter</li>
 <li>Dust cover</li>
 <li>Eye cups</li>
 <li>Instruction manual</li>
</ul>

This compound microscope from Kern is a reliable and high-performance tool that combines advanced optics, ergonomic features, and digital imaging to support detailed analysis in demanding environments.

The Kern Compound Microscope offers 4/10/40/100 magnification, WF10x20 eyepiece, 3W LED light, and a 5.1 MPX camera with USB 3.0 interface for detailed observations.

Kern Compound Microscope 4/10/40/100; WF10x20; 3W LED 5.1 MPX Camera with USB 3.0 Interface

Compound microscope 4/10/40/100; WF10x20; 3W LED 5.1 mpx camera with USB 3.0 interface

Compound microscope 4/10/40/100; WF10x20; 3W LED 5.1 mpx camera with USB 2.0 interface_100239894

The Kern Compound Microscope is a complete digital solution for live investigations, designed for professional use in educational, clinical, and research environments. It features 4x, 10x, 40x, and 100x objective lenses paired with wide-field WF10x20 eyepieces for clear magnification, and a 30° inclined, 360° rotatable binocular tube for ergonomic viewing. The integrated 5.1 MPX digital camera with USB 2.0 interface allows real-time image capture, while the 3W LED illumination with lightfield diaphragm and Köhler-capable ABBE condenser ensures high-quality, well-contrasted visuals. Additional features include coaxial coarse and fine focusing, one-sided diopter adjustment, and a rust-free, easy-to-clean design.

Key Features:
<ul>
 <li>Brand: Kern</li>
 <li>Magnification: Objective lenses 4x, 10x, 40x, 100x</li>
 <li>Eyepieces: Wide-field WF10x20</li>
 <li>Tube: 30° inclined, 360° rotatable</li>
 <li>Focusing: Coaxial coarse and fine focusing</li>
 <li>Lighting: 3W LED illumination with lightfield diaphragm</li>
 <li>Condenser: ABBE 1.25 N.A. with aperture diaphragm, Köhler-capable</li>
 <li>Diopter Adjustment: One-sided</li>
 <li>Camera: Built-in 5.1 MPX digital camera with USB 2.0 connectivity</li>
 <li>Application: Suitable for educational, clinical, and research settings</li>
</ul>

Scope of Supply:
<ul>
 <li>Light microscope</li>
 <li>Digital camera</li>
 <li>C-Mount adapter</li>
 <li>Dust cover</li>
 <li>Eye cups</li>
 <li>Instruction manual</li>
</ul>

This advanced microscope from Kern combines high-quality imaging, ergonomic design, and digital integration to support precise observations and documentation in professional laboratory environments.

High-precision Kern compound microscope with 5.1 MPX camera, LED lighting, and USB—ideal for lab, clinical, and research imaging.

Kern Compound Microscope 4/10/40/100 with 5.1 MPX Camera & LED

Kern Compound Microscope 4/10/40/100; WF10x20; 3W LED 5.1 MPX Camera with USB 2.0 Interface

KERN & SOHN

Compound microscope 4/10/40/100; WF10x20; 3W LED 5.1 mpx camera with USB 2.0 interface

Kern Compound Microscope 4/10/40/100; WF10x20; 3W LED 5.1 MPX Camera with USB 2.0 Interface
